Water softener WATEX CMS30 TRIPLEX

Manufacturer: WATEX
Product code: CMS30T
Combination does not exist

WATEX CMS Triplex series equipment are continuous water softening systems intended for operation sites with high water consumption. The equipment is suitable for boiler houses, apartment buildings and factories. The equipment will purify the water not only from the water hardness creating salts, but also completely purify the water from the iron content (not exceeding certain values). During the regneration process, a reagent (NaCl, salt tablets) is consumed, which is used to regenerate the filtering material (ion exchange resins). The flsuhing water from this equipment can be discharged to biological WWTPs (wastewater treatment plants).

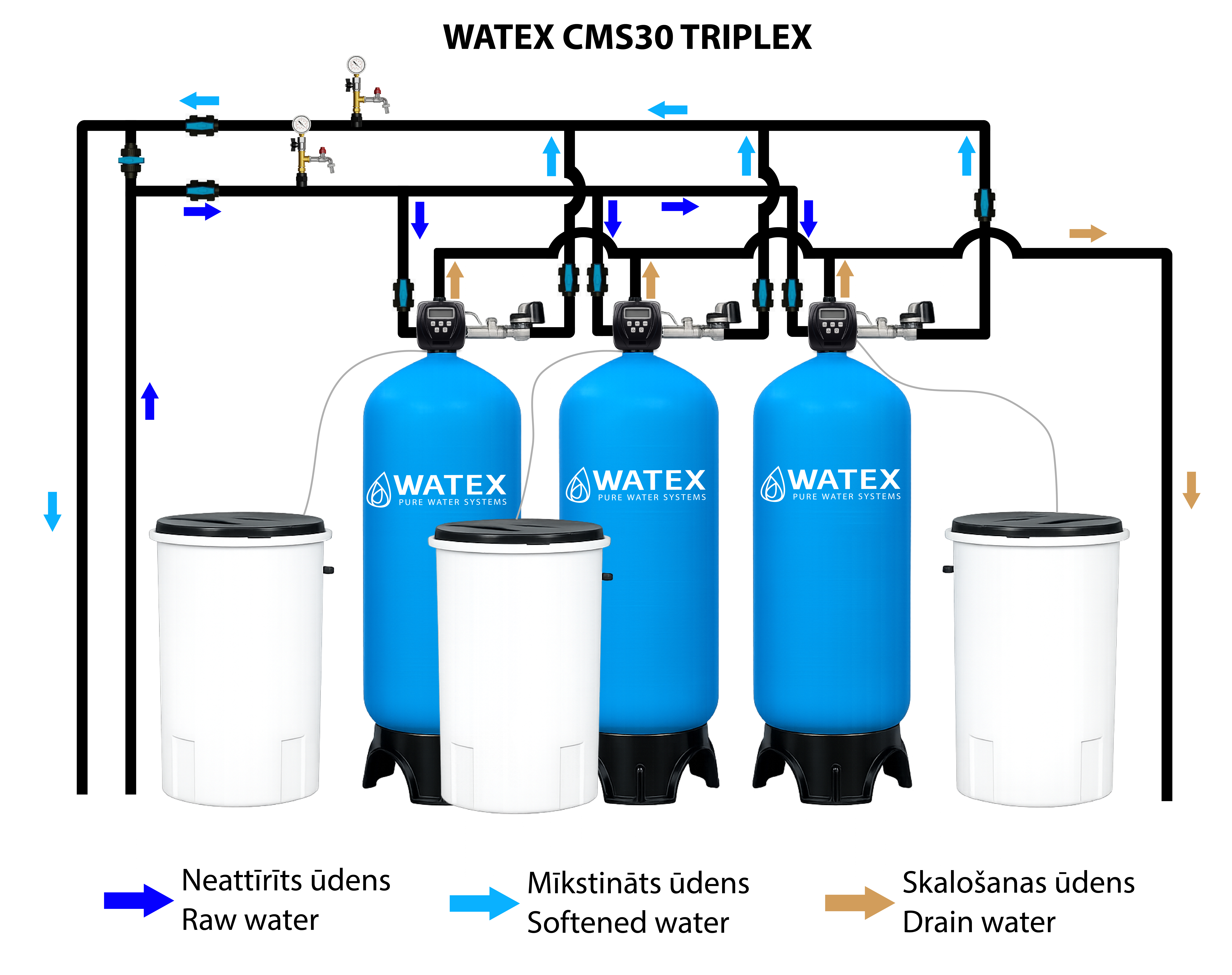

The WATEX CMS Triplex series kit consists of three filter tanks, three CLACK control valves, three two-way electric valves and three brine tanks. The filter tanks are filled with ion exchange resin (cation), which reduces water hardness and filters iron. The control valve automatically conducts regeneration based on water consumption and saves all information even in the event of a power failure. The brine tank is filled with a reagent salt tablets (NaCl) for resin regeneration. Depending on the amount of resin and the quality of the water, the equpment is programmed to have a certain water capacity between regenerations.

The equipment requires a connection to electricity (three sockets) as well as a sewer connection and an incoming/outgoing water pipeline with a minimum water pressure of 2.5 bar.

The equipment can be placed in damp rooms or in underground shafts made of grooves.

Recommendation! Before choosing a device, it is recommended to perform water testing to determine the chemical composition of the water.

Recommendation! It is preferable to install a mechanical water filter before the filters to ensure a longer service life of the equipment.

Show full description

Equipment technical parameters

Unit

Triplex Model

CMS 24

CMS 30

CMS 36

Flow rate* Qnom

m3 /h

13.5

25.5

37.5

Flow rate** Qmax

m3 /h

13.5

34.5

57.0

Maximum flow rate

m3 /h (l/s)

13.5 (3.75)

34.5 (9.6)

57.0 (15.8)

OIne filter tank capacity between regenerations

m3

41.0

64.0

75.0

Incoming water quality for calculation

Iron – 0,2mg/l; Water hardness – 6,0 mg-ekv/l

Amount of water for 1 regeneration***

liters

900

1400

1800

Salt consumption for 1 regeneration

kg

41.5

64.0

75.0

Minimum flow rate for rinsing

m3 /h

2.3

3.7

5.3

Salt tank size

liters

350

500

500

Diameter/ m

0.78

0.87

0.87

Tank size (diameter)

inches

24

30

36

m

0.61

0.76

0.91

Tank volume

liters

415

640

850

The amount of filtering material

liters

275

425

550

Equipment dimensions



Lenght (L)

m

2.83

3.28

3.73

Width (W)

m

1.69

1.93

2.08

Height (H)

m

2.00

2.10

2.10

Connection incoming/outgoing/drain

inches

1 ¼”/1¼”/1”

1 ½”/1 ½”/1¼”

2”/ 2”/1 ½”

Clack control valve



CI 1.25” NHVB x 2

CI 1.5” NHVB x 2

CI 2.0” NHVB x 2

Water treatment possibilities



Hardness, iron, ammonium, turbidity

Tank material



FRP (fiberglass)

Filtering material



Ion exchange resins RESINEX KW-8, quartz sand 1x3mm, 3x5 mm

Working pressure

bar

2-6

Electric Connection



220V, 50Hz, 1 phase

Electricity consumption

W

3W



* Filtration speed 25 BV/h

** Filtration speed 40 BV/h

*** Volume can multiply if incoming water quality changes





Weight kg

1.00
