Equipment characteristics:
WATER QUALITY PROBLEM

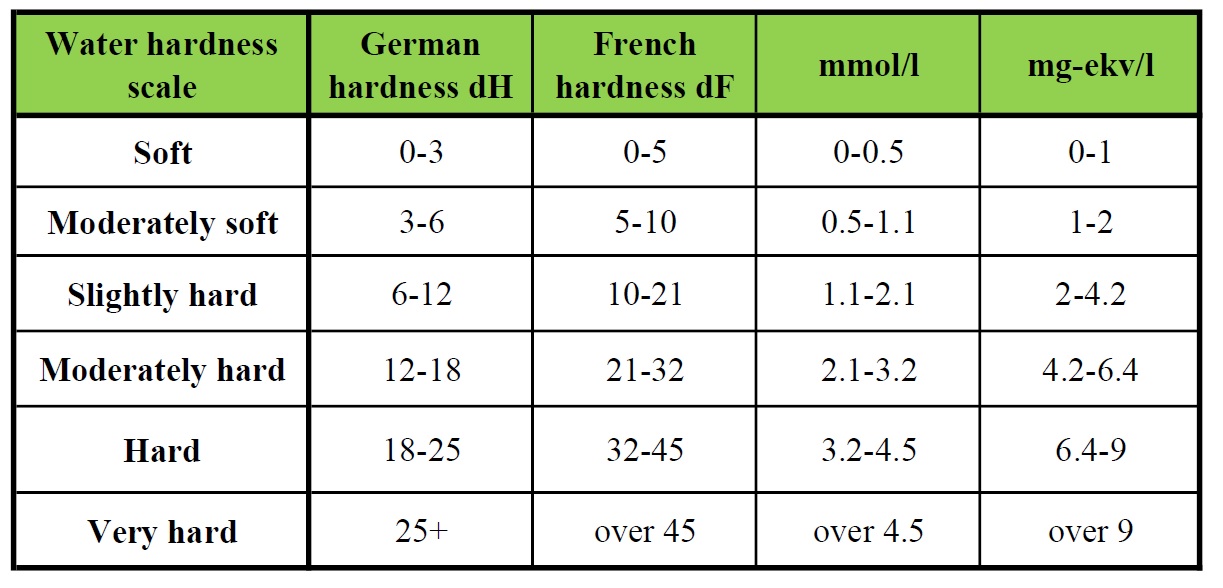

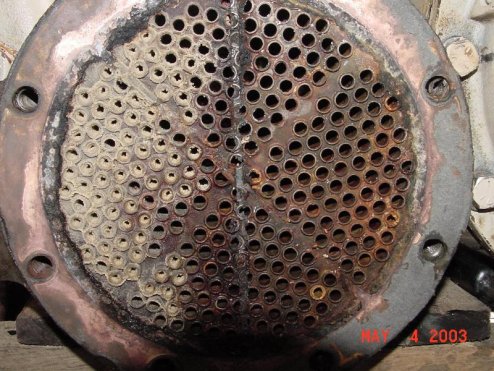

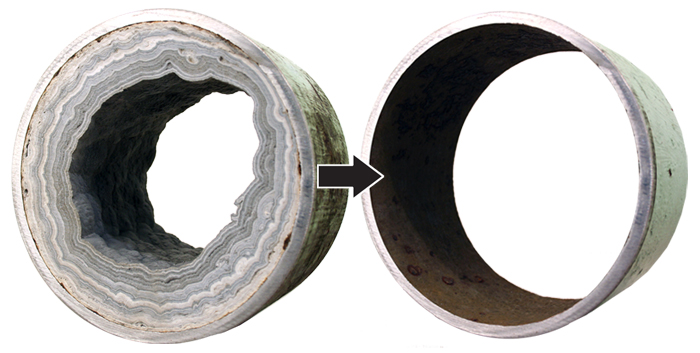

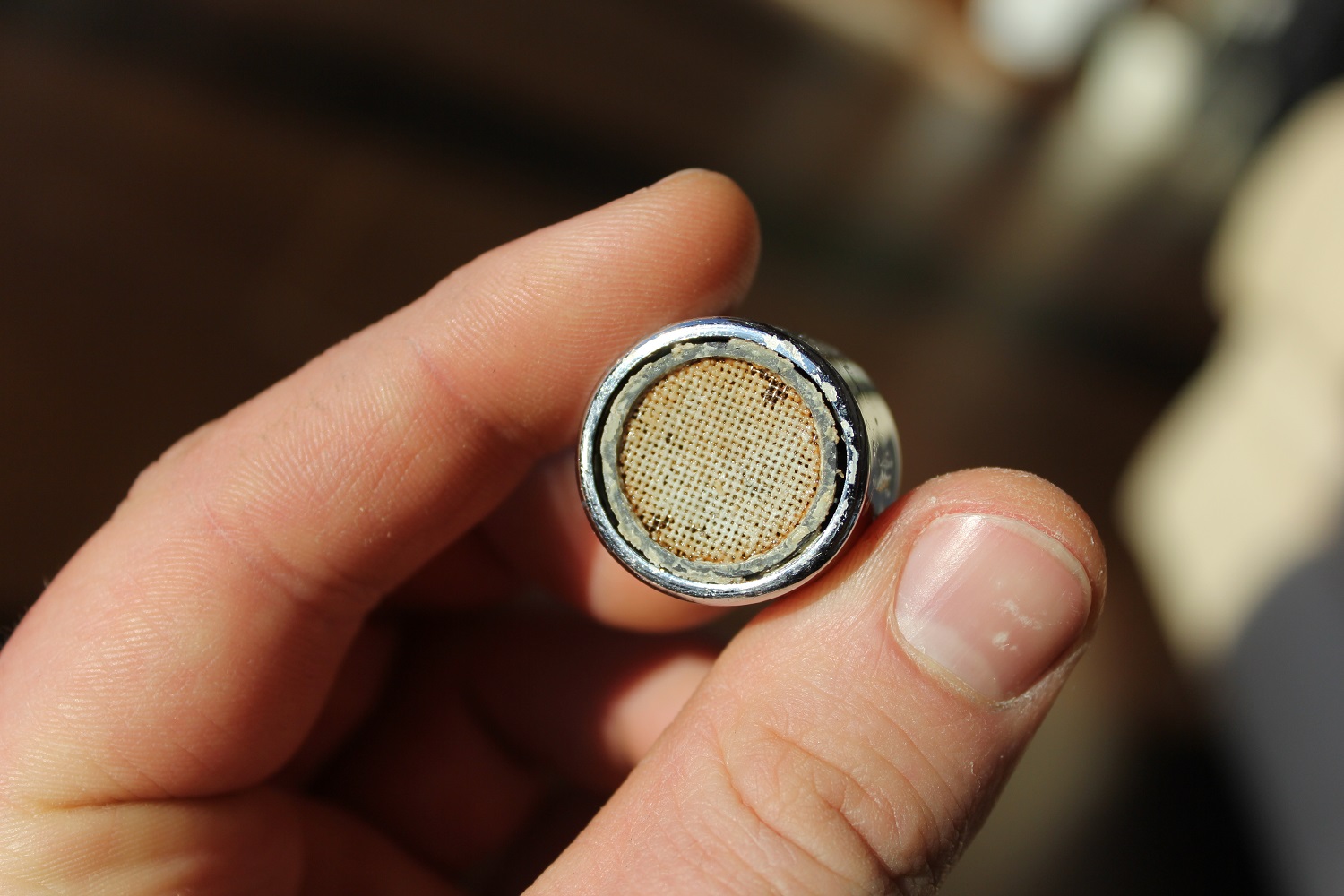

Water hardness is a set of natural properties of water related to the concentration of calcium and magnesium salts. Although hard water is not harmful to human health, hard water can affect various plumbing equipment, such as washing machines, boilers, dishwashers and pipes, creating precipitation in pipelines and especially on heating elements. Using hard water for washing laundry or cleaning requires more detergent. Water hardness can reduce lifetime of plumbing equipment and increase energy consumption.
SOLUTION

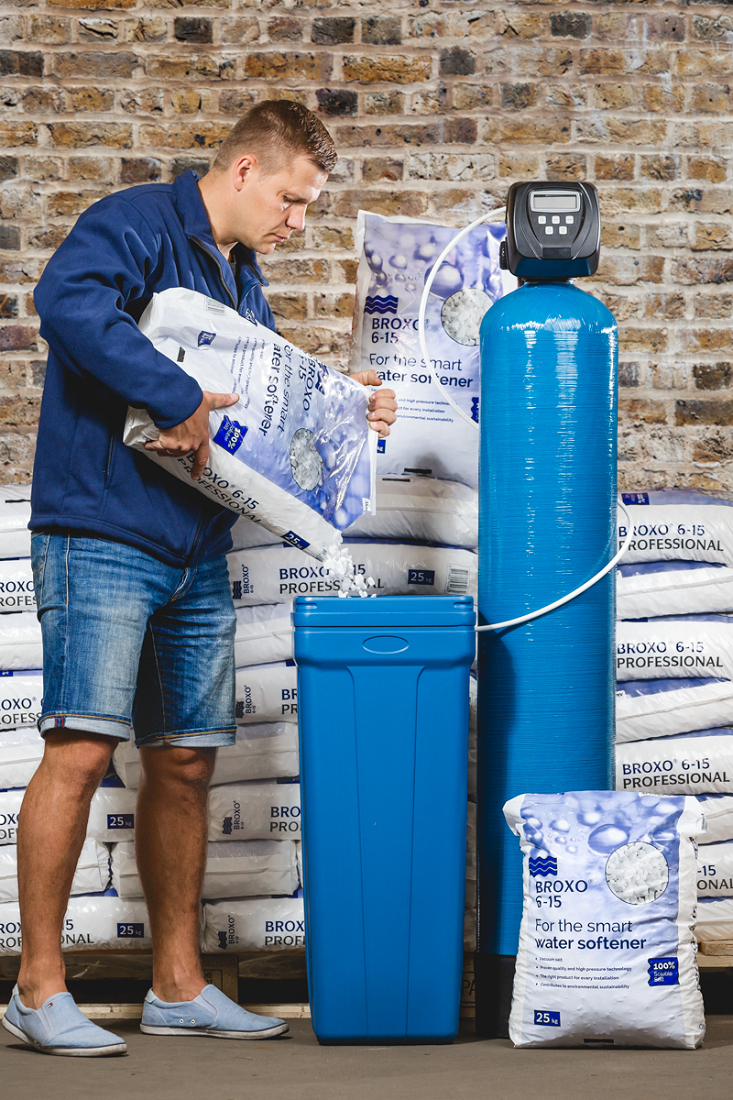

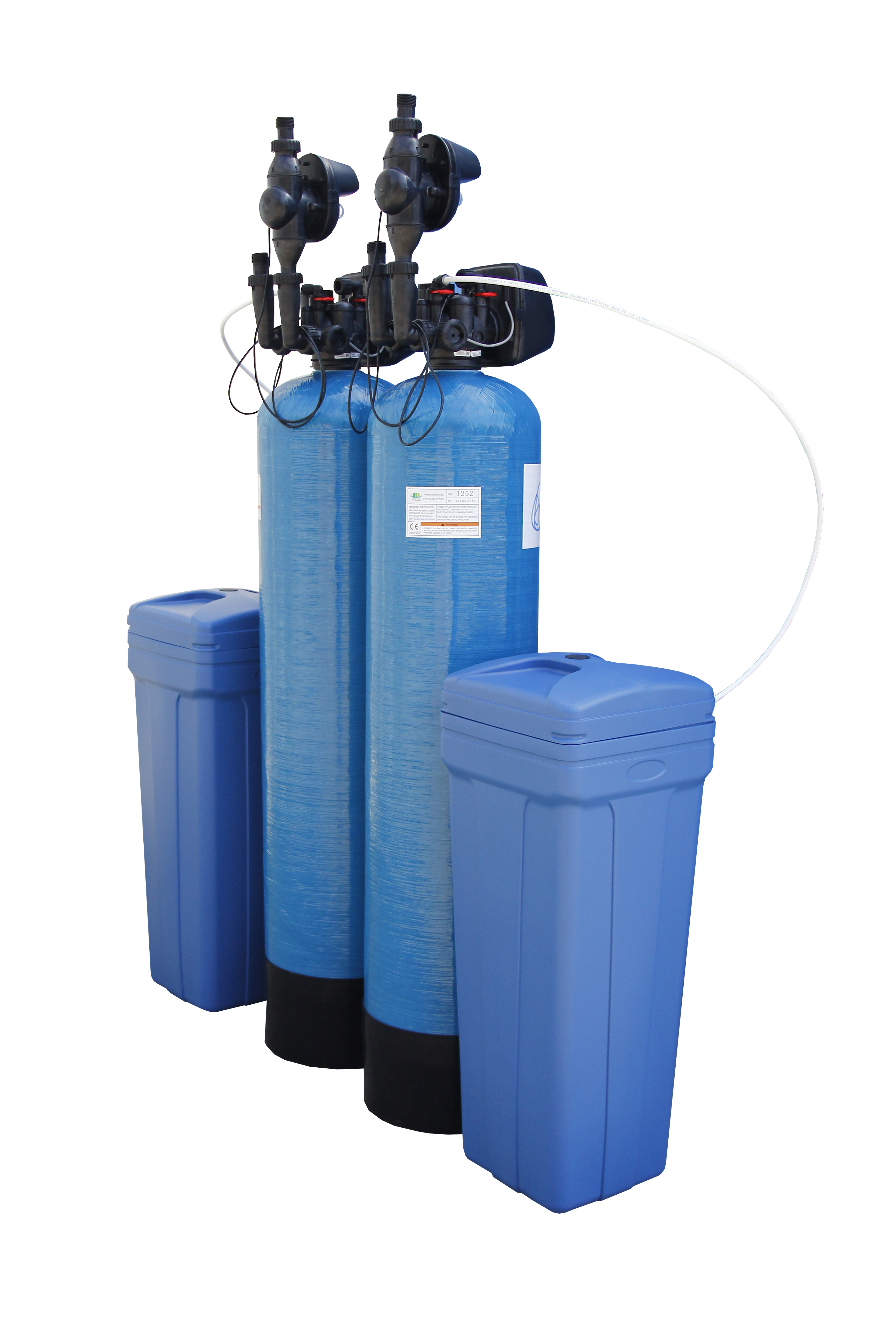

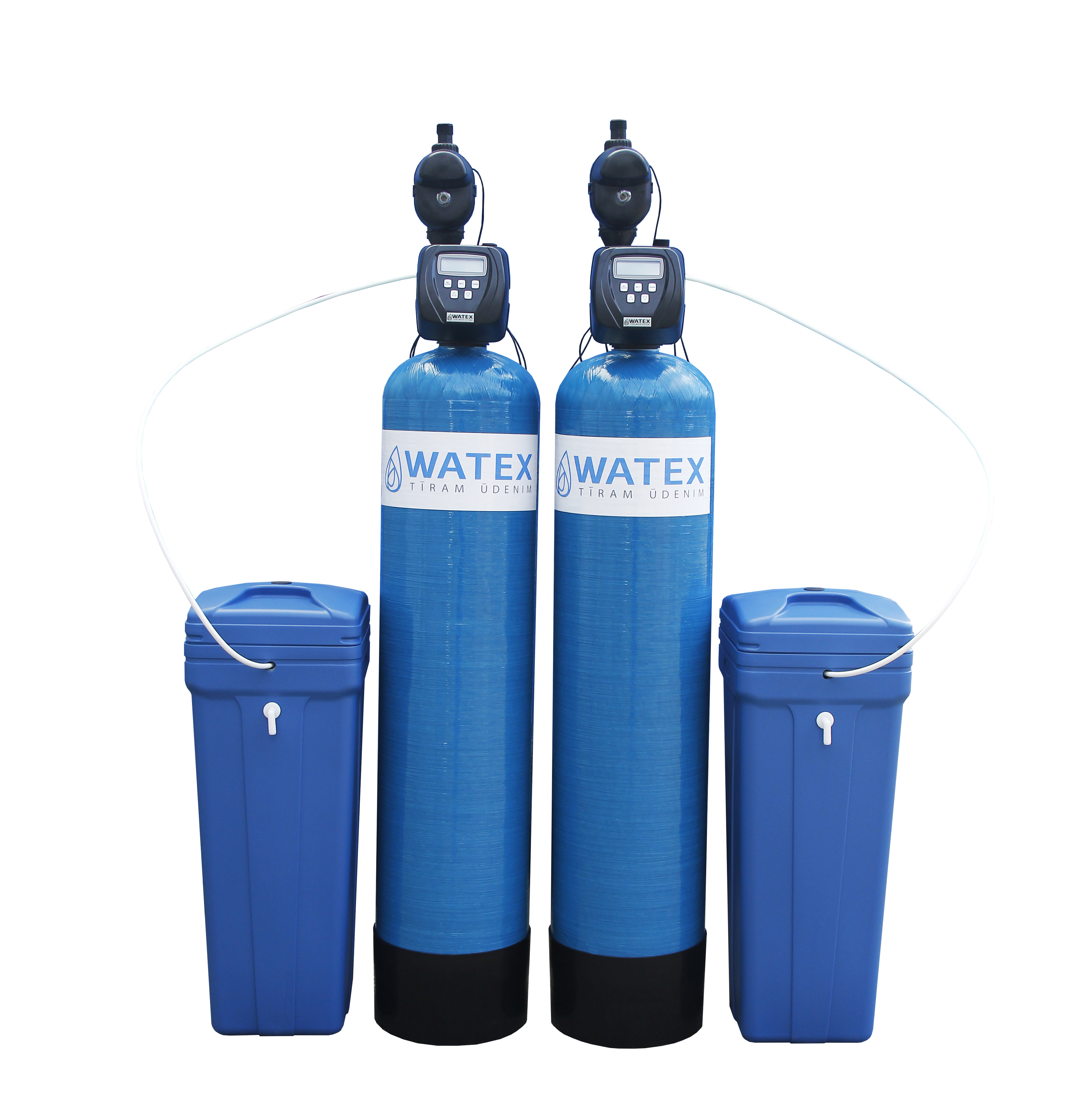

The solution for improving water quality for operation sites with high water consumption or ensuring continuous water supply and constant water quality over a long period of time is the WATEX CMS DUPLEX water softening systems, which soften the water and remove iron with ion exchange resins that are regenerated with a brine (NaCl) solution.
FILTER OPERATION

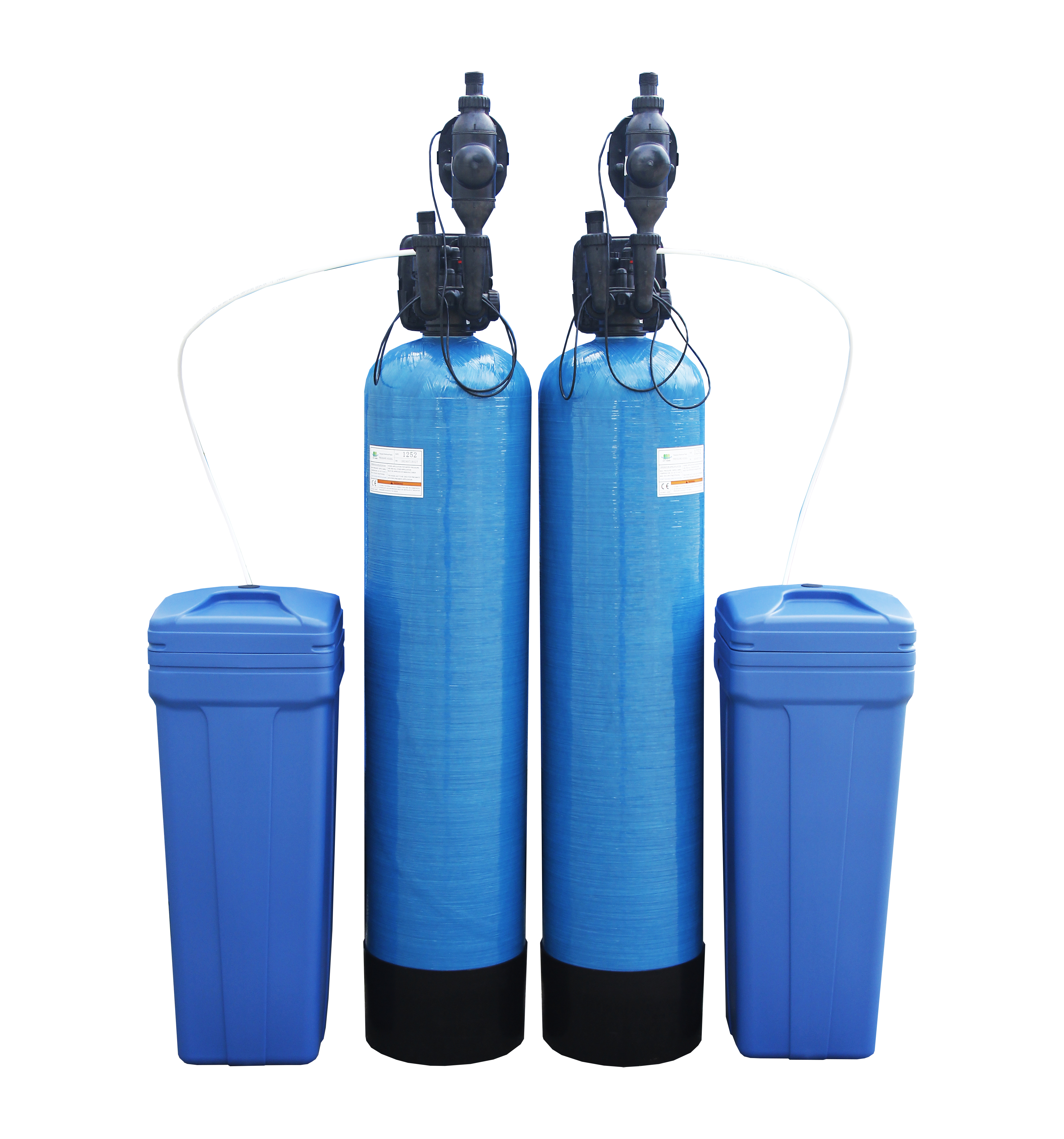

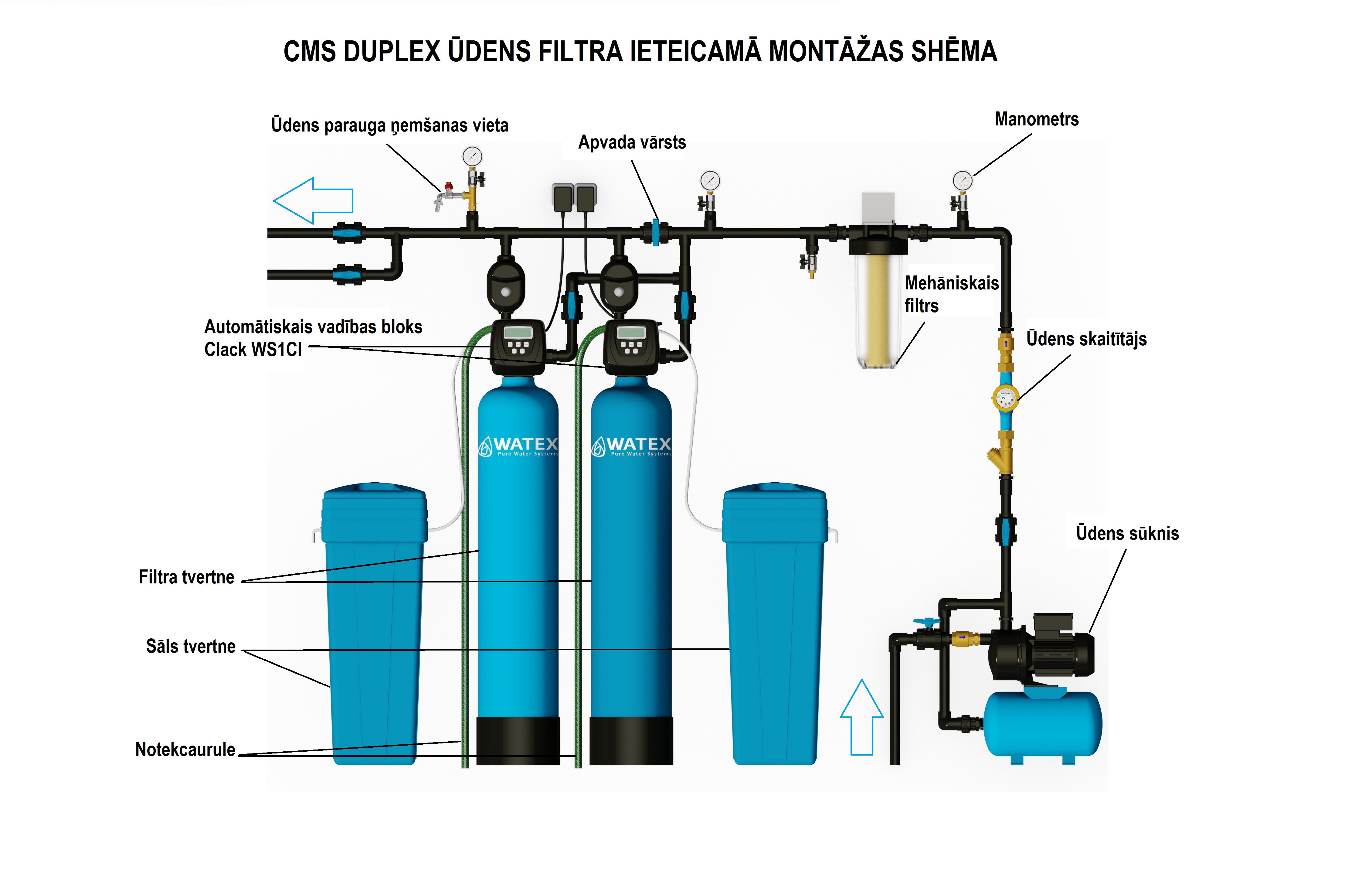

The system consists of 2 filter tanks, 2 CLACK control valves and 2 brine tanks. Ion exchange resins are filled inside the pressure tanks, which ensure the reduction of water hardness salts and iron concentration. The control valves automatically conduct filter regenerations. The filter capacity between regeneration is calculated based on the quality of the incoming water and the amount of ion exchange resins. Water flows through both filter tanks at the same time. When regeneration occurs, half of the maximum water flow is maintained through one filter tank while the other is being regenerated. As a result of filtration, sediments accumulate in the filtering material (ion exchange resin). During regeneration, sediments are flushed out of the filter and a brine solution (NaCl) is used to restore the properties of the ion exchange resins. Even though the filter media requires a brine solution during regeneration, the sewage water can be discharged in biological wastewater treatment plants.
FILTER CONTROL

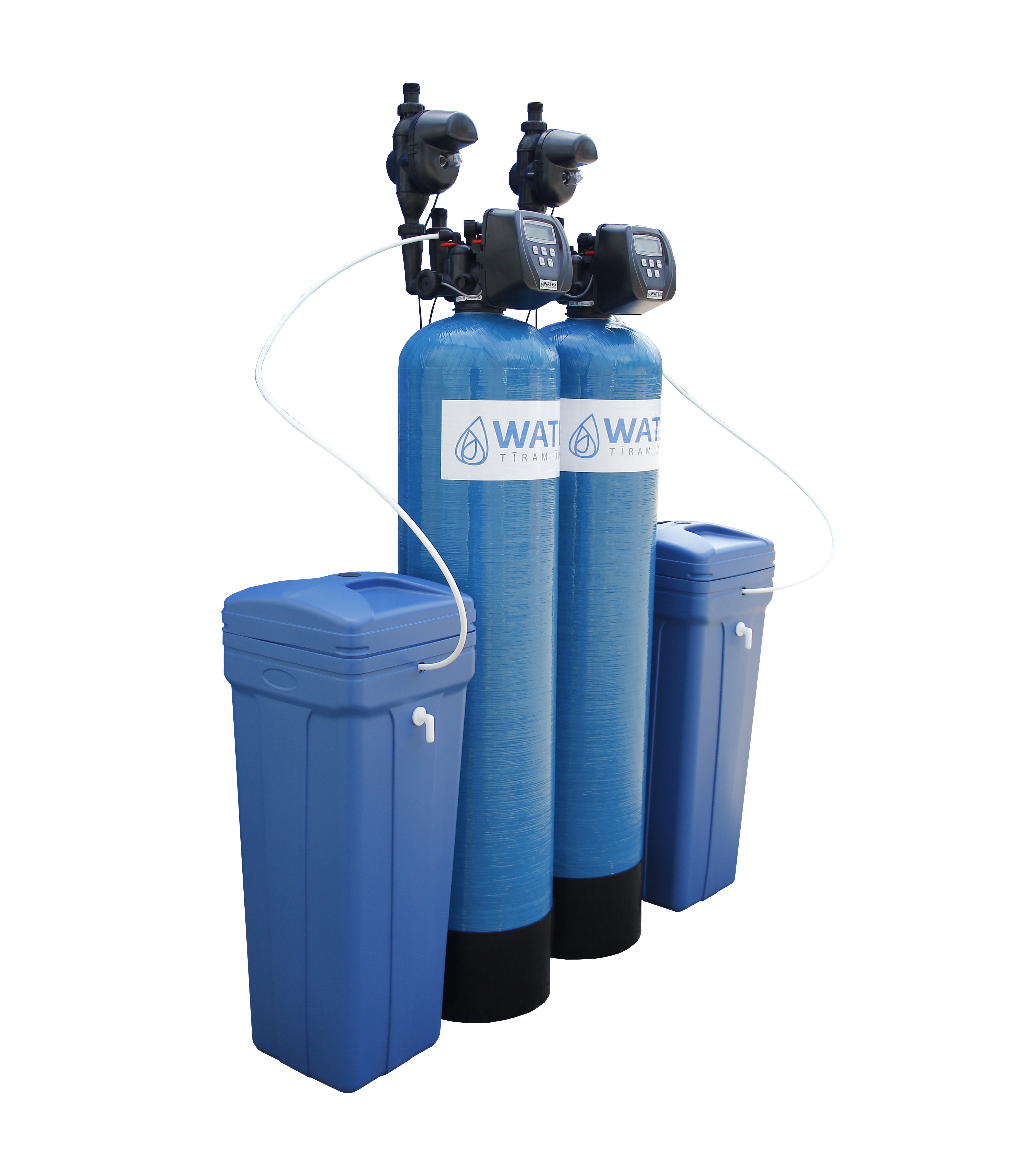

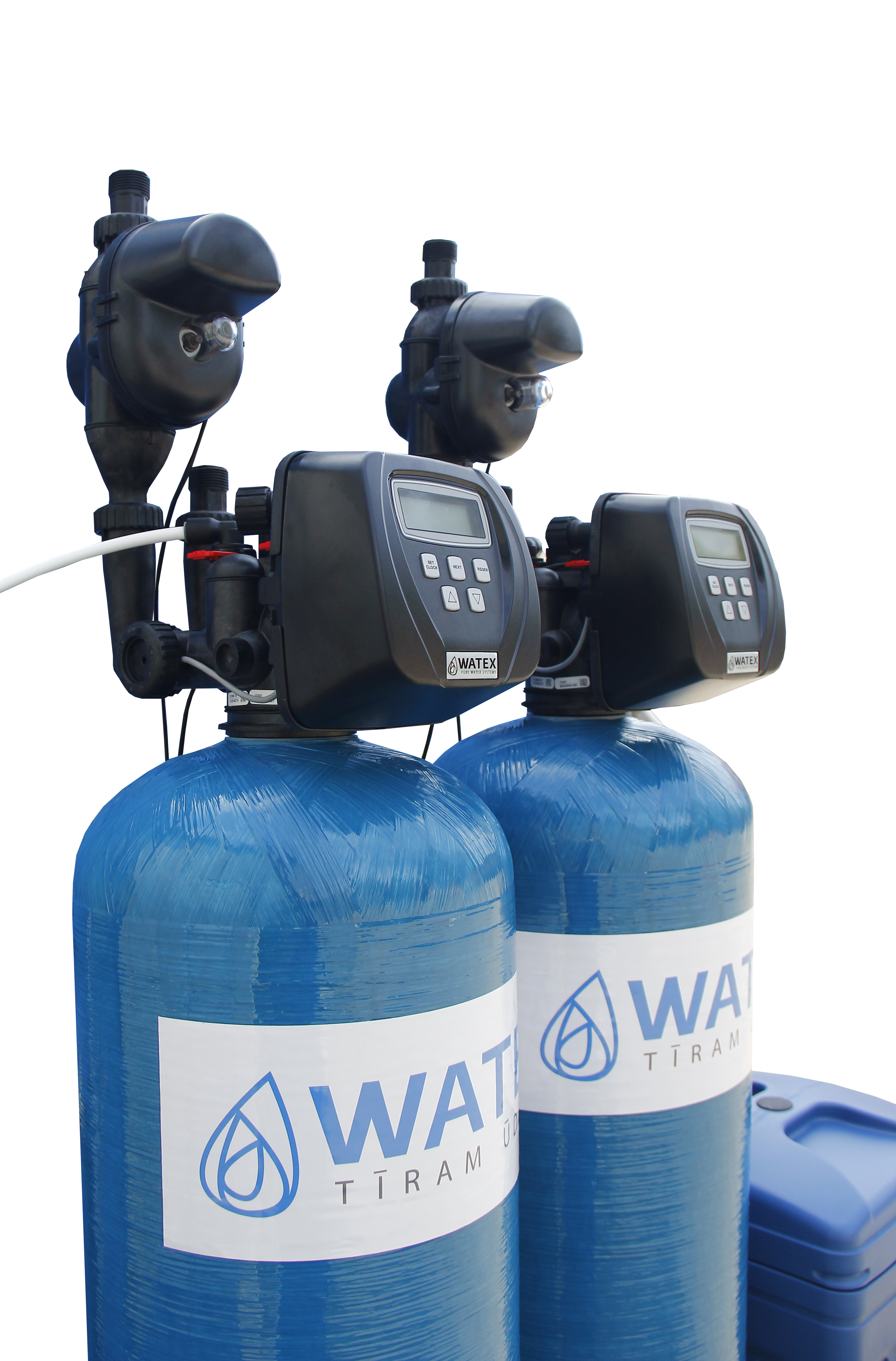

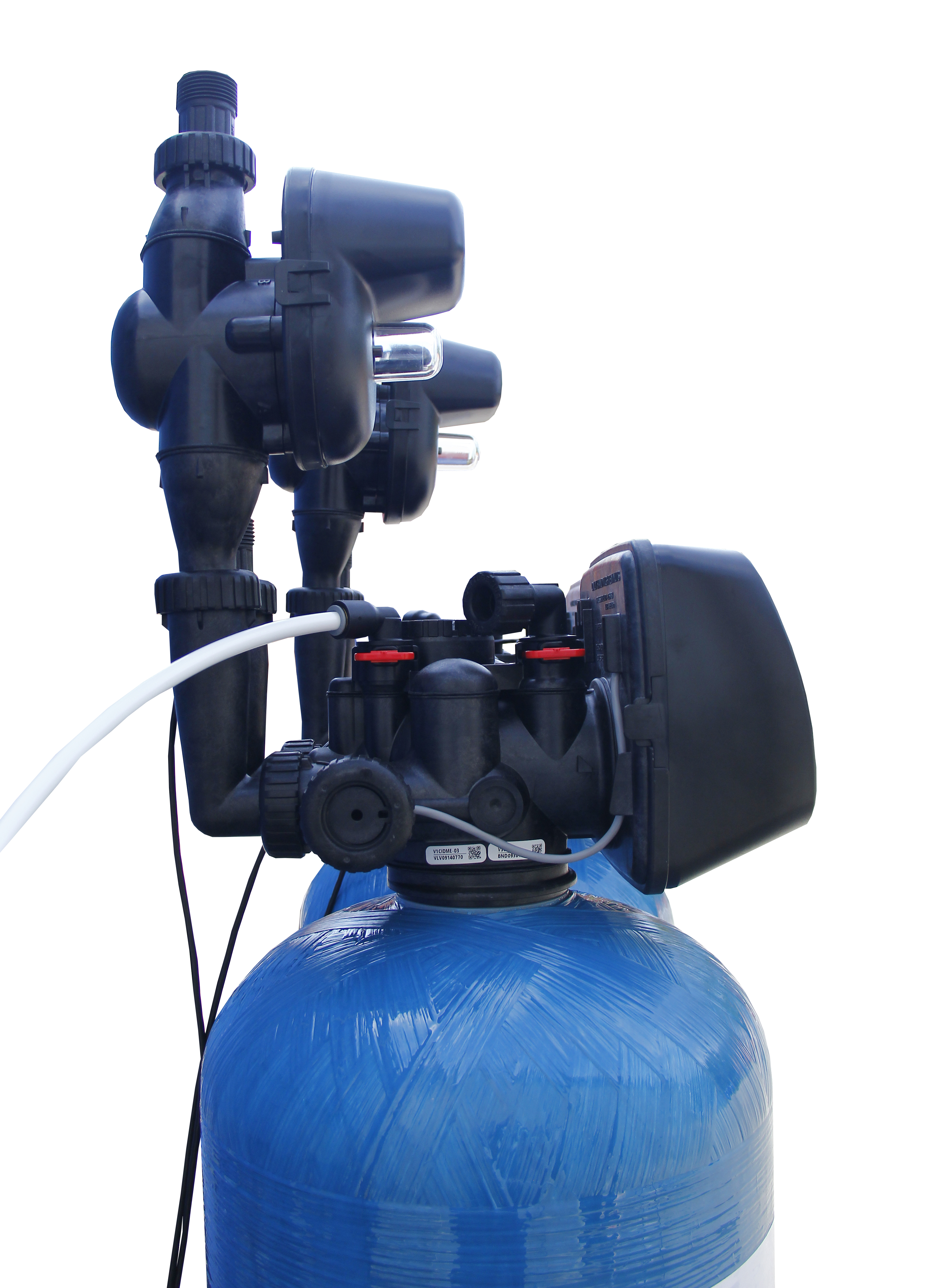

WATEX CMS DUPLEX equipment is equipped with Clack WS CI control valves complete with a built-in water flow meter that performs filter regenerations based on the amount of water consumed. Water consumption accounting reduces salt consumption and the amount of water discharged to the sewer. The equipment can be equipped with a bypass line, thus ensuring simple and operative installation and filter maintenance. The control valve saves all information in the event of a power failure. It is possible to set a number of parameters for the equipment depending on the needs and wishes of consumers. It is possible to adjust the regeneration time, frequency, reagent consumption, water hardness (for certain control valve models) and other parameters.
Equipment technical parameters |
Unit |
Model |
|||||
CMS8 DUPLEX |
CMS9 DUPLEX |
CMS10 DUPLEX |
CMS12 DUPLEX |
CMS13 DUPLEX |
|||
Flow rate* Qnom |
m3/h |
0.8 |
1.2 |
2.0 |
2.8 |
3.6 |
|
Flow rate** Qmax |
m3/h |
1.2 |
2.0 |
3.2 |
4.4 |
5.6 |
|
Maximum flow rate |
m3/h |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
|
One filter tank capacity between regenerations*** |
liters |
2300 |
3800 |
6000 |
8300 |
10600 |
|
Incoming water quality for calculation |
|
Iron – 0,2 mg/l; Hardness – 6,0 mg-ekv/l |
|||||
Amount of water for 1 regeneration |
liters |
70 |
100 |
150 |
200 |
250 |
|
Salt consumption for 1 regeneration |
kg |
2.3 |
3.8 |
6.0 |
8.3 |
10.5 |
|
Minimum flow rate for rinsing |
m3/h |
0.26 |
0.33 |
0.41 |
0.58 |
0.68 |
|
Pressure tank size (diameter) |
inches |
8 |
9 |
10 |
12 |
13 |
|
m |
0.20 |
0.23 |
0.25 |
0.30 |
0.33 |
||
Pressure tank volume |
liters |
25 |
32 |
64 |
85 |
110 |
|
Filtering material volume |
liters |
15 |
25 |
40 |
55 |
70 |
|

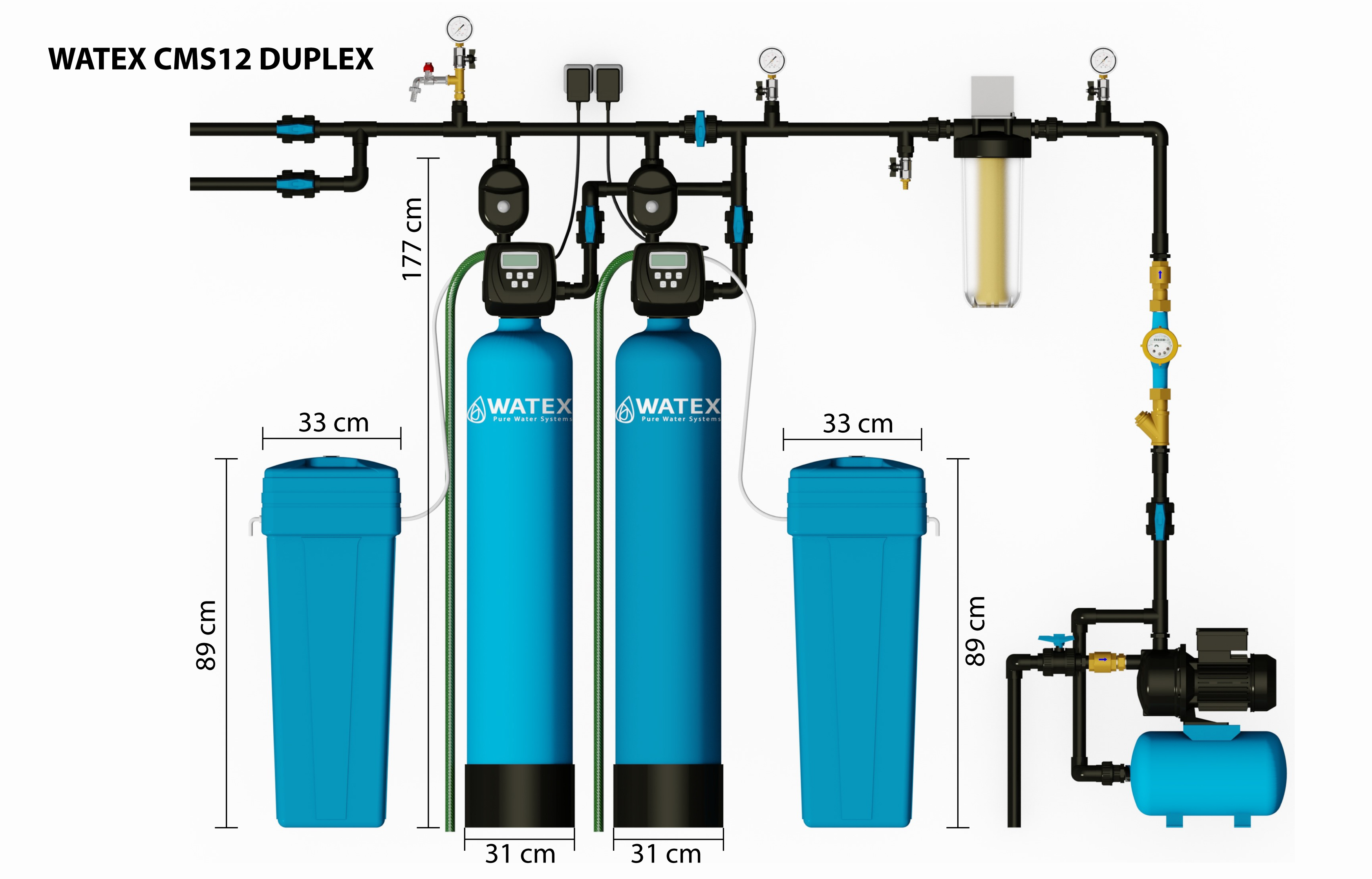

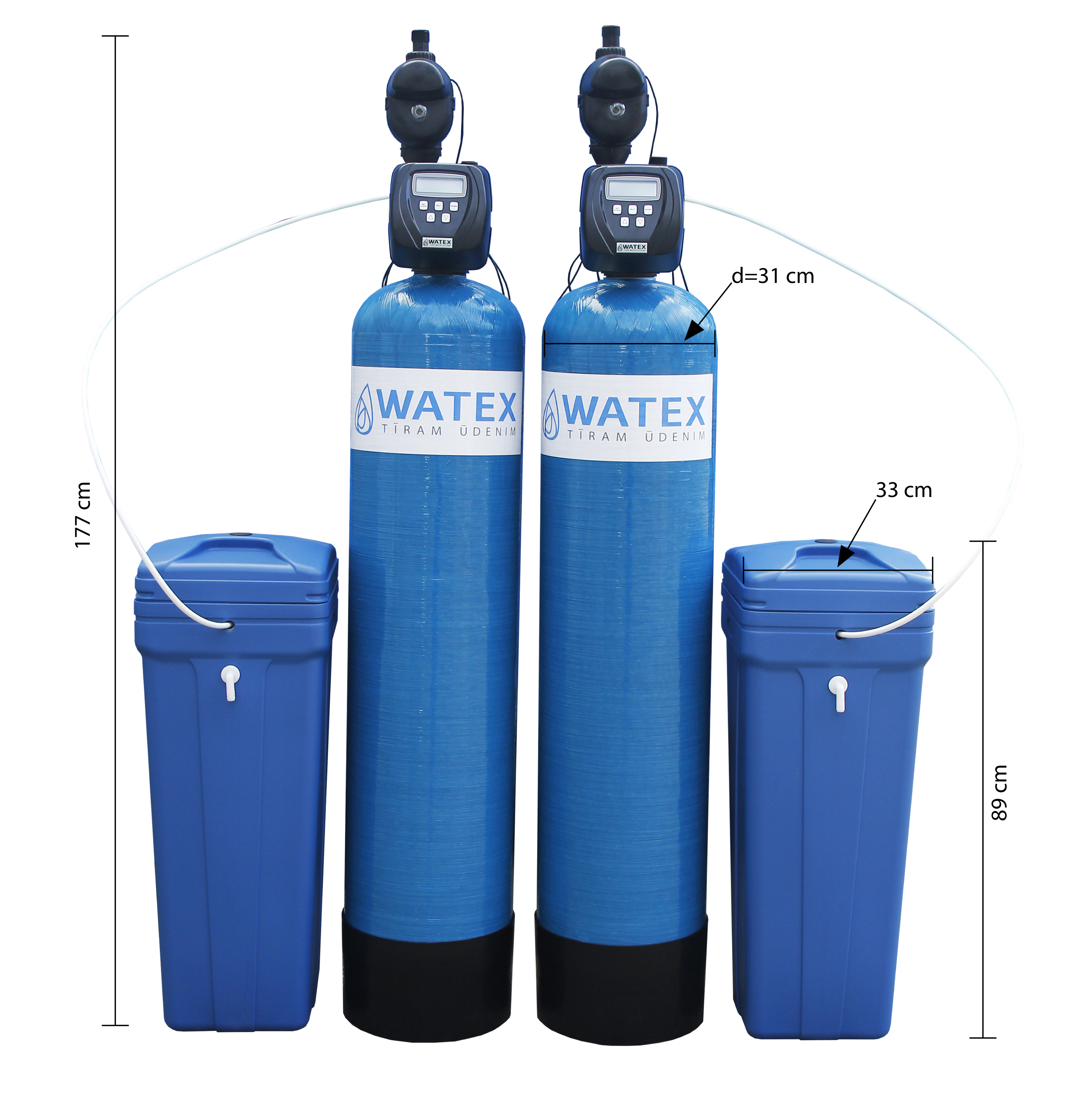

Equipment dimensions |
|
|
|
|
|
|
|
Lenght (L) |
m |
1.06 |
1.12 |
1.18 |
1.28 |
1.68 |
|
Width (W) |
m |
0.28 |
0.28 |
0.28 |
0.30 |
0.46 |
|
Height (H) |
m |
1.14 |
1.47 |
1.62 |
1.57 |
1.62 |
|
Connection incoming/outgoing/drain |
inches |
1”/1”/1” |
1”/1”/1” |
1”/1”/1” |
1”/1”/1” |
1”/1”/1” |
|
Clack control valve |
|
CI 1” NHVB x 2 |
CI 1” NHVB x 2 |
CI 1” NHVB x 2 |
CI 1” NHVB x 2 |
CI 1” NHVB x 2 |
|
Water treatment possibilities |
|
Hardness, Iron, Ammonium, Turbidity |
|||||
Pressure tank material |
|
FRP (Fiberglass Reinforced Plastic) |
|||||
Filtering material |
|
Ion exchange resins Resinex KW-8, quartz sand 1x3 mm, 3x5 mm |
|||||
Working pressure |
bar |
2-6 |
|||||
Electric connection |
|
220V, 50Hz, 1 phase |
|||||
Electric consumption |
W |
3 W |
* Filtration speed 25 BV/h
** Filtration speed 40 BV/h
*** Volume can multiply if incoming water quality changes
REQUIREMENTS:
It is necessary to provide electricity connection 220V(one socket), drain, incoming, outgoing water supply with minimum pressure of 2.5 bar.
RECOMMENDATIONS:
Additional equipment options:
By clicking on the following links, you can view and download:
Water_softening_filter_WATEX_CMS8-13_DUPLEX_technical_data_ENG.pdf
