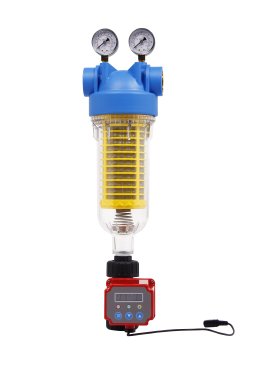

ATLAS water filter HYDRA RAH M manual self cleaning with pressure gauges 1''

Manufacturer: ATLAS
Product code: RB6000117
Combination does not exist
66.00
79.86

ATLAS HYDRA RAH M - a modern solution for clean water!

Application: For filtering turbidity, oxidized iron, sand, scale deposits and clay particles.

The most characteristic features:

  • equipped with manometers before and after filtration
  • easy to rinse
  • purification degree 90 microns
  • stainless steel cartridge AISI 316
  • cold water
  • cartridge does not need to be changed
  • high flow, low pressure losses

If the filter is clogged, open the bottom valve and flush out any sludge, sand and other deposits that have accumulated on the surface. The water is discharged directly into the sewer or in a separate container.

The filter is flushed when pressure losses occur. It can be monitored with installed manometers before and after the filter. The transparent housing makes it easy to assess the degree of contamination.



Show full description

Technical parameters of equipment

Unit

Model



HYDRA ¾ RAH M



HYDRA 1 RAH M

IN/OUT connections

inches

¾’’

1’’

Cartridge type



stainless steel net

Purification degree

micron

90

Max.flow rate

l/h

5300

6000

Width

mm

120

Height

mm

390



The set includes:

  • Filter housing
  • Filter element - ner. steel mesh 90 microns
  • Wall mounting
  • Valve for rinsing the element
  • Nipple for connecting a hose
  • Manometers, 2 pcs



Width cm

Height cm

Length cm

Weight kg

14.00

15.00

34.00

1.30

Show full description

By clicking on the following link, you can view and download the following:

ATLAS water filter HYDRA RAH M
