Automatic flushing ball valve 1/2'' PVC

Manufacturer:
Product code: CBV-15-T
Combination does not exist
Do you have any questions?
Manufacturer:
Product code: CBV-15-T
Combination does not exist
€ 92.00
€ 111.32

Automatic ball valve for periodic flushing of filters and pipelines. Designed for cold water. PVC body, 1/2" connection. Reduces sediment build-up and maintains stable flow. Can be operated by a timer or control unit (open/close cycles).

Applications: sediment filters, ultrafiltration, irrigation, RO pretreatment, drain/line flushing.

Show full description

Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.

  • Product type: Time-controlled electronic ball valve
  • Nominal diameter (DN): DN15

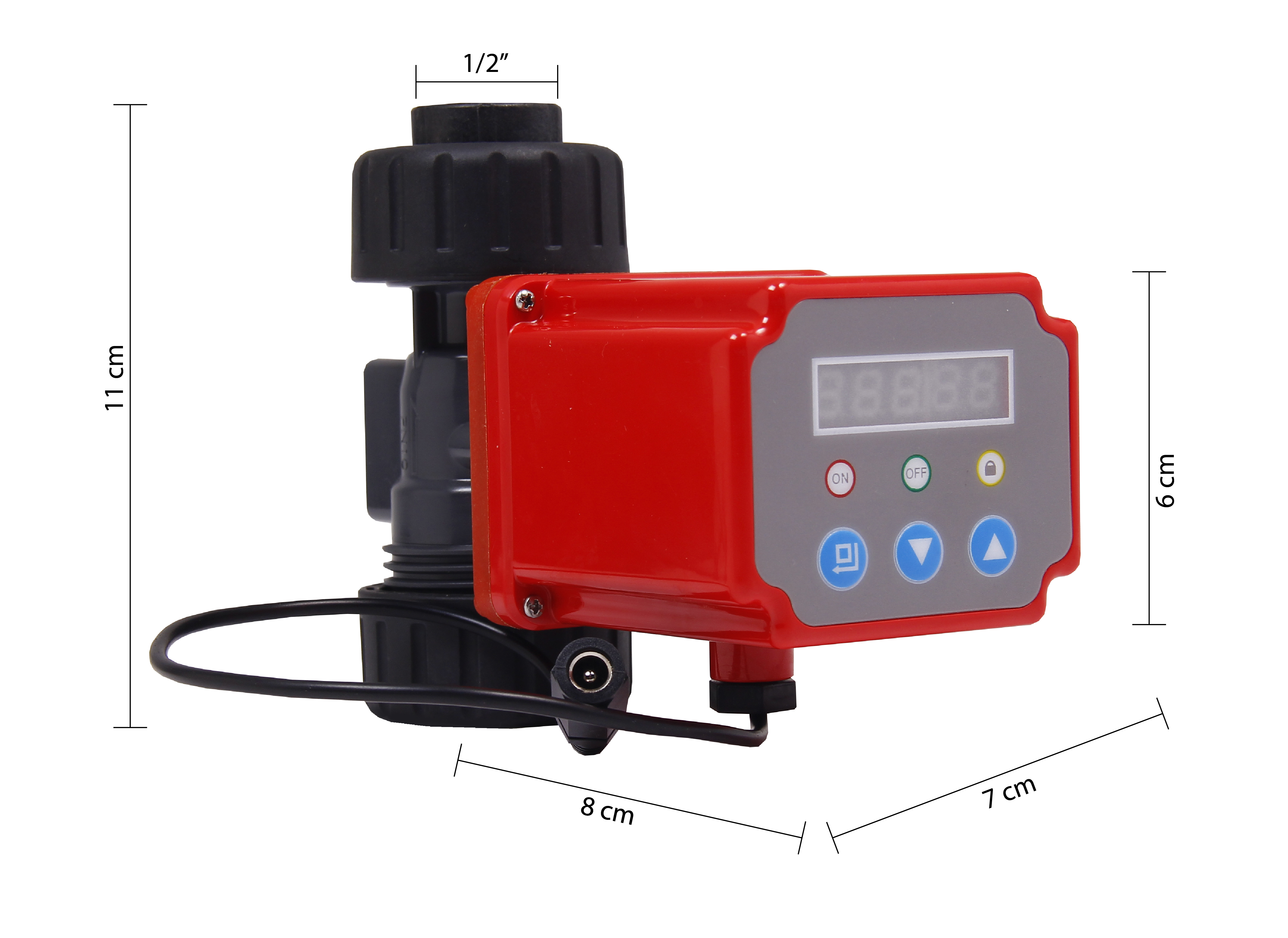

  • Dimensions (mm):A – 111, B – 1/2", C – 14, H – 144
  • Open/close time: adjustable (seconds or minutes)
  • Voltage: 12 V
  • Body material: PPO (Polyphenylene Oxide)

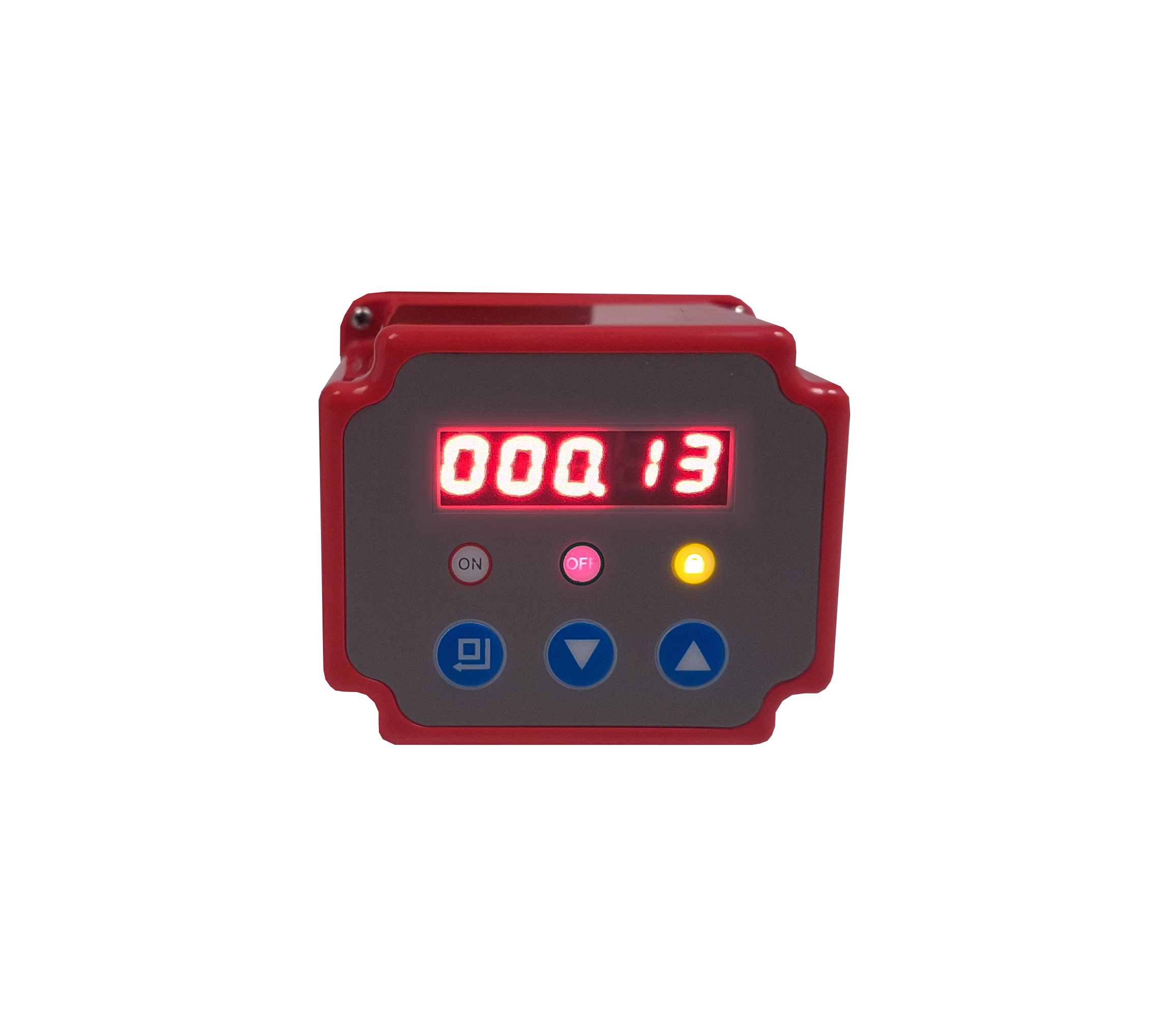

  • Features: opening/closing time can be set; indicator shows valve status; data automatically saved after power-off

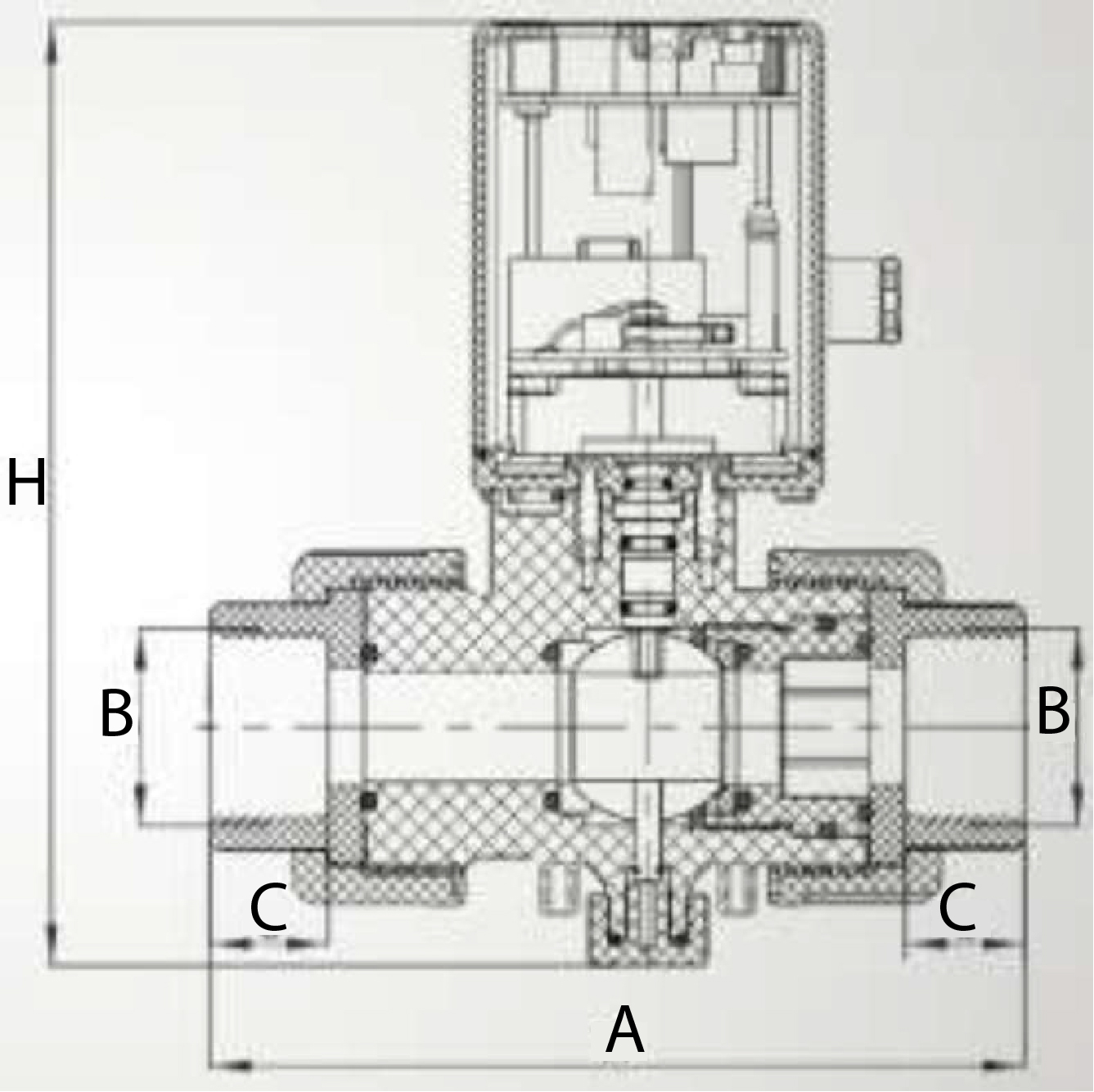

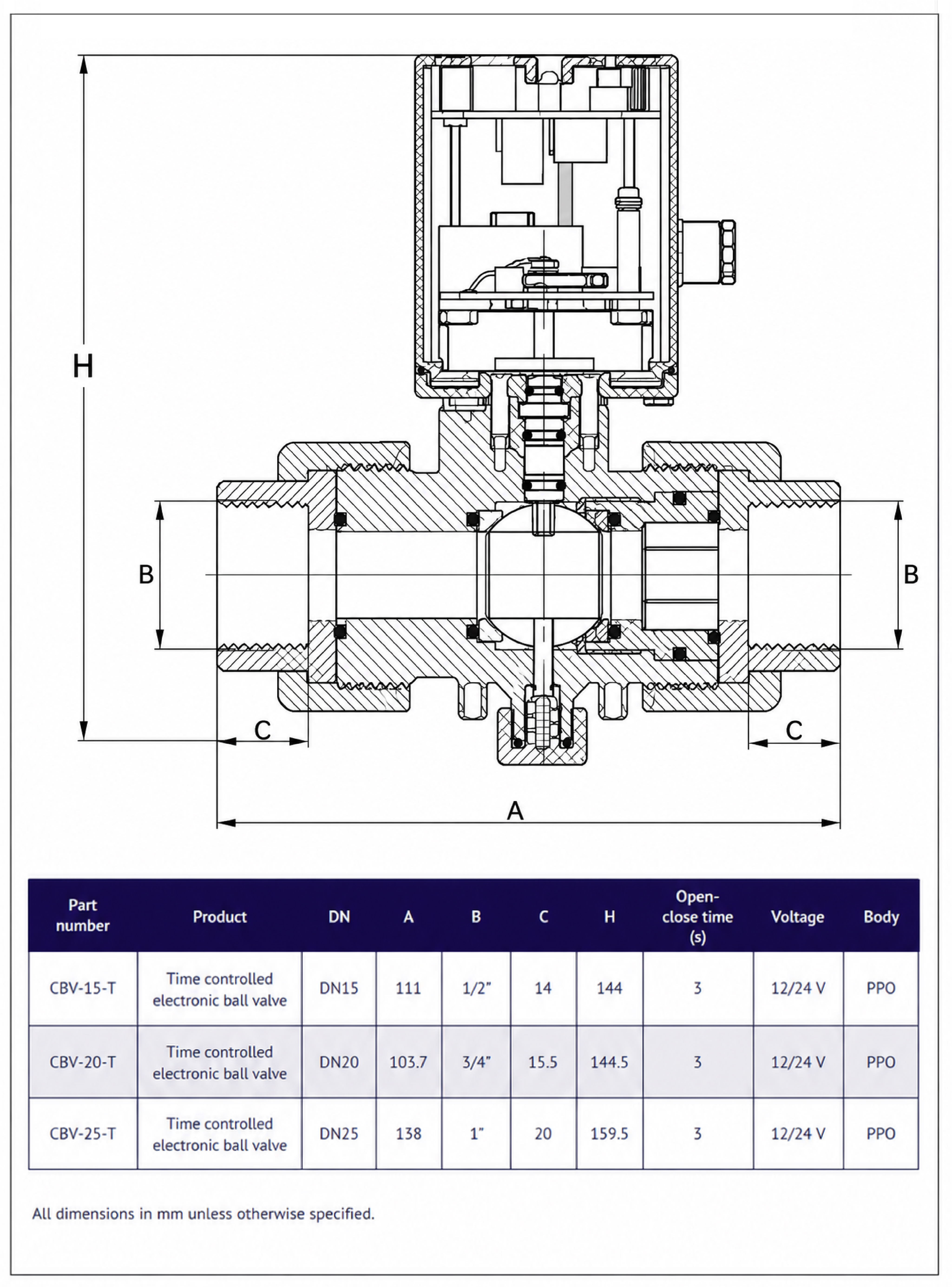

Cross-section and dimension diagram of an automatic flushing ball valve

Width cm

Height cm

Length cm

Weight kg

7.00

11.00

14.00

0.80

Show full description

By clicking on the following link, you can view and download the following:

Automatic flushing ball valve 1/2'' PVC_ENG
