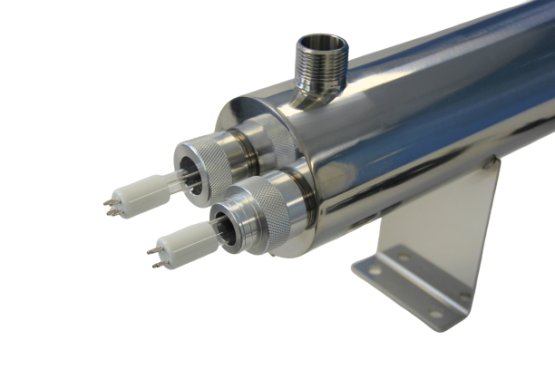

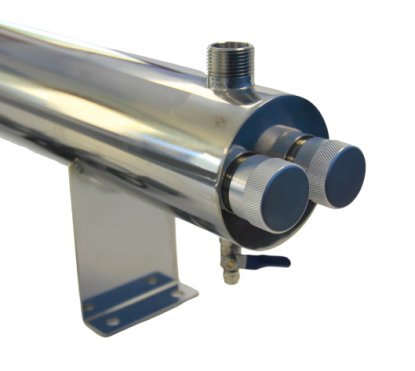

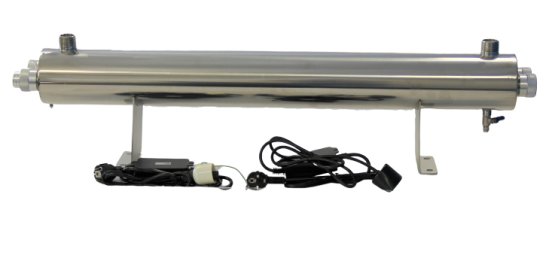

UV Sterilizer WATEX UVS90 (110W)

Manufacturer: WATEX
Product code: UVS90
Combination does not exist
310.00
375.10

Water quality problem – viruses, bacteria

Bacteria, viruses, and other pathogens are extremely dangerous to human health, but as they are relatively small, they cannot be determined visually by looking at water The bacteriological water pollution is more common in surface water (rivers, lakes, ponds, open wells) and in the centralized water supply networks.

Solution

UV light can efficiently reduce microbiological growth in water. UV energy with a wavelength of 254 nanometres destroy bacteria, viruses, algae, and fungi by destroying the DNA of the microorganisms. Disinfection by UV light is applicable to almost all water types. The UV systems are developed and produced with a view to reach high efficiency, great reliability of operation, easy installation, long life and minimum of maintenance.

The advantages of the ultraviolet:

  • Ultraviolet disinfection technology is very effective in destroying bacteria
  • Ultraviolet energy can destroy bacteria and virus in about 1-5 seconds. In order to reach the same disinfection effect, it costs other chemical methods (Chlorine, Chlorine Dioxide, Ozone) about 30 minutes or more contact time
  • No secondary pollution
  • Since no chemical is added, ultraviolet disinfection system will not cause secondary pollution to water and environment
  • Low operational costs, simple operation and maintenance
  • Occupied small space

Maintenance:

  • The bulb must be replaced once a year or every 9,000 operating hours
  • When replacing the bulb, the surface of the glass bulb housing must also be cleaned



Show full description

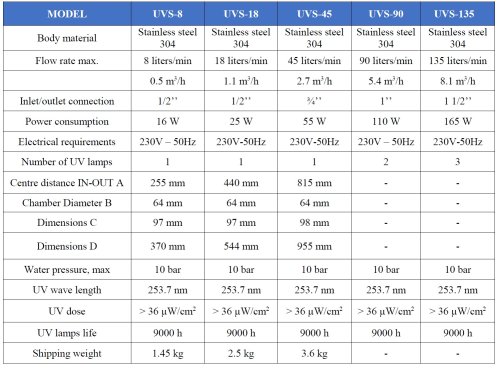

Technical parameters of equipment

Unit

Model

UVS45

UVS90

UVS135

Water - drain connection

inches

¾

1

1 ½

Flow rate, max

liters/min

45

90

45

Treatment efficiency



99.99 %

Application



UV radiation with a wavelength of 254 nanometres kills bacteria, viruses, algae and fungi by destroying the DNA of the microorganisms. Disinfection by UV light is applicable to almost all water types

Electric connection



230 V, 50 Hz

Lamp quantity



1

2

3

Power consumption

W

55

110

165



Width cm

Height cm

Length cm

Weight kg

25.00

25.00

110.00

4.55
