Ultrafiltration membrane UF10000 (washable)

Manufacturer:

Product code: UF10000_M

Do you have any questions?

Manufacturer:

Product code: UF10000_M

Price without VAT

€ 198.00

Price with VAT

€ 239.58

– +

Availability:

In stock

Delivery time: 2-5 working days

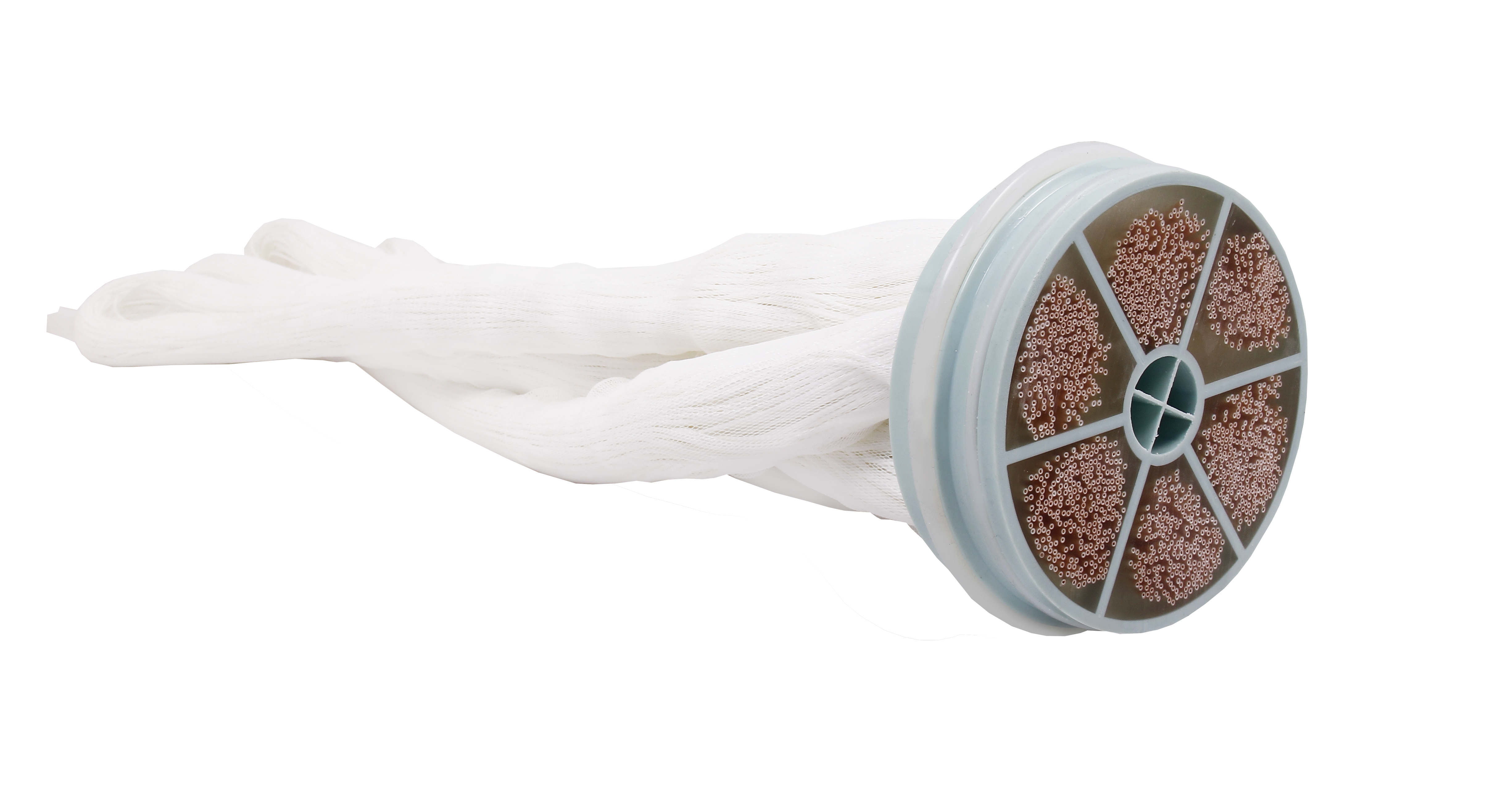

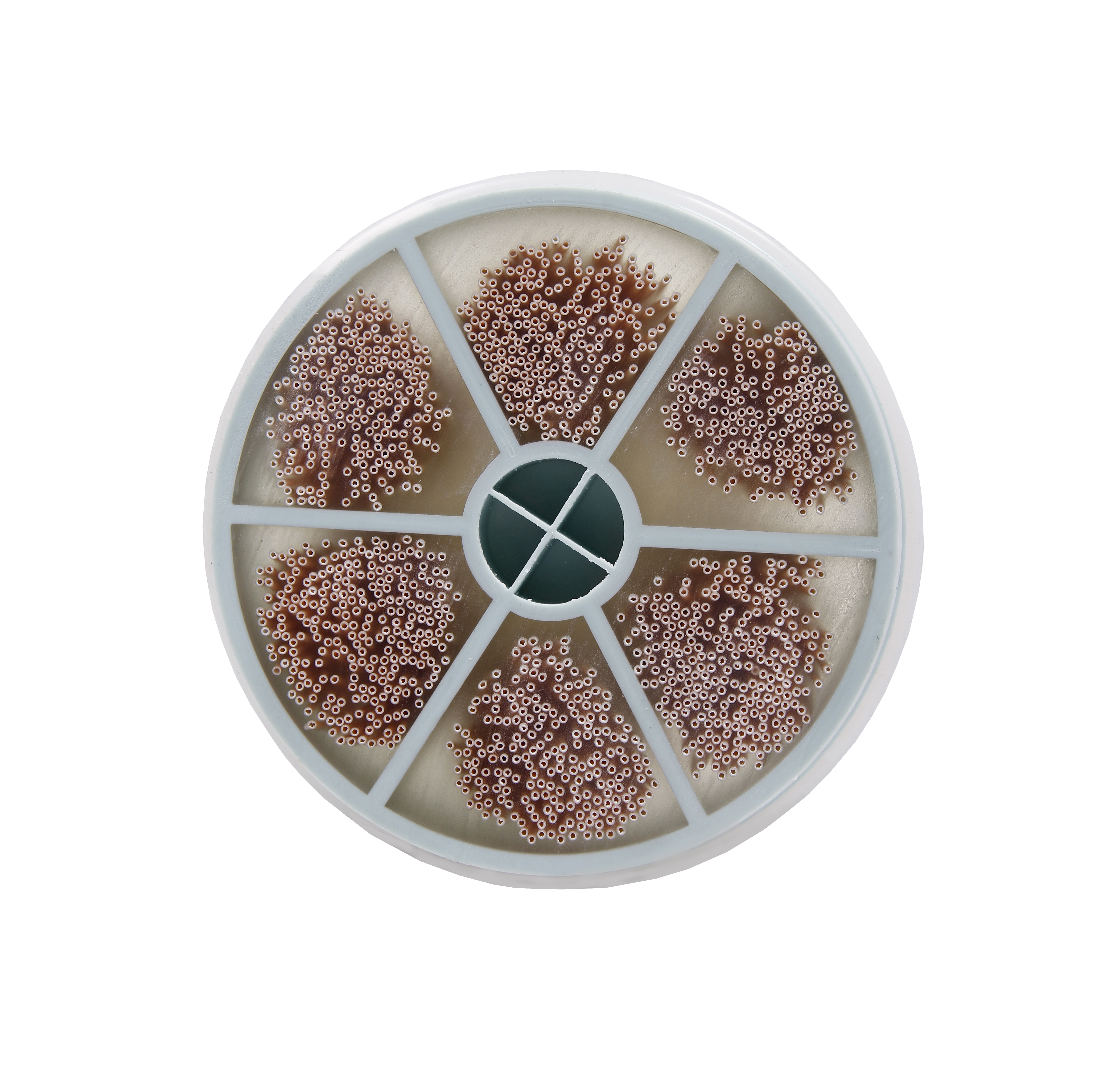

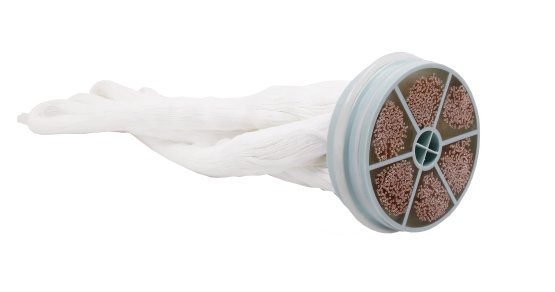

Compact hollow-fiber UF module with six fiber bundles hermetically potted in the header (epoxy potting). Operating mode — outside-in flow (outside → inside), ensuring removal of turbidity and microorganisms at low pressure.

Show full description

Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.

Filtration mechanism: hollow-fiber membrane, outside-in flow (outside → inside)
Pore size (nominal): ~0.02 µm (range 0.01–0.03 µm depending on variant)
Membrane material: PVDF/PES (hydrophilic), food-grade
Design flux: 40–120 LMH; nominally up to ~5 m³/h with clean feed and proper pretreatment
Transmembrane pressure (TMP): typically 0.1–0.2 MPa; max 0.3 MPa
Operating temperature: 5–40 °C (short-term up to 45 °C)
pH range: in operation 2–11; for cleaning (short-term) 1–13
Chlorine tolerance: short-term NaOCl per manufacturer guidelines; continuous <1 mg/L
Post-UF quality: NTU < 0.1; SDI(15) < 1
Cleaning: periodic backwash (water/air) and chemical cleaning (e.g., citric acid/NaOCl)
