Ultrafiltration membrane UF5000 (washable)

Manufacturer:
Product code: UF5000LS_M
Combination does not exist
Do you have any questions?
Manufacturer:
Product code: UF5000LS_M
Combination does not exist
114.88
139.00

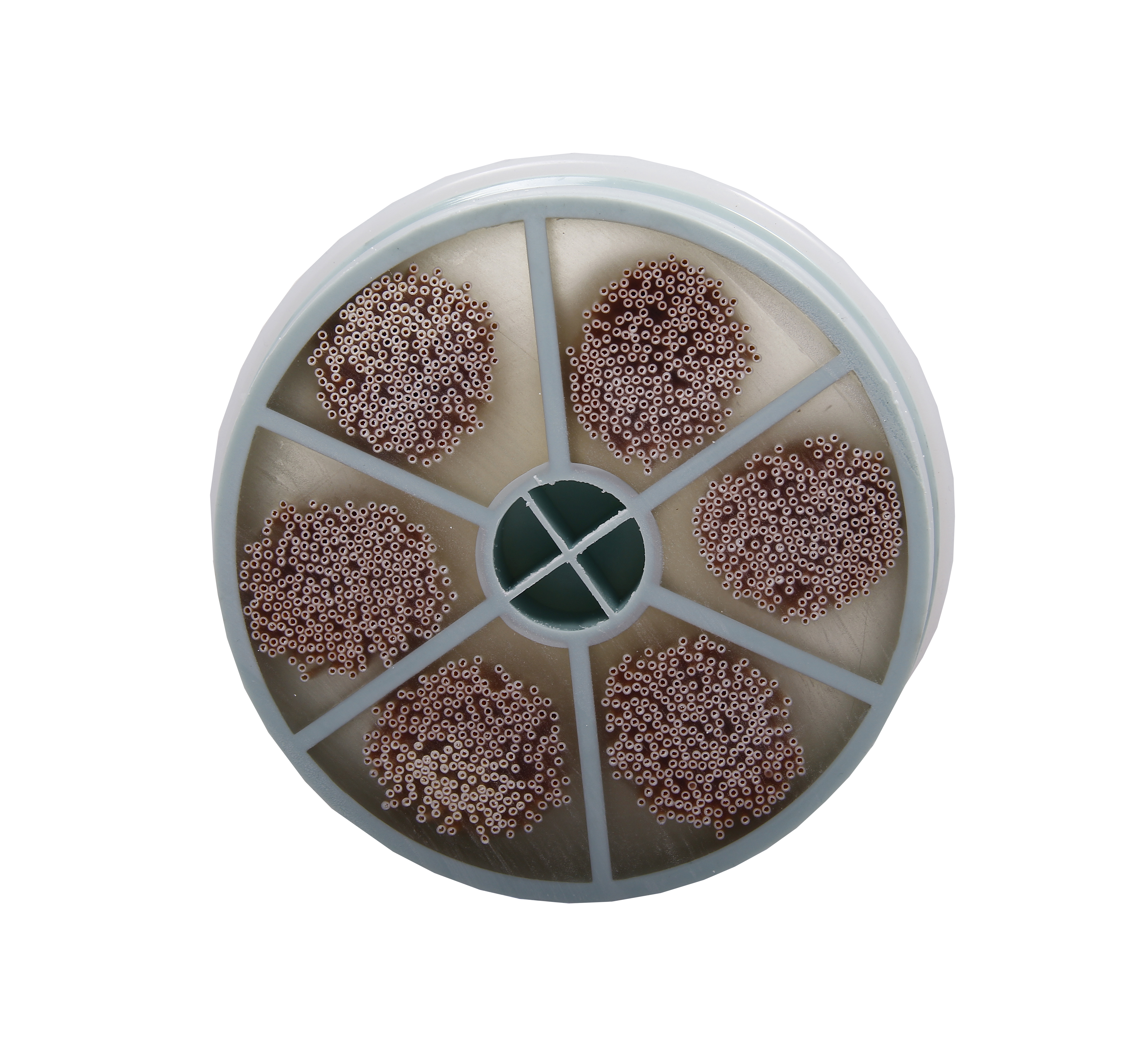

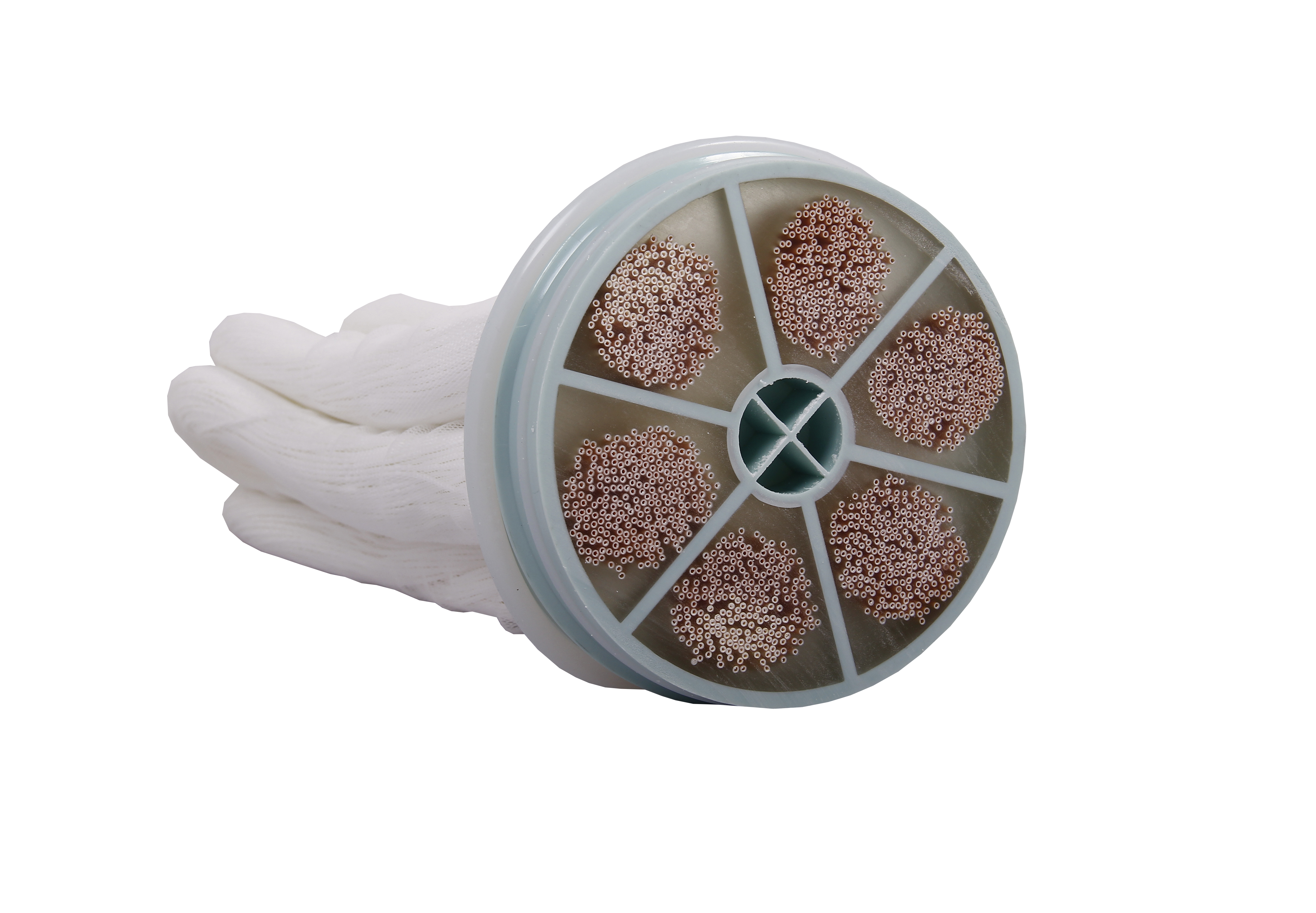

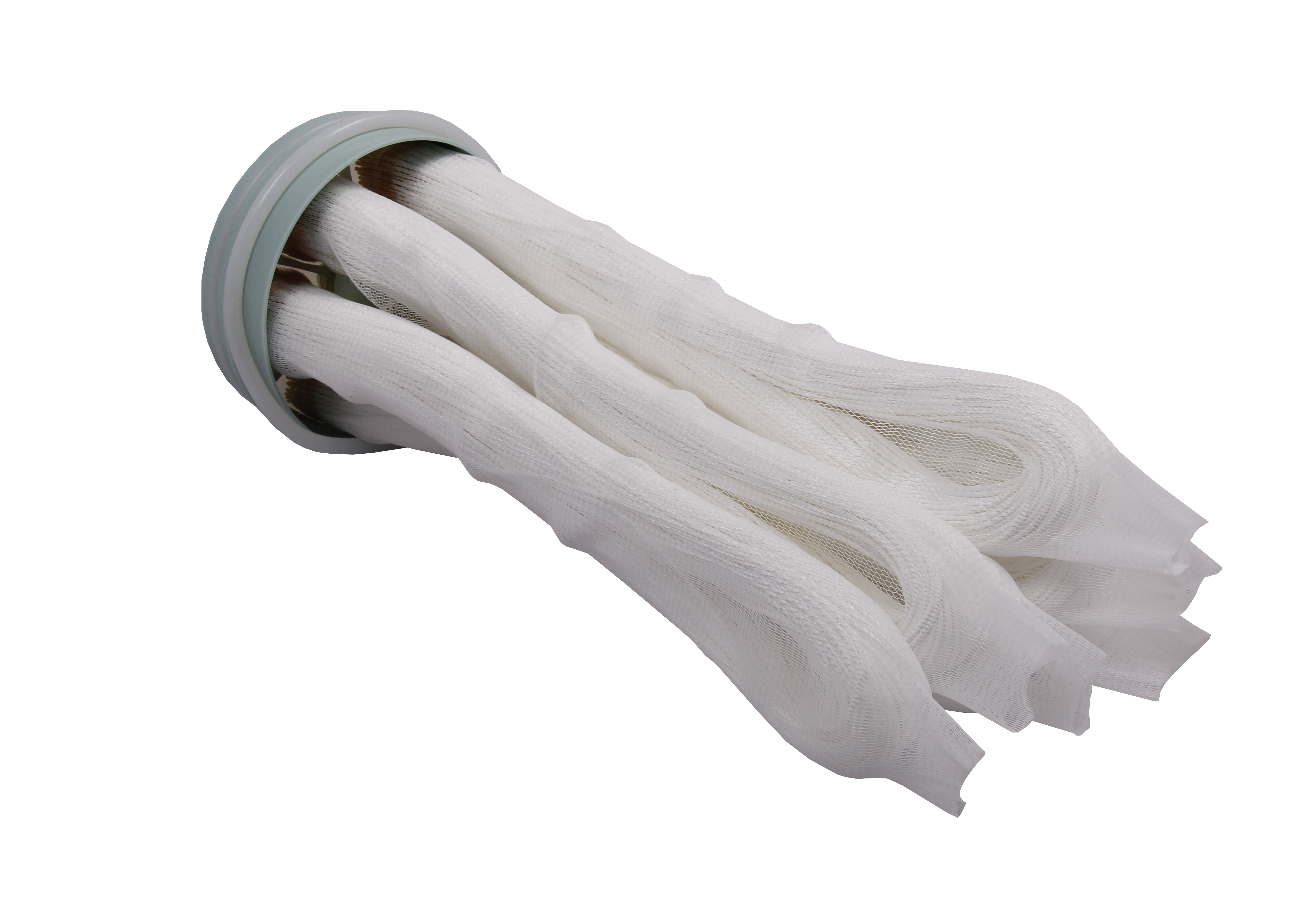

Compact hollow-fiber UF module with six fiber bundles hermetically potted in the header (epoxy potting). Operating mode — outside-in flow (outside → inside), ensuring removal of turbidity and microorganisms at low pressure.

Show full description
  • Filtration mechanism: hollow-fiber membrane, outside-in flow (outside → inside)
  • Pore size (nominal): ~0.02 µm (range 0.01–0.03 µm depending on variant)
  • Membrane material: PVDF/PES (hydrophilic), food-grade
  • Design flux: 40–120 LMH; nominally up to ~5 m³/h with clean feed and proper pretreatment
  • Transmembrane pressure (TMP): typically 0.1–0.2 MPa; max 0.3 MPa
  • Operating temperature: 5–40 °C (short-term up to 45 °C)
  • pH range: in operation 2–11; for cleaning (short-term) 1–13
  • Chlorine tolerance: short-term NaOCl per manufacturer guidelines; continuous <1 mg/L
  • Post-UF quality: NTU < 0.1; SDI(15) < 1
  • Cleaning: periodic backwash (water/air) and chemical cleaning (e.g., citric acid/NaOCl)

Note: UF does not remove dissolved substances; desalination is performed by RO.

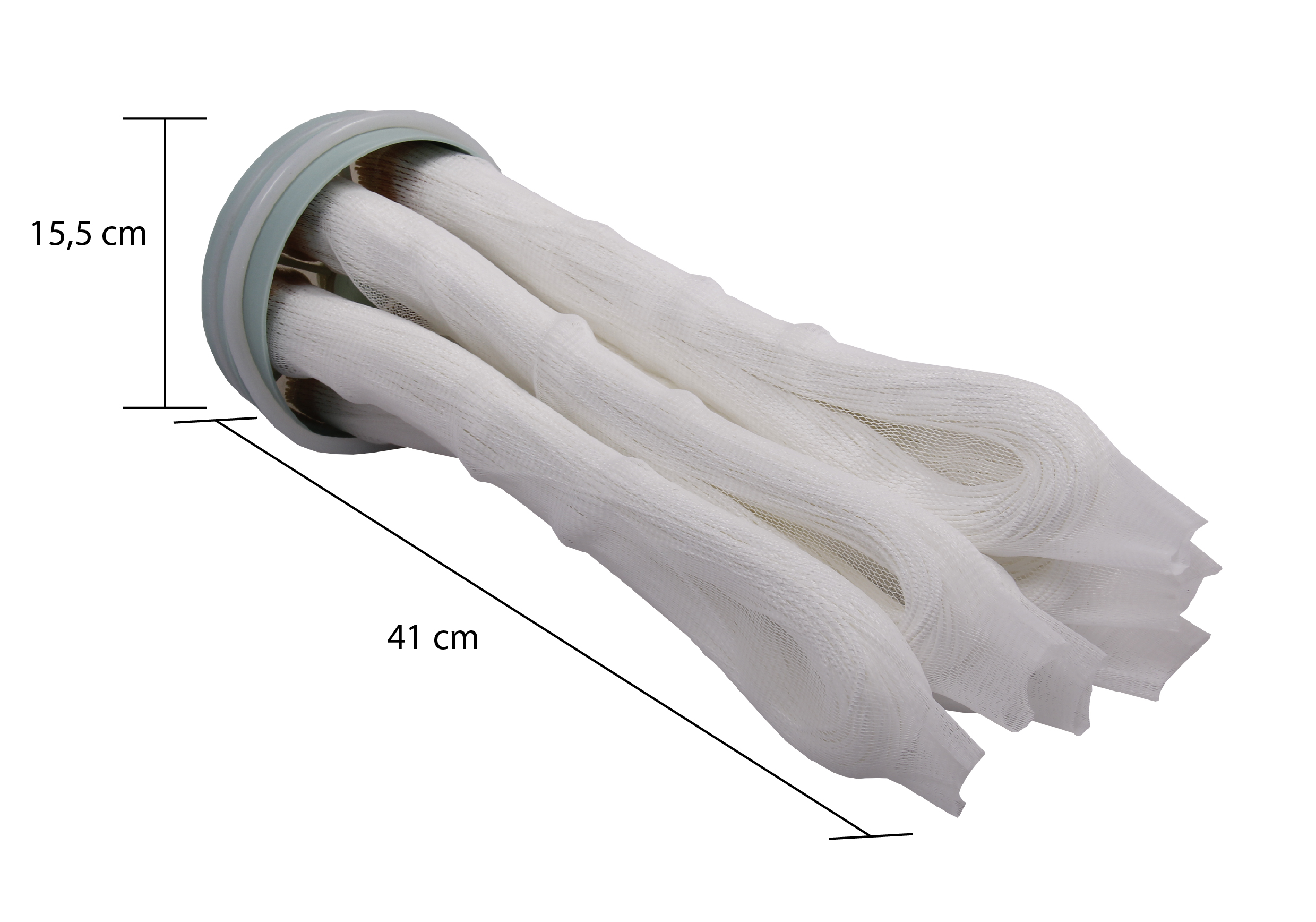

Width cm

Height cm

Length cm

Weight kg

18.00

18.00

46.00

1.60
