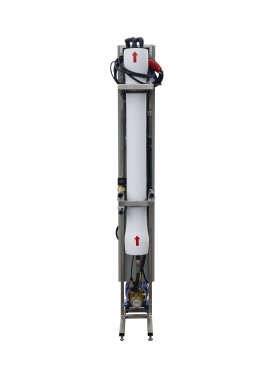

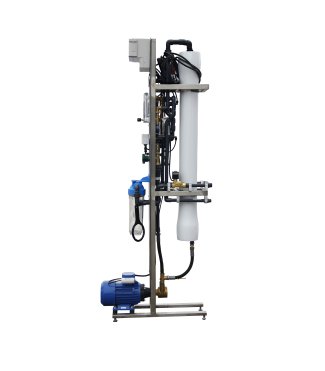

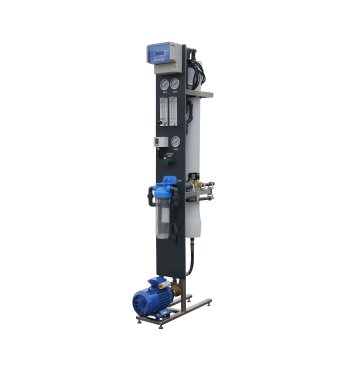

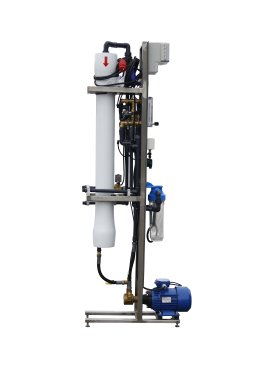

WATEX WRO200 reverse osmosis system 200 lph

Manufacturer: WATEX

Product code: WRO0200

In stock:

Delivery time: 2-5 working days

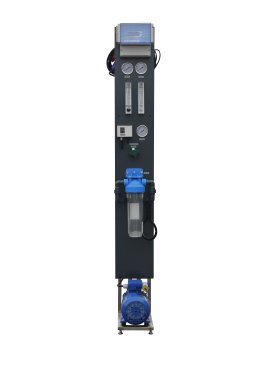

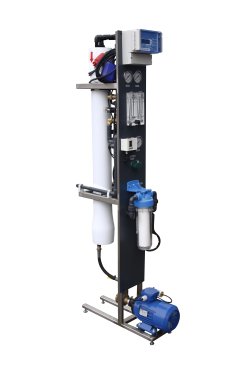

WATEX WRO200 reverse osmosis system

Advantages: extra compact, high quality performance, competitive price

Reverse osmosis system for brackish water with flow rate 200-250 liters/hour.
WATEX WRO series reverse osmosis systems are used for low mineralised water (up to 4000 ppm) with different flow rates.

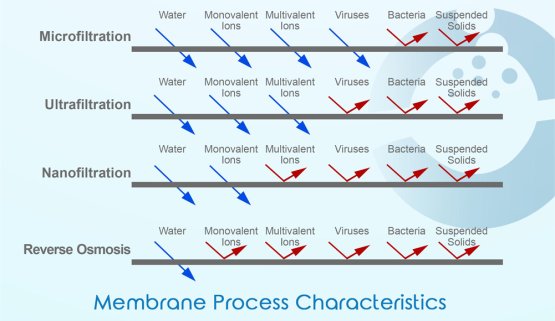

Reverse osmosis system purify water from 99.2% of salts, pyrogenic substances and microorganisms.
Permeate quality and flow rate depends on intake water salt concentration, temperature, applied pressure, membrane selection and pretreatment.

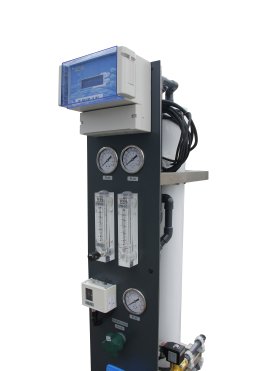

Quality and operation control system:

On-line conductivity meter 0-500 microS/cm
Inlet water low pressure switch and alarm

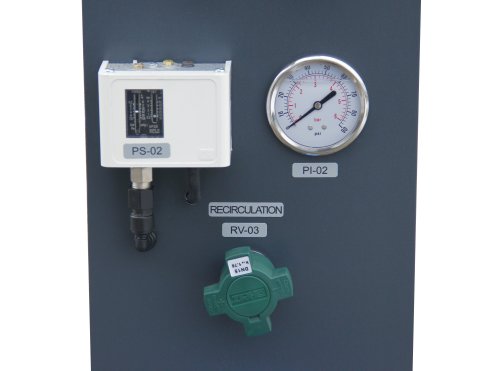

Permeate high pressure switch
Pressure indicators (inlet, after pump, concentrate)

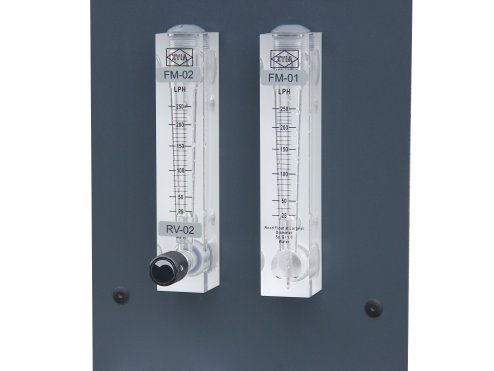

Permeate flow meter
Concentrate drain flow regulation
Pump pressure regulation valve
Water leakage alarm and shut-off
High conductivity alarm
Automatic/manual flushing system
Recirculation/recovery regulation

Notes:

Data based on following parameters: 1500 mg/l NaCl solution at 10 bars, 25 ^oC, Salt rejection 99.2%, SDI<3 brackish and low-mineralized water
Pretreatment required: sediment filtration, iron removal, softening or antiscalant dosing, adsorption by activated carbon if chlorine presence
Clean water reservoir minimum 200 liters required after reverse osmosis system

Optional features

Antiscalant dosing system
PLC operating controller
Temperature switch
Stainless steel pipes and fittings (AISI304, AISI316)
Pretreatment built-in
Dry-run protection of the reverse osmosis pump

To receive quotation, please fill RO order form watex_wro_order_form.pdf and send it to: info@watex.eu

Show full description

Technical parameters	Unit	Model
Technical parameters	Unit	WATEX WRO200
Flow rate * Qnom	liters/hour	200-250
Flow rate * Qmax	liters/day	4800
Recovery max	%	70
Operating pressure max	bar	15
System size (Length x Width x Height)	cm	50 x 20 x 160
Power consumption	W	550
Membrane element model&quantity		CSM RE4040-BLN x 1
Water - drain connection	inches	3/4'', 1/2'', 1/2''
Weight	kg	40
System frame	Stainless steel AISI304
High pressure pump	MWG
Quality control	Electrical conductivity, low pressure alarm system
Control system	Pressure switches, manometers, flow meters, regulating valve
Piping system	PVC-U fittings and piping PN16

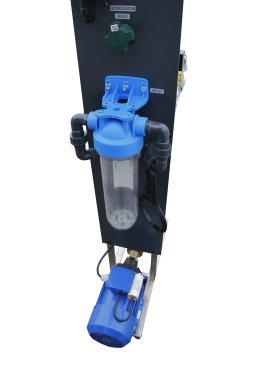

Inlet sediment filter	PP 5 micron cartridge
