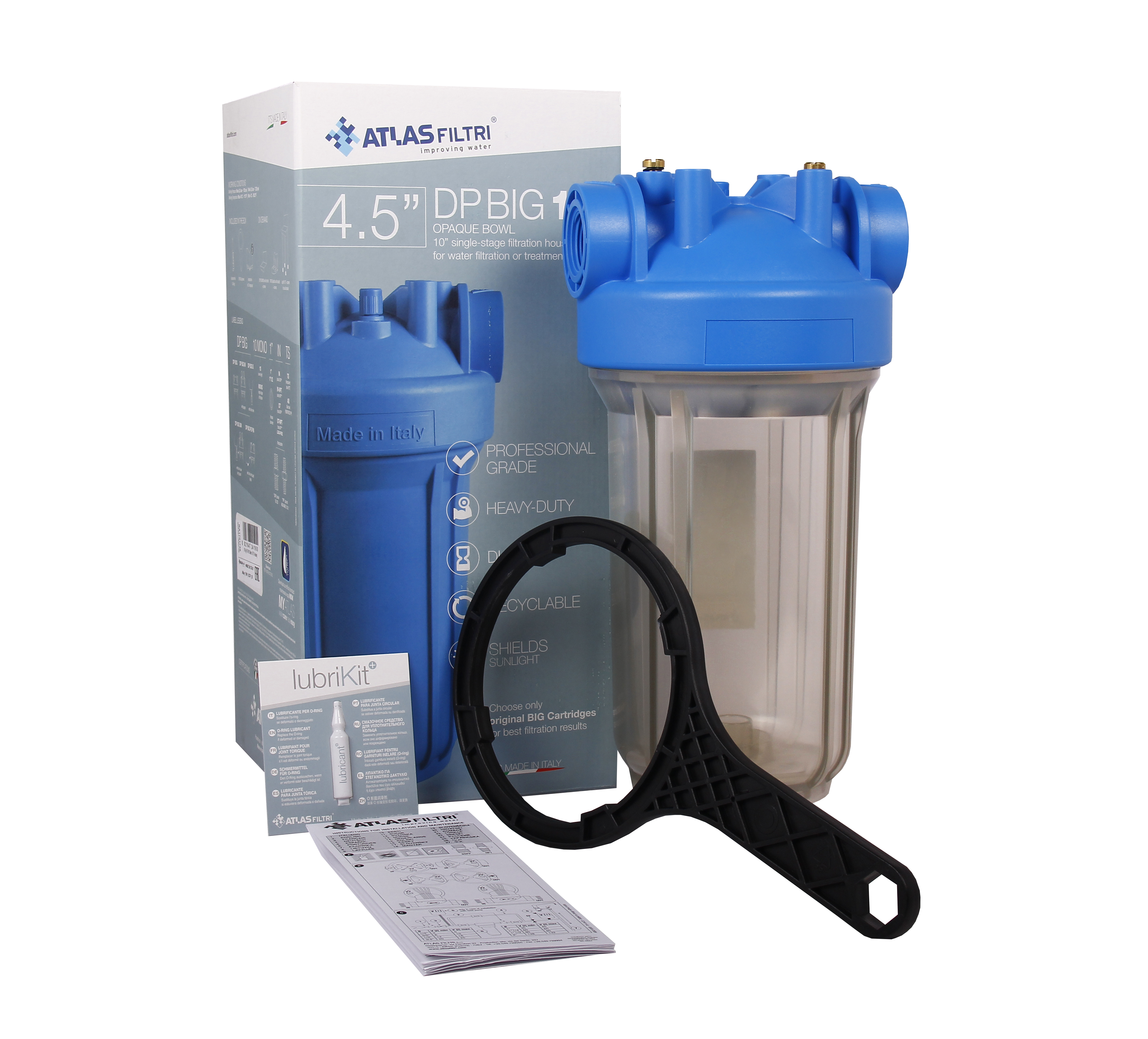

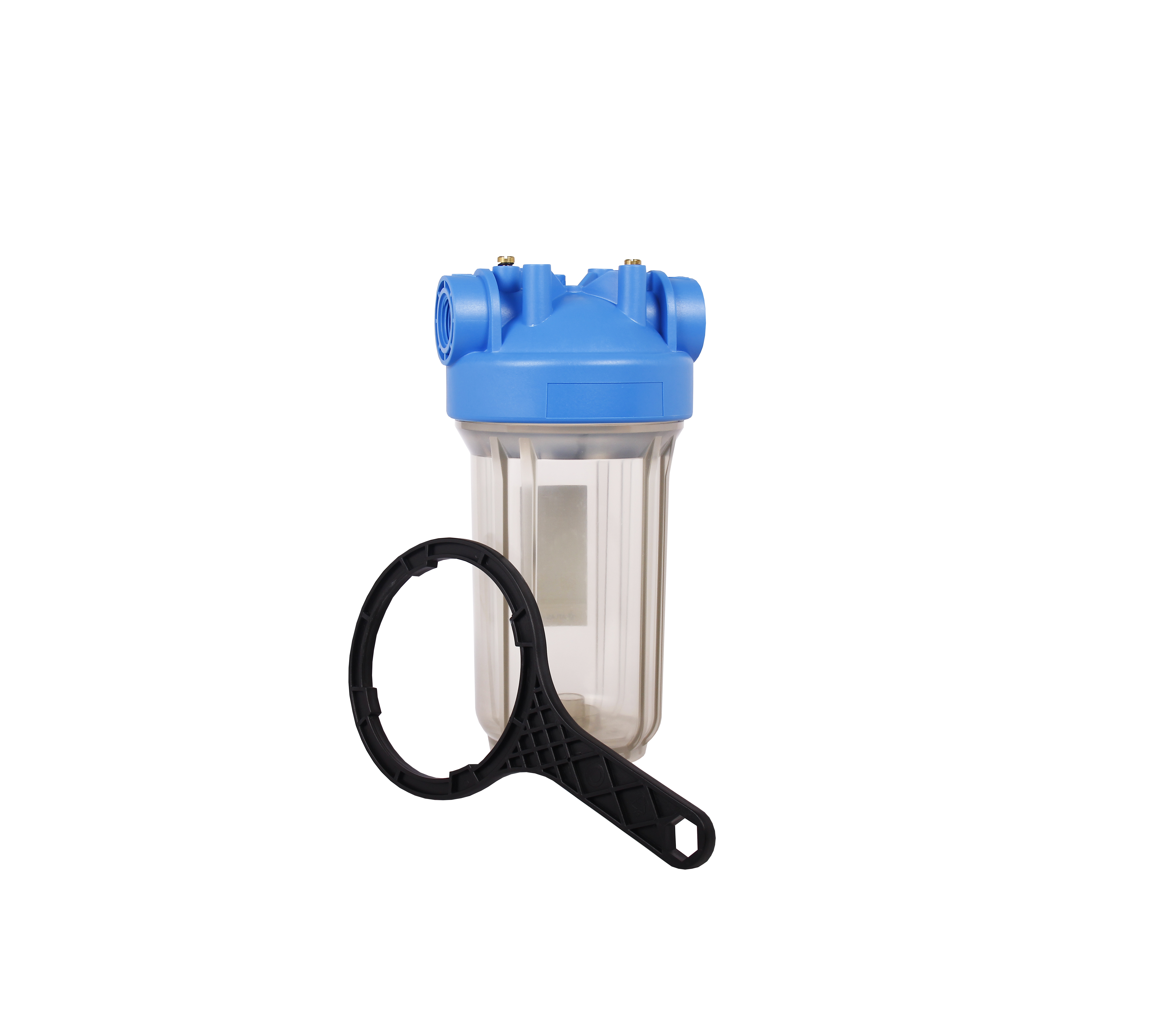

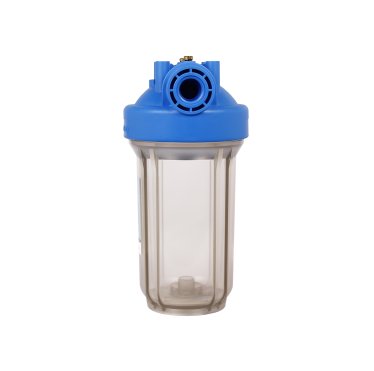

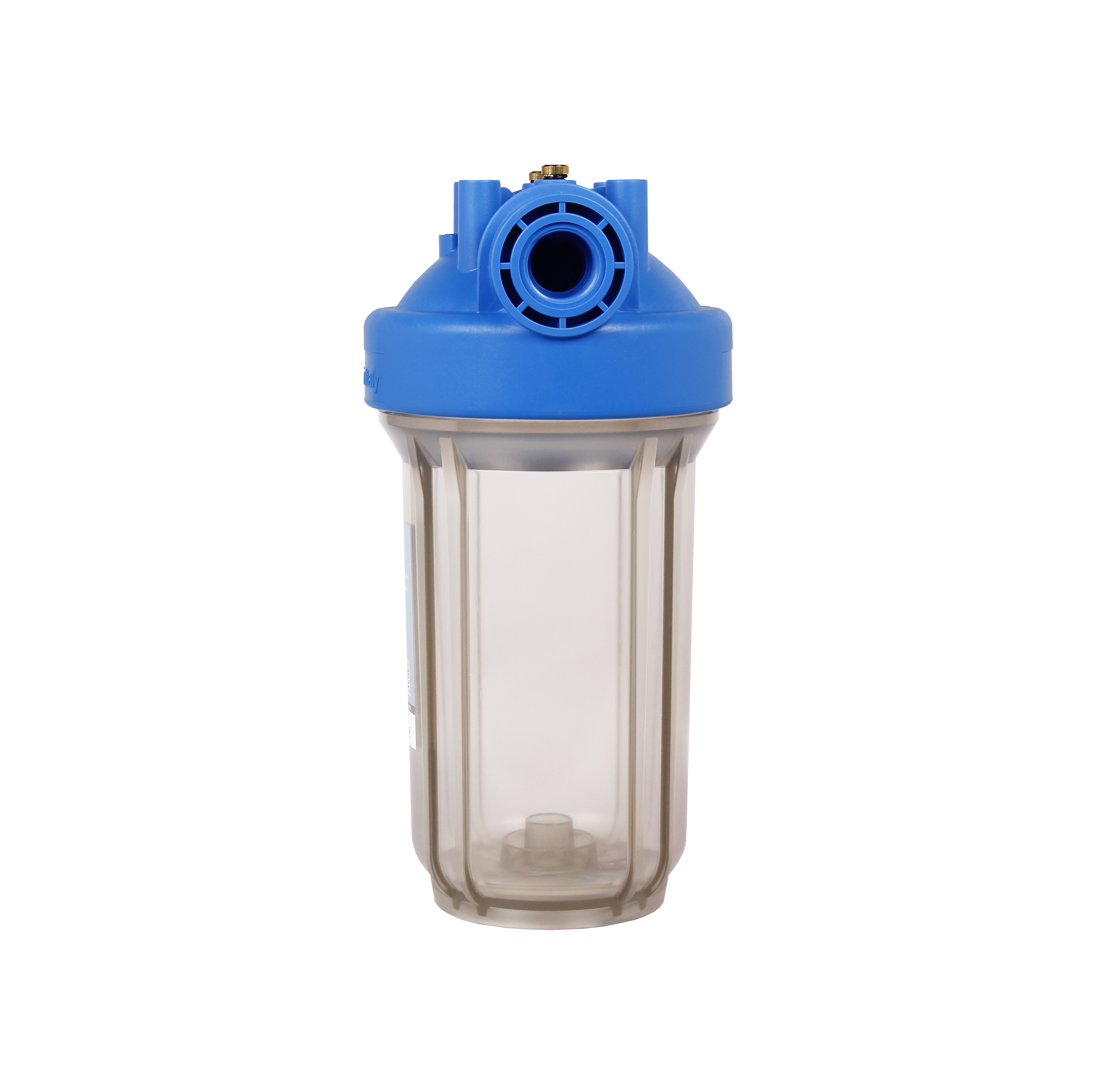

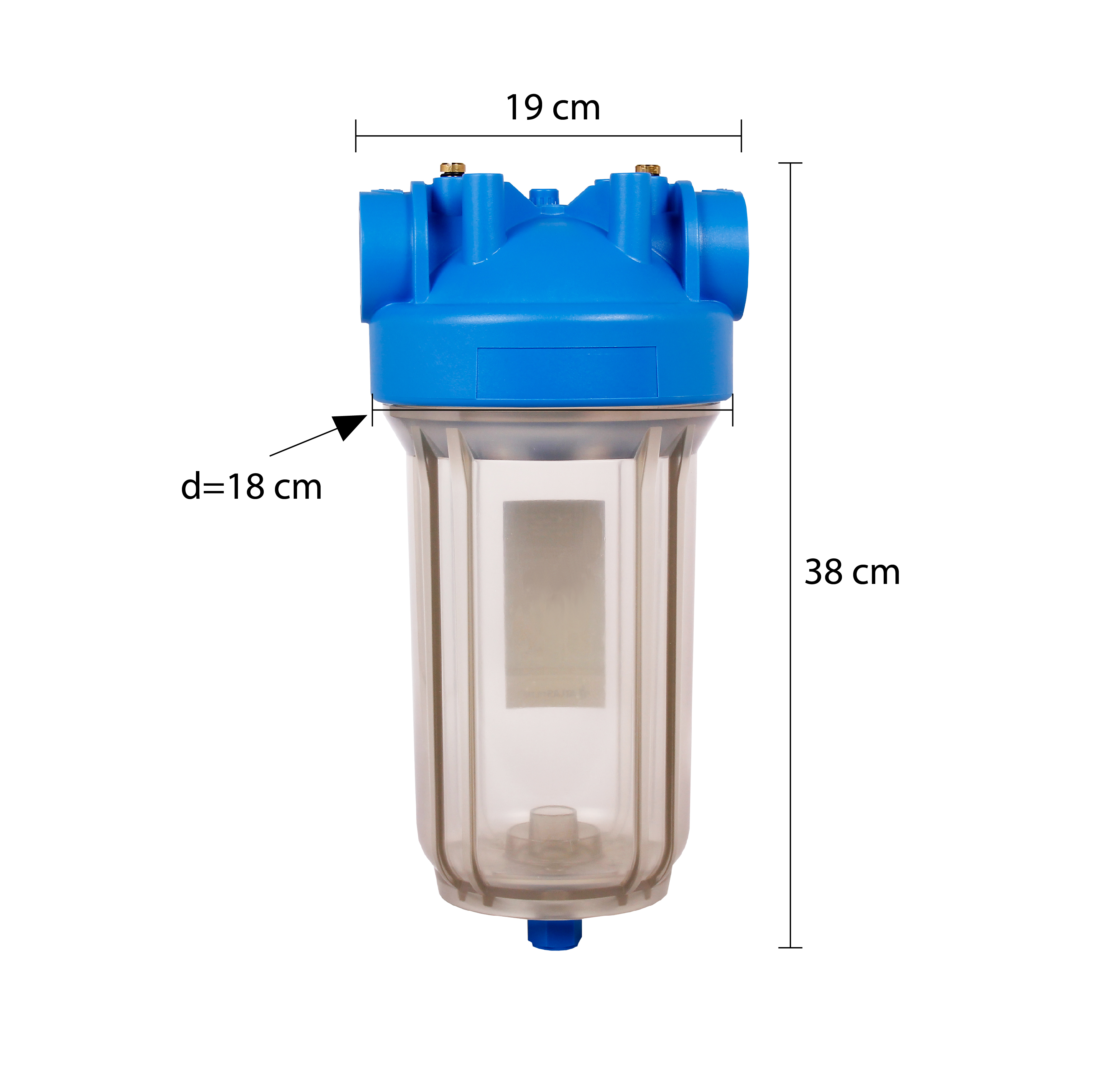

DP BIG 10" MONO
Description. DP BIG 10" MONO is a single-stage cartridge housing for SX (DOE) cartridges with an outer diameter of 4.5". The PS PM version is supplied with plugs on the heads and bowls and is prepared for connecting pressure gauges and a drain valve (devices not included).

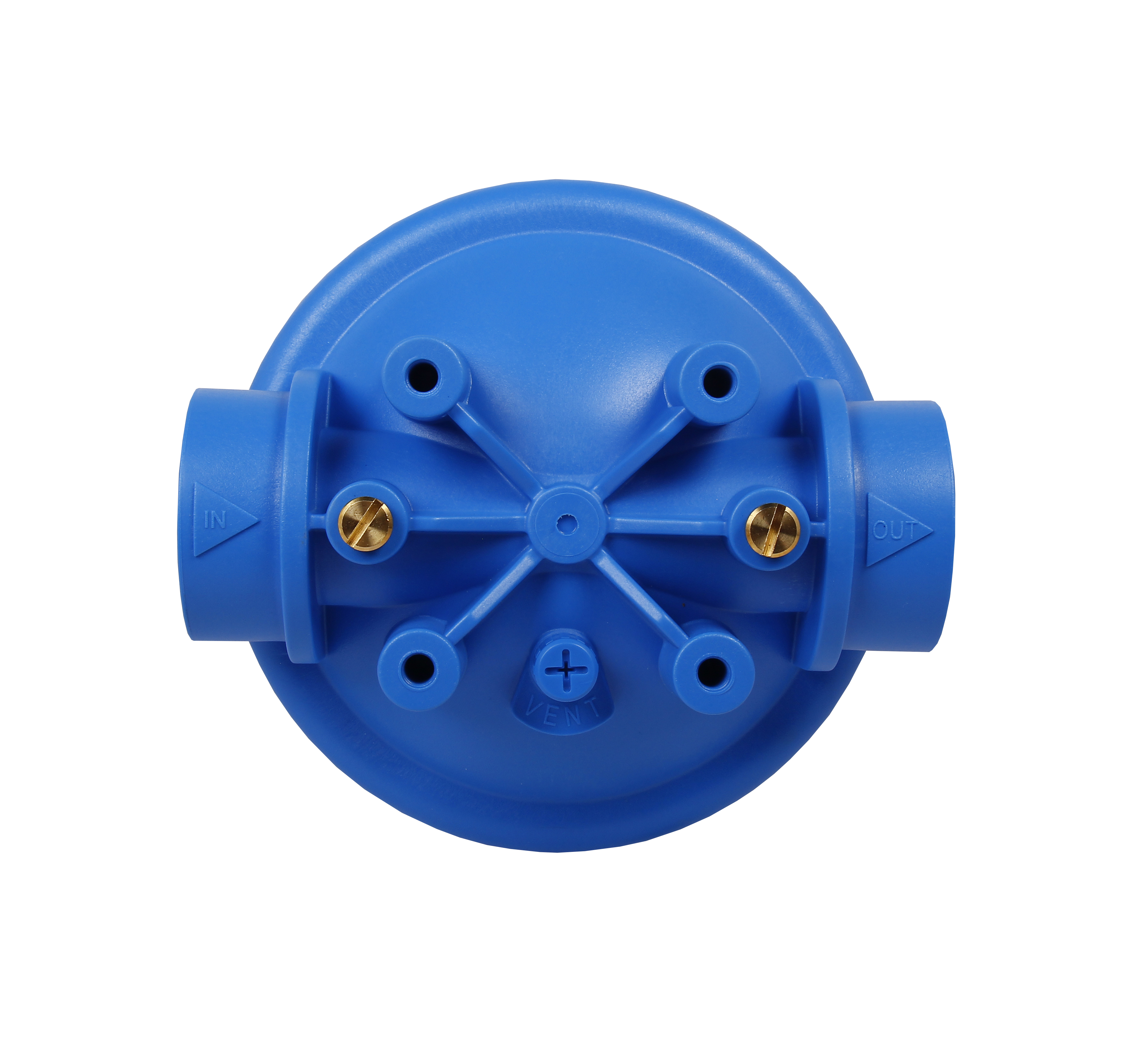

Connections and thread. IN/OUT G 1" BSPP (parallel “G” thread) – European standard sealing on a flat surface/O-ring. (NPT versions available on request.)
Compatibility. SX (DOE) 10" × 4.5" cartridges (mechanical PP, string-wound, GAC, CTO, etc.), intended for higher flow in households and businesses.

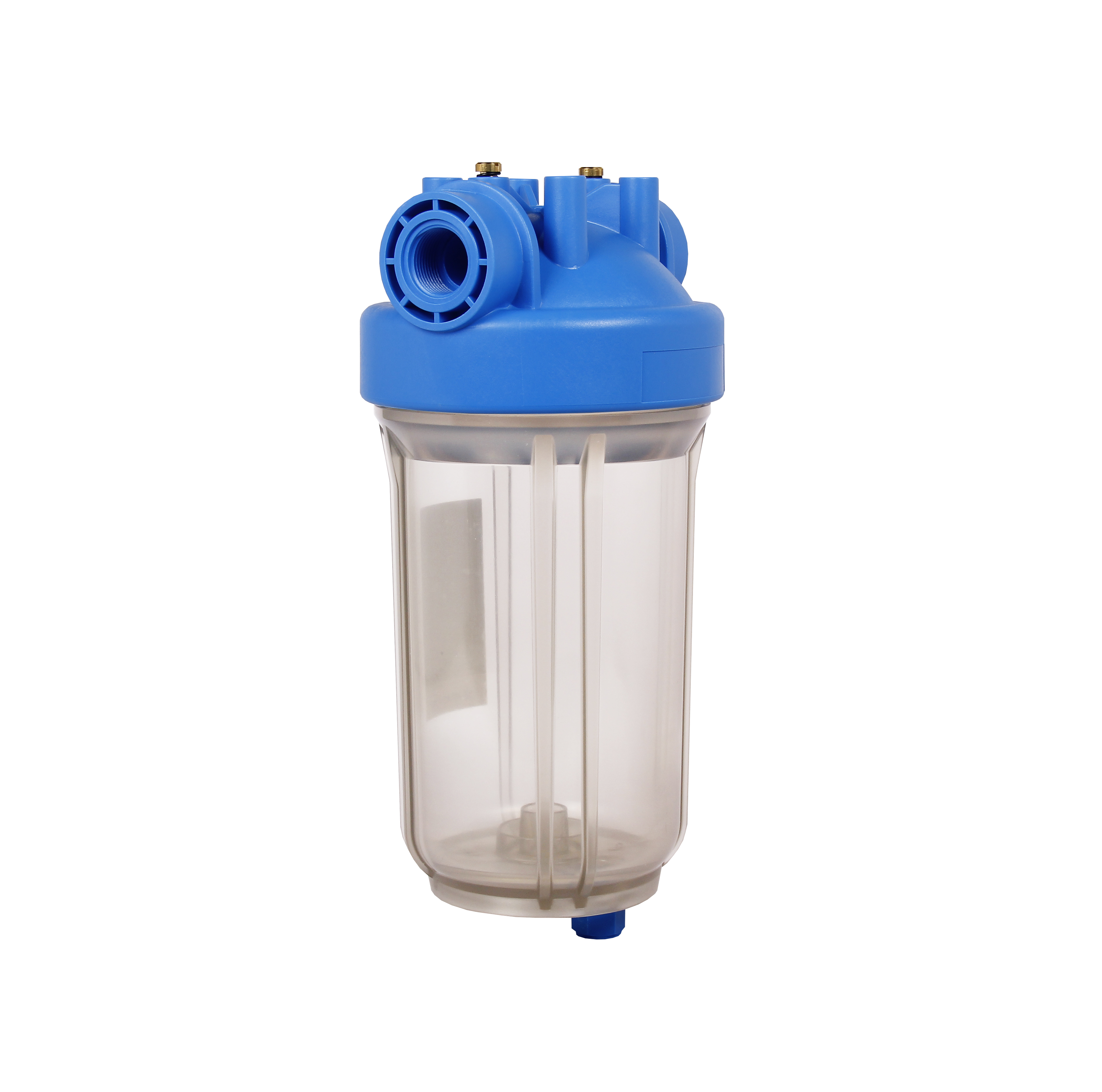

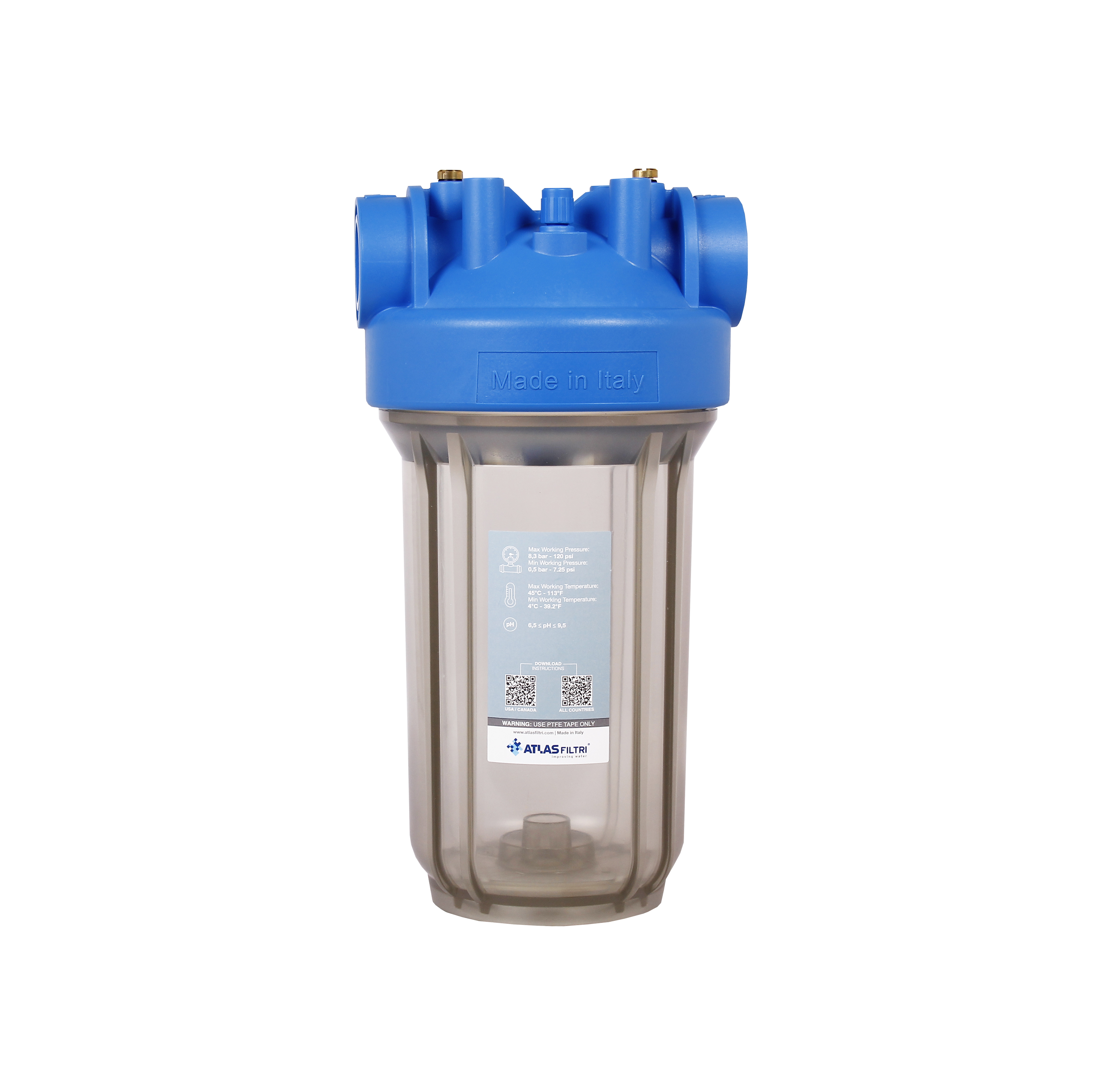

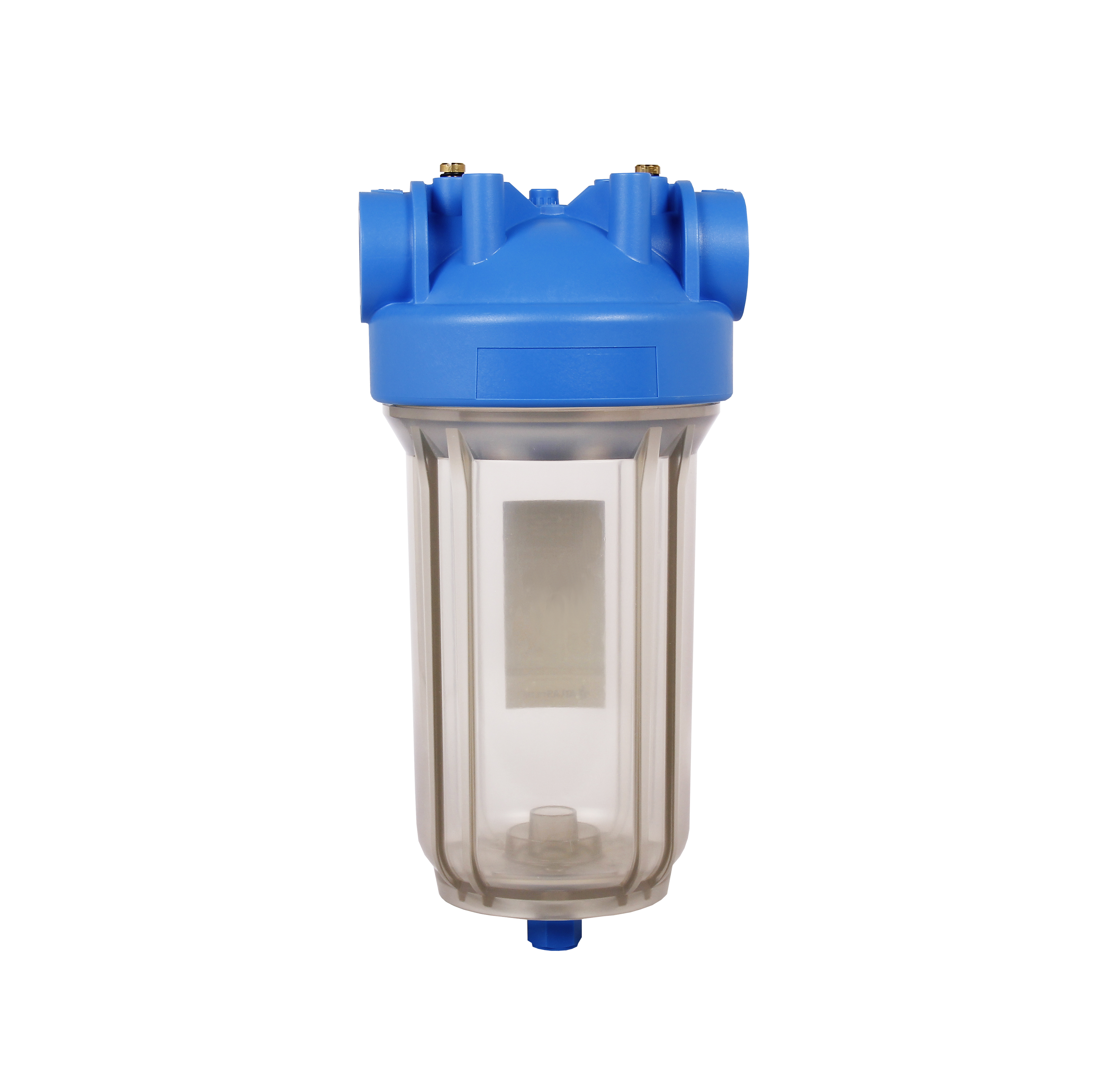

Bowl. 10" height, transparent.
Safety and maintenance. The design provides ports for installing pressure gauges and a drain valve (PS PM), enabling pressure/filter status control and rinsing while reducing leakage risk.
Application. Prefiltration and main line: reducing silt, sand, rust and organic impurities depending on the chosen cartridge.
Show full descriptionTechnical data:
|
Width cm |
Height cm |
Length cm |
Weight kg |
|---|---|---|---|
|
18.50 |
26.00 |
19.00 |
1.50 |
Show full descriptionBy clicking on the following link, you can view and download the following:
MONO DP BIG PS PM water filter housing ATLAS FILTRI_instruction_ENG
