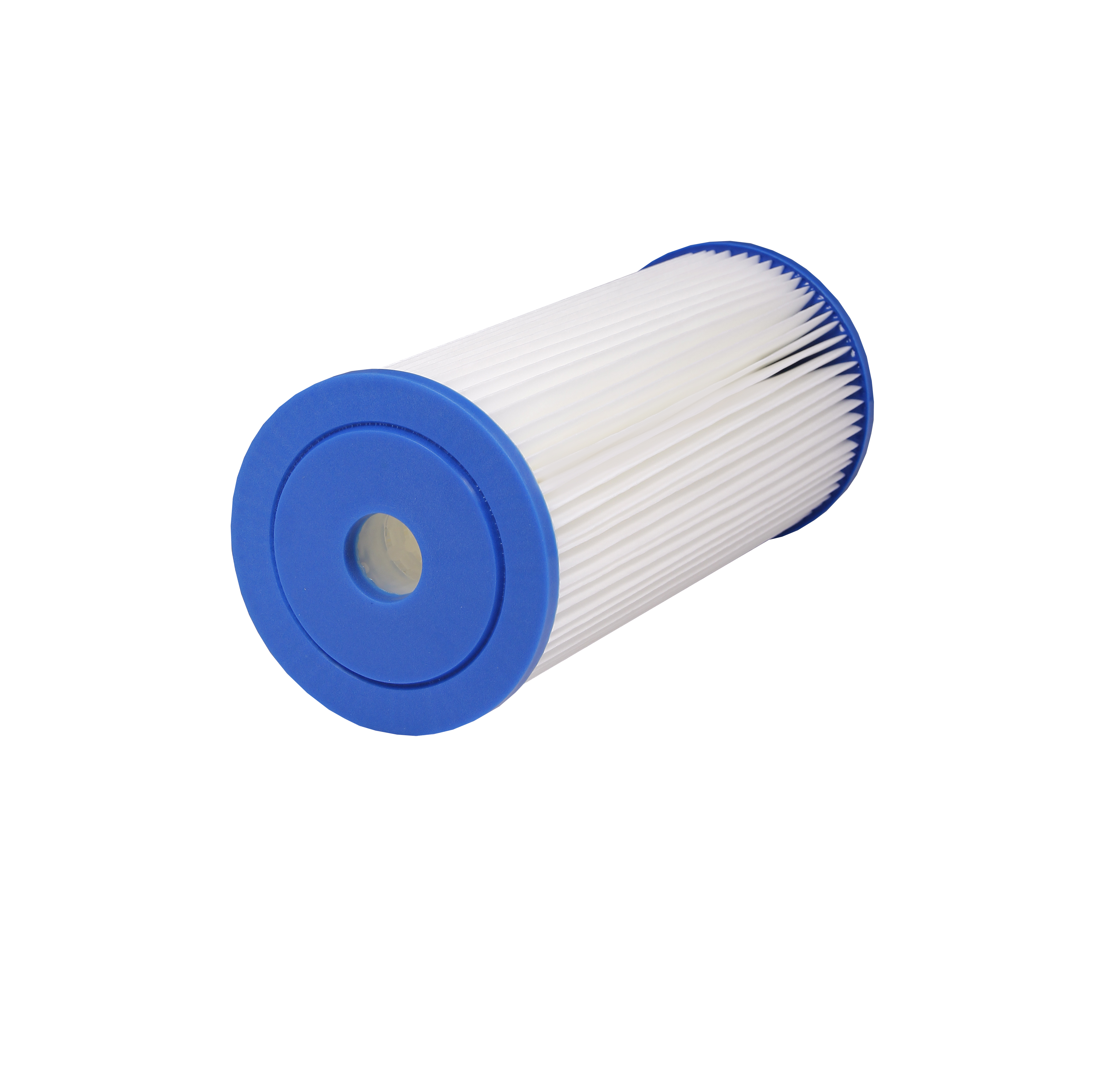

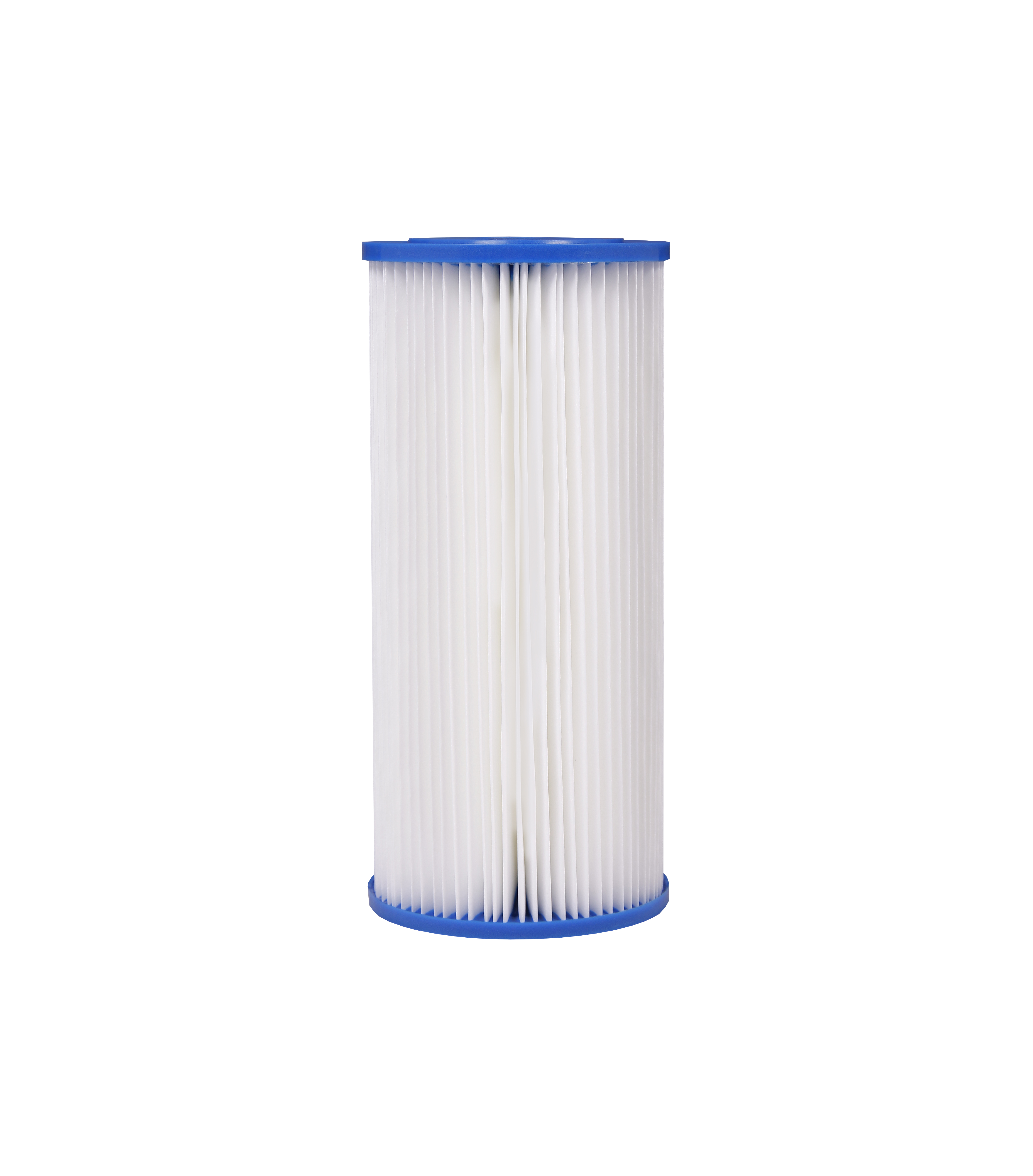

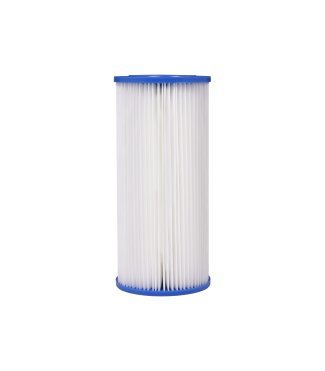

HIDROTEK cartridge pleated BIG BLUE 10" 20 microns

Replaceable filter element – pleated cartridge with an increased filtration area. Suitable for reducing mechanical impurities in cold water.

• Retains sand, sediments, rust, and other suspended solids.
• Filtration rating: 20 microns.
• Material: polypropylene (PP) fiber, pleated surface for lower pressure drop.
• Max. operating temperature: +39 °C.
• Max. operating pressure: 6 bar.

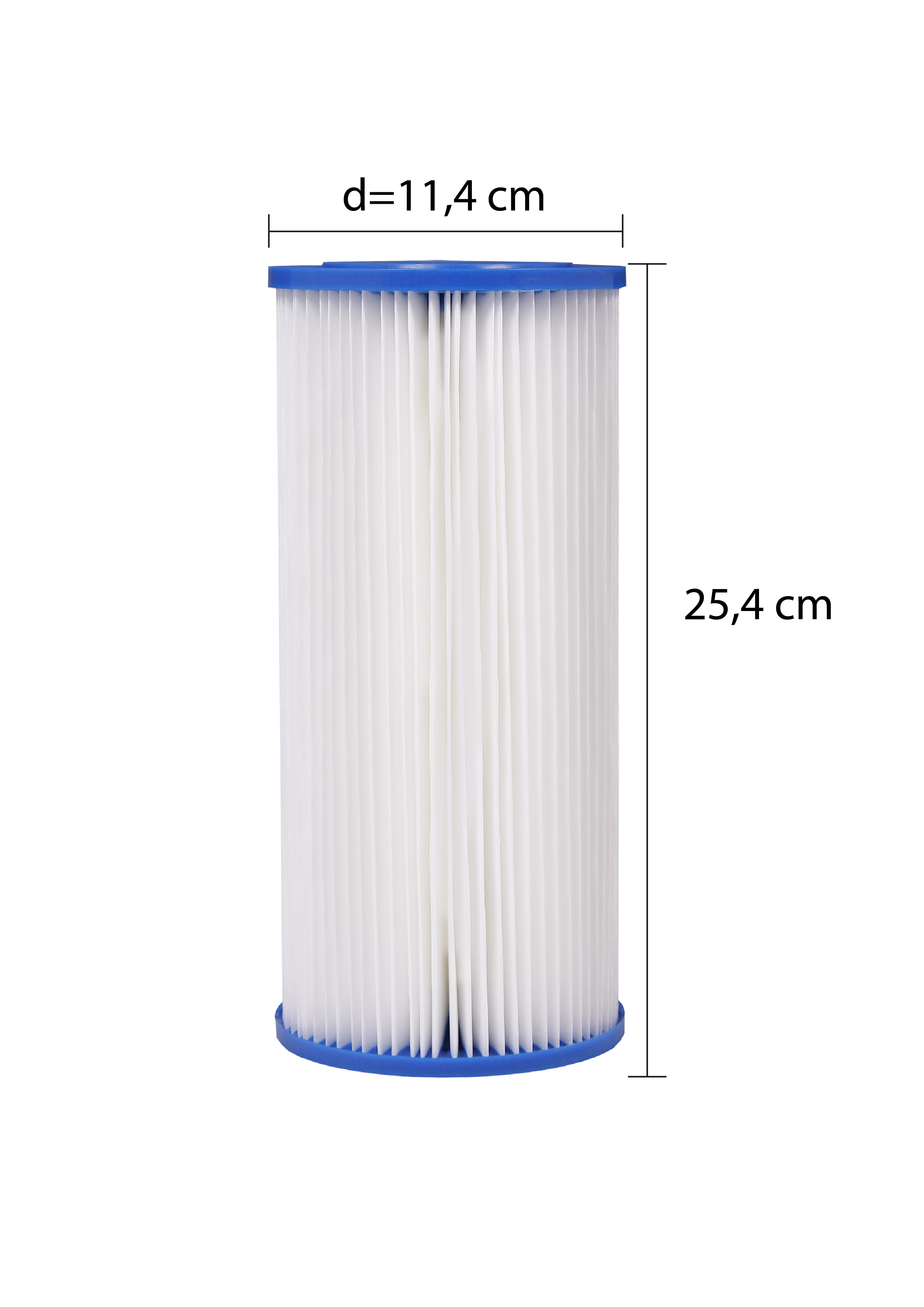

• Compatibility: 10″ BIG BLUE (4.5″ × 10″) filter housings.
• Maintenance: depending on contamination, can be gently rinsed and temporarily reused (if fouling is inorganic).
• Replacement frequency depends on feed water quality and the element’s fouling rate.
• Main replacement indicator: increasing pressure drop after the filter or a sharp flow decrease.

Packaging dimensions: 28 × 15 × 15 cm.
