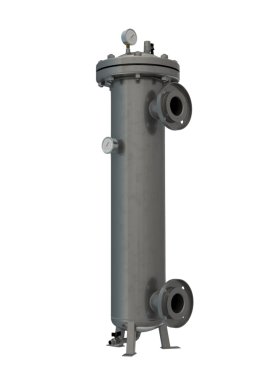

Bag water filter WATEX BFNT (AISI304)

Manufacturer: WATEX
Product code: BFNT
Combination does not exist
Do you have any questions?
Manufacturer: WATEX
Product code: BFNT
Combination does not exist

WATEX BFNT water filter is designed for high flow rates with a filtration rating from 5–200 microns.

Widely used for sand-producing deep wells, return-line circulation in heating systems, and agricultural irrigation when filtering surface water.
The main task is to retain coarse particles and protect downstream equipment with small passages (nozzles, jets, shut-off valves, etc.) from clogging.
BFNT filters made of AISI 304 stainless steel are intended for drinking water with a stable pH 6.5–8.5.

Operating principle

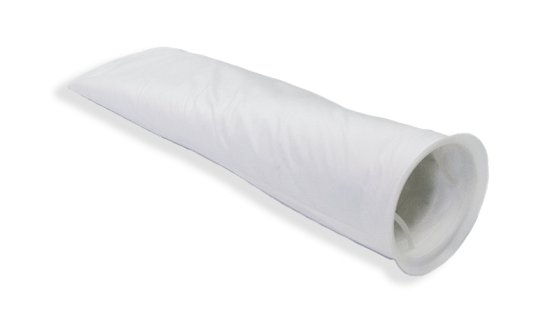

Based on bag filters: as water flows through, particles larger than the selected bag rating are trapped and collected inside the bag. The unit is equipped with a bag element that can be removed, rinsed and re-used or replaced.

If acidic or alkaline waters/substances must be filtered, we can manufacture units to order from AISI314 stainless steel.

Removes: turbidity, oxidized iron, sand, limescale deposits, clay particles.


To ensure uninterrupted flow, install two filters in parallel.
To increase capacity, install multiple filters in parallel.





















Show full description
  • Flow rate: Qnom = 20 m3/h
  • Bag filters quantity: 1 pc.
  • Body material: Stainless steel 304
  • Connection size: DN76

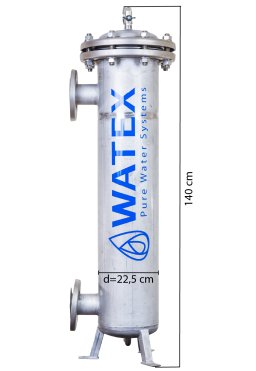

  • Size (diameter x height): 225 x 1006 mm
  • Control: pressure gauge before and after
  • Maximum working pressure: 12 bar
  • Filtration rate: 5, 25, 50, 100, 200 microns
  • Temperature: up to 75oC
  • Filtration element: bag type

Width cm

Height cm

Length cm

Weight kg

45.00

5.00

120.00

50.00
