Iron removal filter WATEX RCMB16x2

Manufacturer: WATEX
Product code: RCMB16X2
Combination does not exist
  • A simple solution for 5 problems - turbidity, iron, manganese, odour, arsenic
  • Regeneration does not require reagents - no salt, no potassium permanganate (KMnO4)
  • Effective working even at low pH and high content of organics
  • High filtration capacity
  • Easy installation and operation
  • Filter service life is more than 10 years
  • Natural, environmentally friendly filtration process. Do not impair the water quality
  • Automatic purification and regeneration
  • High quality materials, components
  • Applicable for private houses, cottages, guesthouses, farms

WATER QUALITY PROBLEM

Iron and manganese often causes the main problem of the waterworks. When water gets in contacts with air, it changes the colour, turbidity increases and sediments appears. Water has a metallic taste. Water pipes are clogged and sanitation at the consumer becomes dirty.

APPLICATION

WATEX RCMBx2 series filters are designed to purify water from turbidity, iron, manganese and odor for villages, cities and industrial enterprises. Mainly it is used for groundwater purification.

OPERATING PRINCIPLE

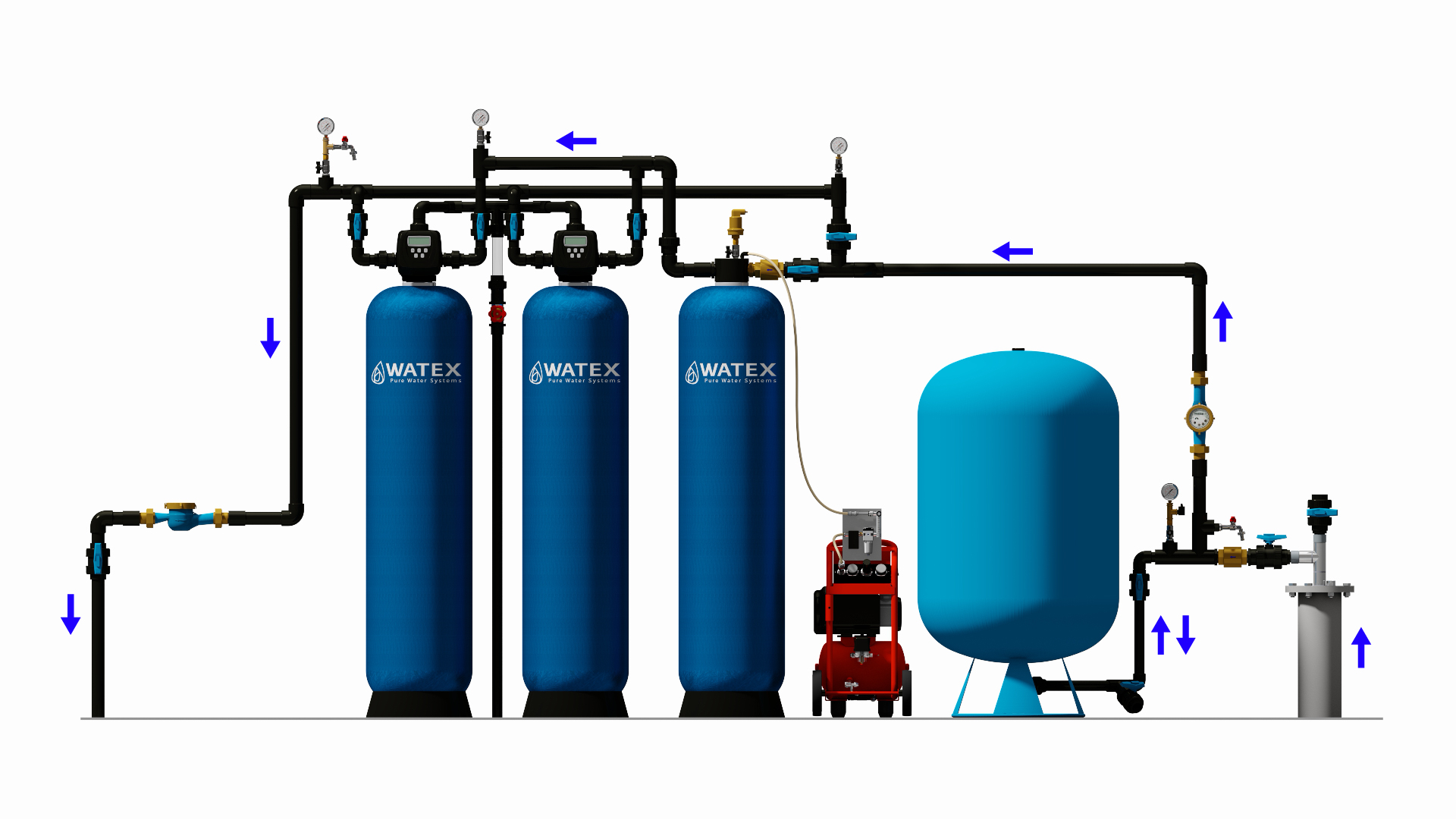

RCMBx2 filter operating principle is based on aeration and filtration. When water is aerated, iron, manganese and mechanical impurities form sediment, which can be filtered. Suspended solids are filtered through filtration media, which has been poured in to filter. Filters depending on pollution levels and water consumption have to be rinsed regularly. Filters after rinsing are regenerated and can purify water. Equipment consists from reactor, two filters and compressor.


Show full description

Technical parameters of equipment

Unit

Model

RCMB13x2

RCMB14x2

RCMB16x2

Flow rate Qnom

m3/h

2.6

3.0

3.6

The amount of water for regeneration

m3

0.17

0.20

0.24

Minimum flow rate for rinsing

m3/h

2.6

3.0

3.6

Tank size (diameter)

inches

13

14

16



m

0.33

0.36

0.41

Tank volume

liters

110

145

183

The amount of filtering material

liters

73

97

122

Dimensions



Length

m

1.29

1.37

1.53

Width

m

0.33

0.36

0.41

Height

m

1.53

1.85

1.87

Water - drain connection

inches

1”

1 ¼”

1 ¼”

Filtration



Iron, manganese, turbidity, odor

Tank material



FRP (fiberglass)

Filtration media



AquaMandix, silica sand 0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm

Operating pressure

bar

2-6

Electric Connection



220V, 50Hz, 1 phase

Electricity consumption

W

3 W



PRECONDITIONS

  • Sewer and electricity 220V connection
  • Input water pressure with a minimum pressure of 2.5 bar
  • Room temperature above 0° C
  • Water temperature to 25° C
  • Correct system installation

SYSTEM MAINTANANCE

Filters will provide with good quality water if operating personnel will ensure proper air supply, and unnecessary air removal and regular rinsing processes. Water purification system does not require specific chemical admixtures that have to be refilled.

PRESSURE TANK

Pressure filter tanks are made from fiberglass with inner PE coating that can hold pressure up to PN10.

FILTRATION MEDIA

For water purification filtration media AquaMandix and quartz sand with different grain size (0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm) is being used. Porous structure of AquaMandix provides a large active surface and provides efficient adsorption and accumulation of sediment.

CONTROL VALVE

The filter is equipped with an automatic Clack control valve which performs filtering and rinsing sequences automatically. Usually rinsing is performed at 2:00 at night.

AIR SUPPLY

For water aeration it is necessary to  install air compressor. Air is injected in the water before it enters reactor.

ADDITIONAL EQUIPMENT OPTIONS:

  • Condensate isolation for tank
  • By-pass valve – For easier assembly
  • Repair and maintenance kit – Spanner wrench, injectors (2 pcs.)
