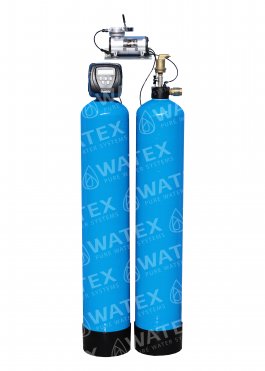

Iron removal filter WATEX RCMB10

Manufacturer: WATEX
Model: RCMB10
Combination does not exist
782.99
947.42



  • A simple solution for 5 problems - turbidity, iron, manganese, odour, arsenic
  • Regeneration does not require reagents - no salt, no potassium permanganate (KMnO4)
  • Effective working even at low pH and high content of organics
  • High filtration capacity
  • Easy installation and operation
  • Filter service life is more than 10 years
  • Natural, environmentally friendly filtration process. Do not impair the water quality
  • Automatic purification and regeneration
  • High quality materials, components
  • Applicable for private houses, cottages, guesthouses, farms.



WATER QUALITY PROBLEM

Iron and manganese often causes the main problem of the waterworks. When water gets in contacts with air, it changes the colour, turbidity increases and sediments appears. Water has a metallic taste. Water pipes are clogged and sanitation at the consumer becomes dirty.



SOLUTION

The best solution for this problem is oxidation and sand filtration. WATEX RCMB series filters are designed to purify water from turbidity, iron, manganese and odor for private houses. Mainly it is used for groundwater purification.



OPERATING PRINCIPLE

RCMB filter operating principle is based on aeration and filtration. When water is aerated, iron, manganese and mechanical impurities form sediment, which can be filtered. Suspended solids are filtered through filtration media, which has been poured in to filter. Filters depending on pollution levels and water consumption have to be rinsed regularly. Filters after rinsing are regenerated and can purify water. Equipment consists from reactor, filter and compressor.











Show full description
PRESSURE TANK

Pressure filter tanks are made from fiberglass with inner PE coating that can hold pressure up to PN10.



FILTRATION MEDIA

For water purification filtration media AquaMandix and quartz sand with different grain size (0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm) is being used. Porous structure of AquaMandix provides a large active surface and provides efficient adsorption and accumulation of sediment.



CONTROL VALVE

The filter is equipped with an automatic Clack control valve which performs filtering and rinsing sequences automatically. Usually rinsing is performed at 2:00 at night.



AIR SUPPLY

For water aeration it is necessary to  install oilless air compressor. Air is pumped in the water before it enters aeration tank.



Technical parameters of equipment

Unit

Model

RCMB10

RCMB12

RCMB13

Flow rate Qnom

m3/h

0.8

1.0

1.3

The amount of water for regeneration

m3

0.11

0.13

0.17

Minimum flow rate for rinsing

m3/h

1.6

2.0

2.6

Tank size (diameter)

inches

10

12

13

m

0.25

0.30

0.33

Tank volume

liters

64

85

110

The amount of filtration media

liters

43

57

73

Dimensions









Length

m

1.06

1.21

1.29

Width

m

0.25

0.30

0.33

Height

m

1.53

1.48

1.53

Water - drain connection

inches

1”

1”

1”

Filtration



Iron, manganese, turbidity, odor

Tank material



FRP (fiberglass)

Filtration media



AquaMandix, silica sand 0.4x0.8 mm, 0.7x1.25 mm, 1x3 mm, 3x5 mm

Operating pressure

bar

2-6

Electric Connection



220V, 50Hz, 1 phase

Electricity consumption

W

3 W



PRECONDITIONS

  • Sewer and electricity 220V connection
  • Input water pressure with a minimum pressure of 2.5 bar
  • Room temperature above 0° C
  • Water temperature up to 25° C
  • Correct system installation



SYSTEM MAINTENANCE

Filter will provide with good quality water if operating personnel will ensure proper air supply, and unnecessary air removal and regular rinsing processes. Water filter does not require specific chemical reagents that have to be refilled.

Show full description

Additional equipment options:

  • Condensate isolation for tank;
  • By-pass valve – For easier assembly.
