Iron removal filter WATEX CMB14

Manufacturer: WATEX

Product code: CMB14

Price without VAT

€ 800.00

Price with VAT

€ 968.00

– +

In stock:

Delivery time: 2-5 working days

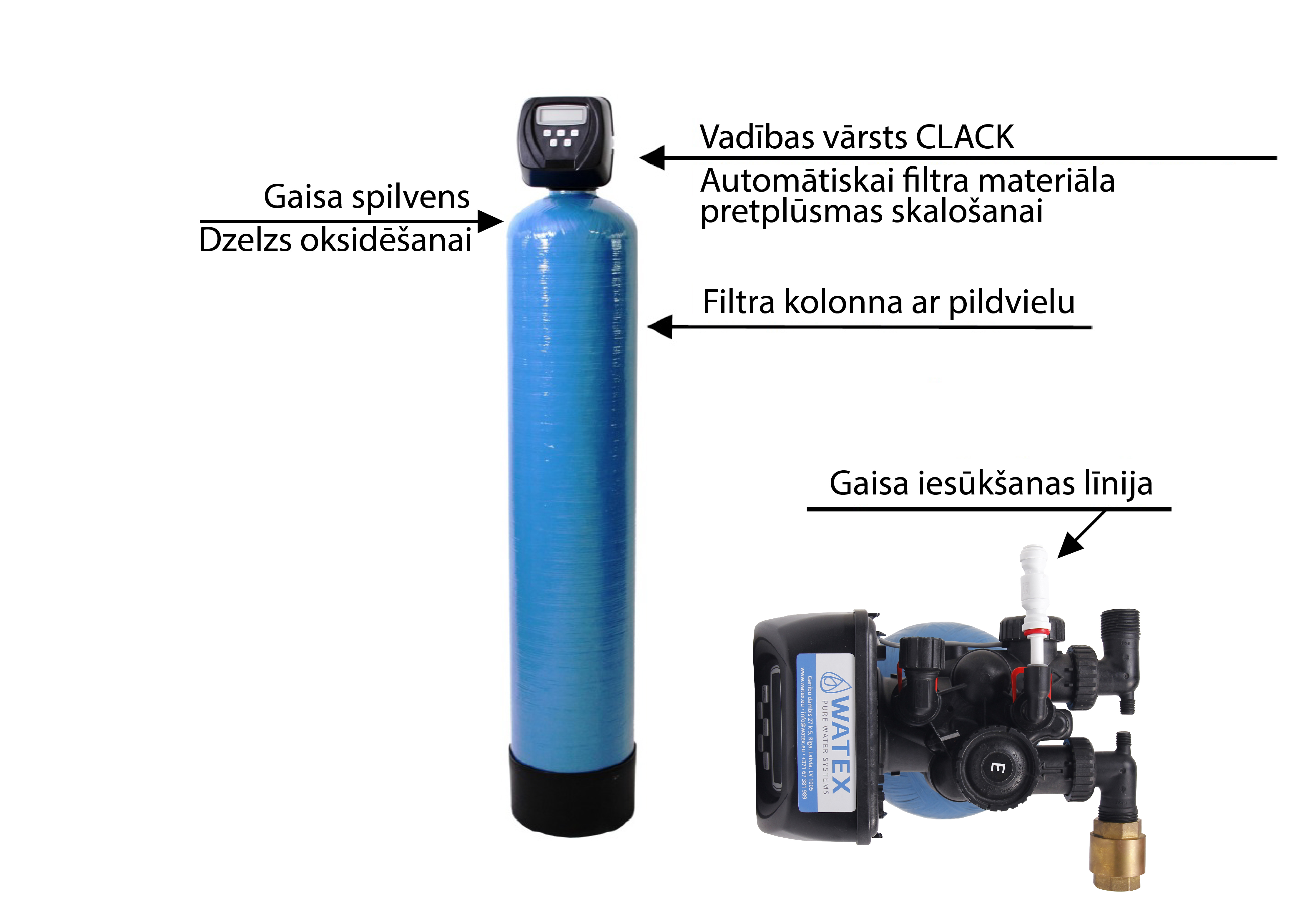

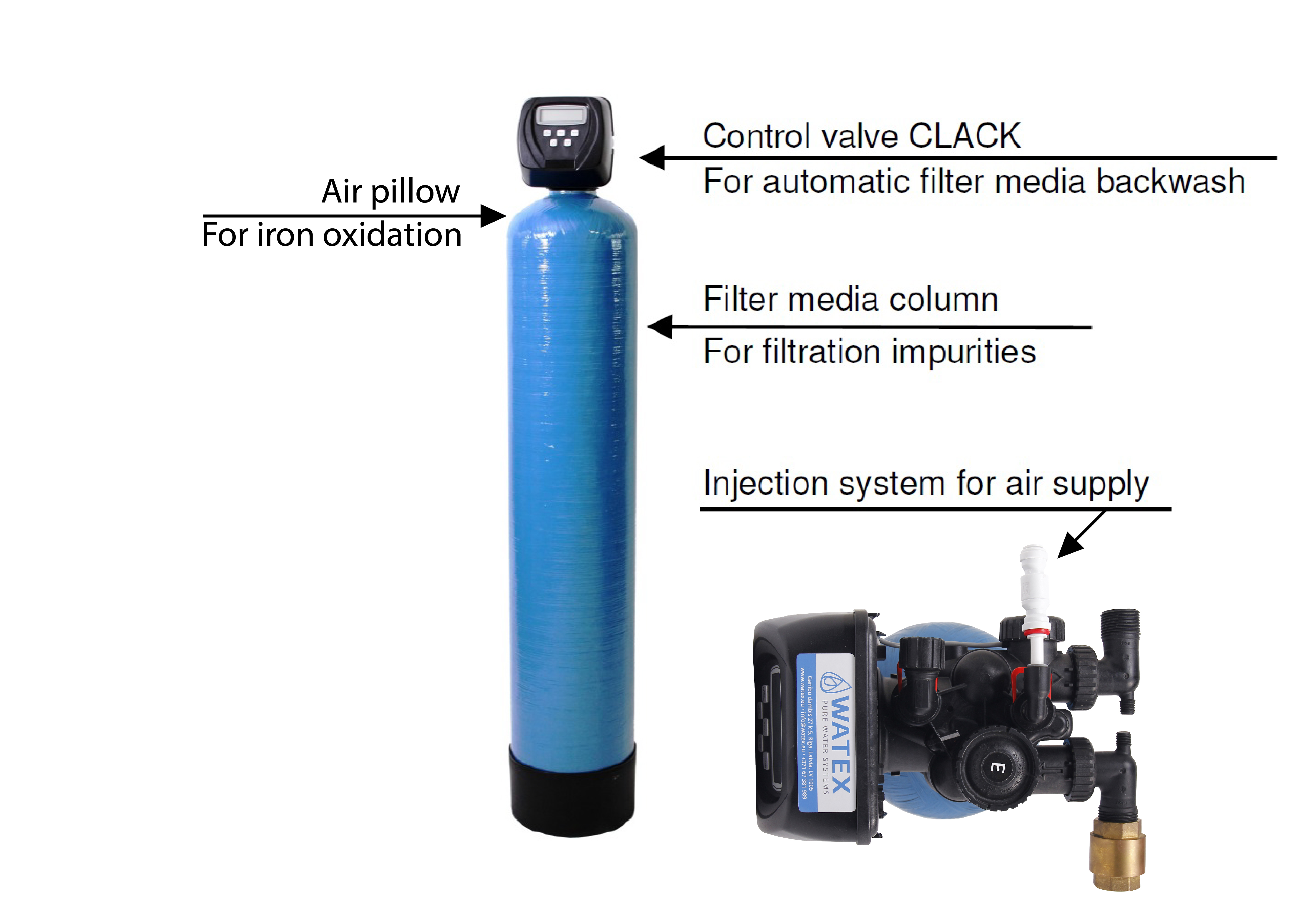

WATEX CMB14 is automatic water filter for water treatment that can filtrate iron, manganese, odour, turbidity and arsenic, without the use of any reagents. It is based on the oxidation and filtration method. WATEX CMB consists of filter tank, automatic control valve and filtration media. Due to air pillow in the tank, substances that are in water are oxidized and filtered. Filter need drain and electricity connection. Filter is designed for high flow rate and low pressure loss. Rinsing water can be directly discharged to biological wastewater treatment plant.

WATEX CMB14 water filter is also used as a pre-filter for softener or organic removal filter, especially if the water has a specific smell.

Main advantages:

A simple solution for 5 problems - turbidity, iron (up to 300 μg/l), oxidized manganese, odour, arsenic
Regeneration does not require reagents - no salt, no potassium permanganate (KMnO₄)
Effective working even at low pH and high content of organics
Easy installation and operation
Filter service life is more than 10 years
Natural, environmentally friendly filtration process. Do not impair the water quality
Automatic purification and regeneration
High quality materials, components
Apply for private houses, cottages, guesthouses, small apartment houses

Show full description

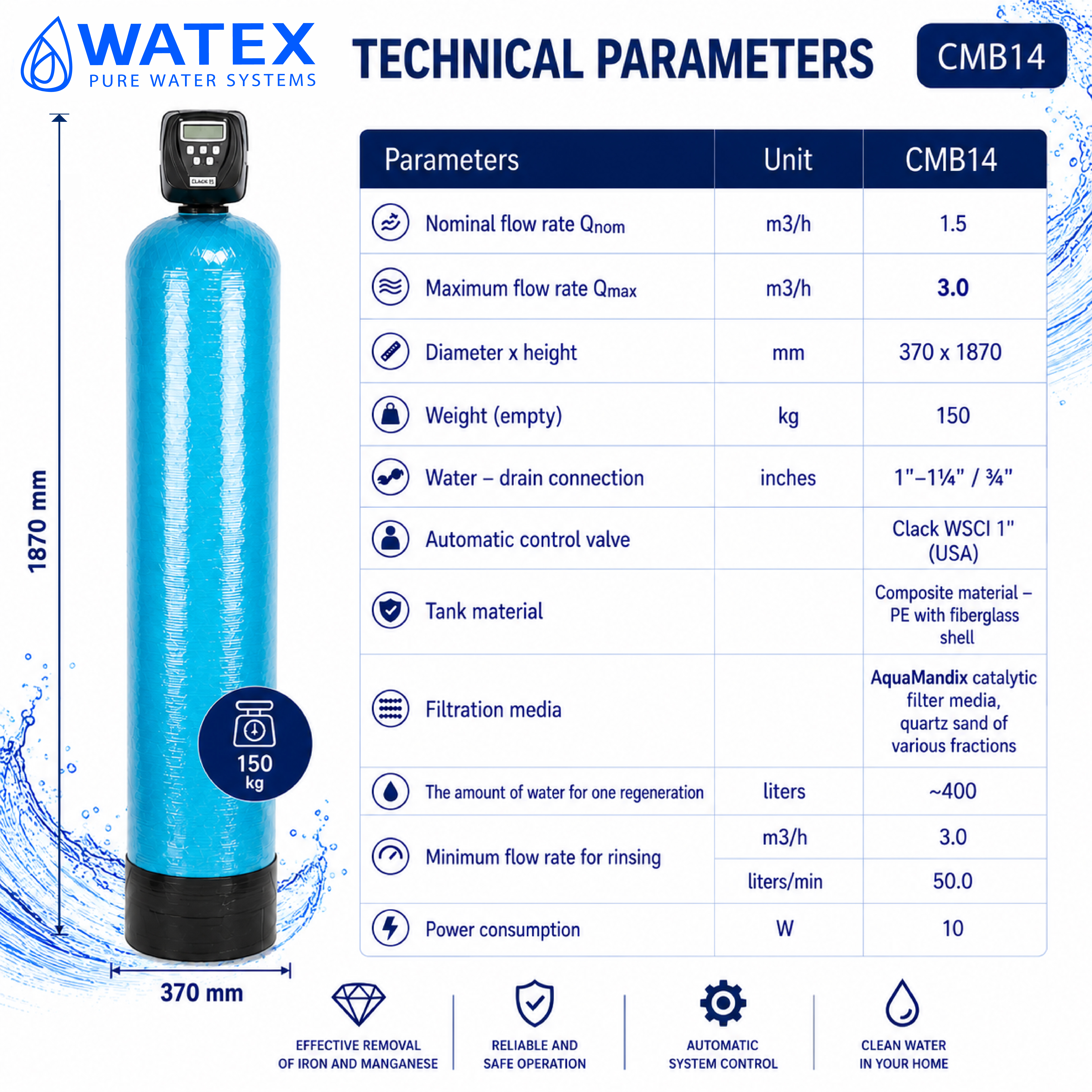

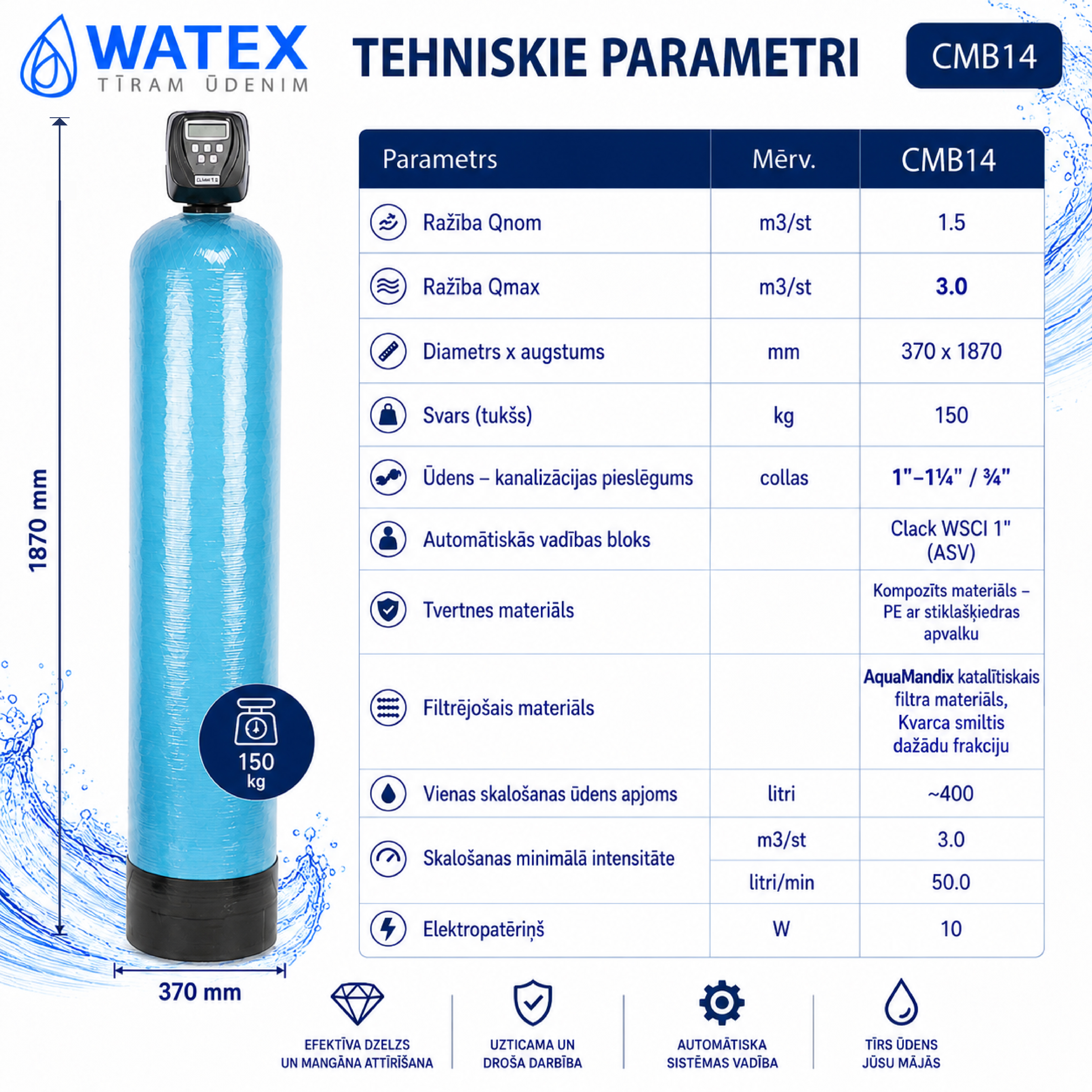

Technical parameters of filter	Unit	WATEX CMB14
Flow rate Q_nom	m³/h	1.5
Flow rate Q_max	m³/h	3.0

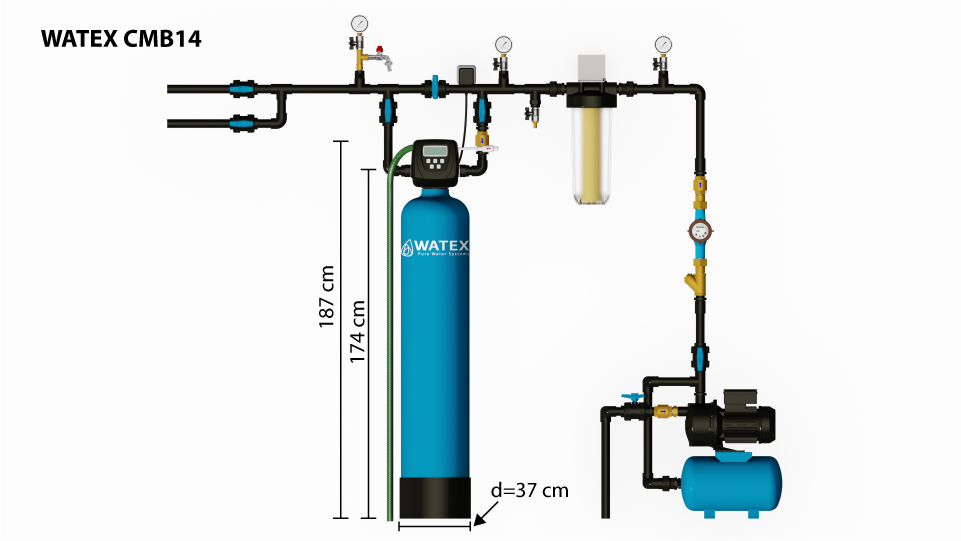

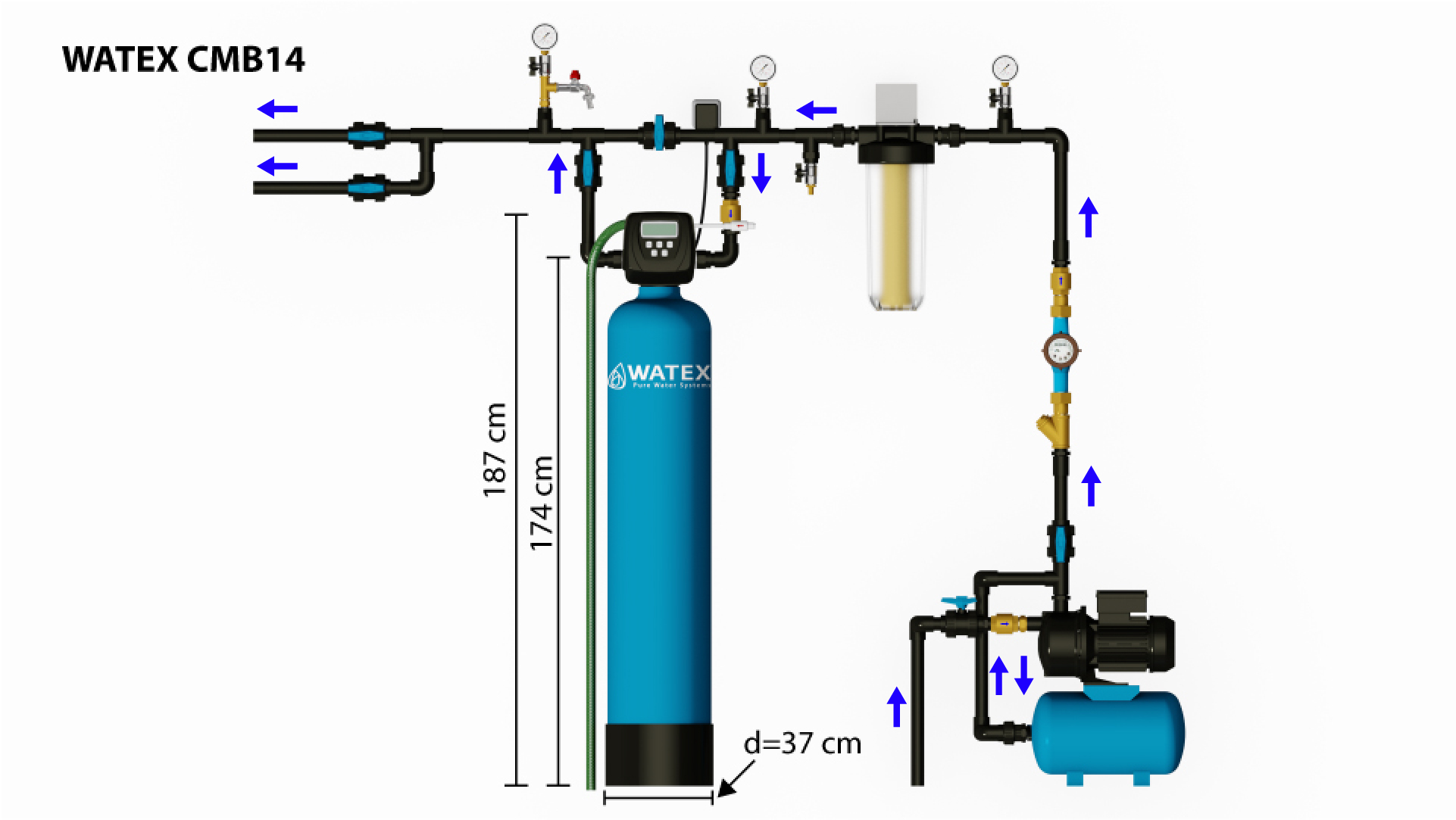

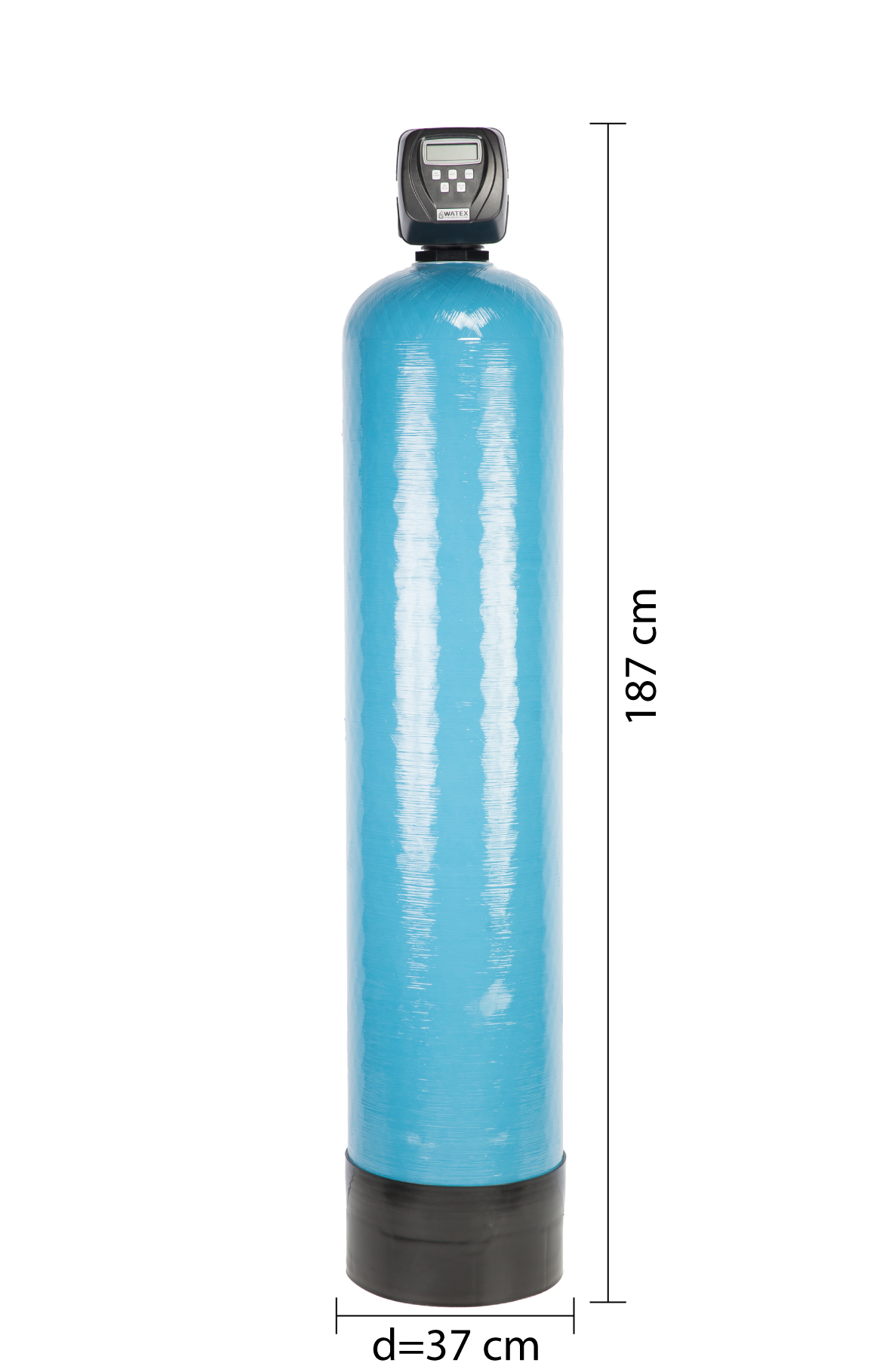

Diameter x height	mm	370 x 1870
Weight (empty)	kg	150
Water – drain connection	inches	1,25”- 1''
Automatic control valve		Clack WSCl 1'' (USA)
Tank material		Composite material – inline PE with fiberglass outside coating
Filtration media		AquaMandix catalytic filtration media, quartz sand of various fractions
The amount of water for one regeneration	liters	~400
Minimum flow rate for rinsing	m³/h	3.0
	liters/min	50.0
Electricity consumption	W	10

Water filter operating restrictions:

Max. oxidized iron (Fe³⁺) content	1500 μg/l
Max. dissolved iron (Fe²⁺) content	300 μg/l
Max. oxidized manganese (Mn²⁺) content	100 μg/l
Max. hydrogen sulphide (H₂S) content	5 mg/l
pH for iron (Fe²⁺) removal	6.8-9.0
pH for manganese (Mn²⁺) removal	8.0-9.0
Organic, humus substances, ammonia, chlorine, hardness salts and other contaminants does not adversely affect the filter performance, but reduces the lifetime.
