Iron removal filter WATEX FA900x2

Manufacturer: WATEX
Product code: FA0900X2
Combination does not exist

WATEX FA900x2



WATER QUALITY PROBLEM

Iron and manganese often causes the main problem of the waterworks. When water gets in contacts with air, it changes the colour, turbidity increases and sediments appears. Water has a metallic taste. Water pipes are clogged and sanitation at the consumer becomes dirty. Suggested concentration of iron should be 0.1 mg/l and manganese 0.05mg/l.

SOLUTION

The best solution for this problem is oxidation and sand filtration. WATEX FA series filters are designed to purify water from turbidity, iron, manganese and odor for villages, cities and industrial enterprises. Mainly it is used for groundwater purification and for centralized water supply systems.

OPERATING PRINCIPLE

FA filter operating principle is based on aeration and filtration. When water is aerated, iron, manganese and mechanical impurities form sediments, which can be filtered. Suspended solids are filtered through filtration media, which has been poured in to filter. Filters depending on pollution levels and water consumption have to be rinsed regularly. Filters after rinsing are regenerated and can purify water. Equipment consists from  filter and compressor. The equipment is fully assembled in the factory and only has to be connected to water, sewage water system, electricity and it will be operational.

Show full description

Technical parameters of equipment

Unit

Model

FA  500x2

FA  600x2

FA  800x2

FA  900x2

FA  1000x2

Flow rate * Qnom

m3/h

3.6

4.7

7.3

10.5

14.3

Flow rate ** Qmax

m3/h

5.4

7.0

10.9

15.8

21.4

The amount of water for regeneration ***

m3

0.74

0.97

1.52

2.19

2.98

Minimum flow rate for rinsing

m3/h

5.6

7.3

11.4

16.4

22.3

Container size (diameter)

inches

21

24

30

36

40

m

0.53

0.61

0.76

0.91

1.02

Container volume

liters

316

415

640

850

1100

The amount of filtering material

liters

200

281

416

562

720

Dimensions













Length

m

1.36

1.56

1.96

2.16

2.36

Width

m

0.84

0.94

1.14

1.24

1.34

Connection. In/out/drain.



D40 / DN32

D50 / DN40

D63 / DN50

D63 / DN50

D75 / DN65

Height

m

2.40

Treatment possibility



Iron, manganese, turbidity, odor, color

Container material



FRP (fiberglass)

Filtering material



Aqua Mandix, quartz sand 0.7x1.2mm, 3x5 mm

Filter piping



PVC

Valve type and drive



Three-way ball valves BELIMO

Operating pressure

bar

2-6

Electric Connection



220V, 50Hz, 1 phase

Electricity consumption

W

3 W

* Filtration speed 8 m/h

** Filtration speed 12 m/h

*** Backwash 8 min



ASSEMBLY CONNECTIONS

 The system is equipped with two electric three way valves, which make the system simple and inexpensive in operation. Piping system is made from PVC pipes and fittings (Also available stainless steel assembly connections). Filters can be rinsed in automatic mode as well as manual mode.

PRESSURE TANK

Pressure filter tanks are made from fiberglass with inner PE coating that can hold pressure up to PN10.

FILTRATION MEDIA

For water purification filtration media Aqua Mandix and quartz sand with different grain size (0.4x0.8 mm, 0.7x1.25 mm,1x3 mm, 3x5 mm) is being used. Porous structure of Aqua Mandix provides a large active surface and provides efficient adsorption and accumulation of sediment. Aqua Mandix compared to other filtration materials is lightweight and consumes less rinse water.

CONTROL VALVE

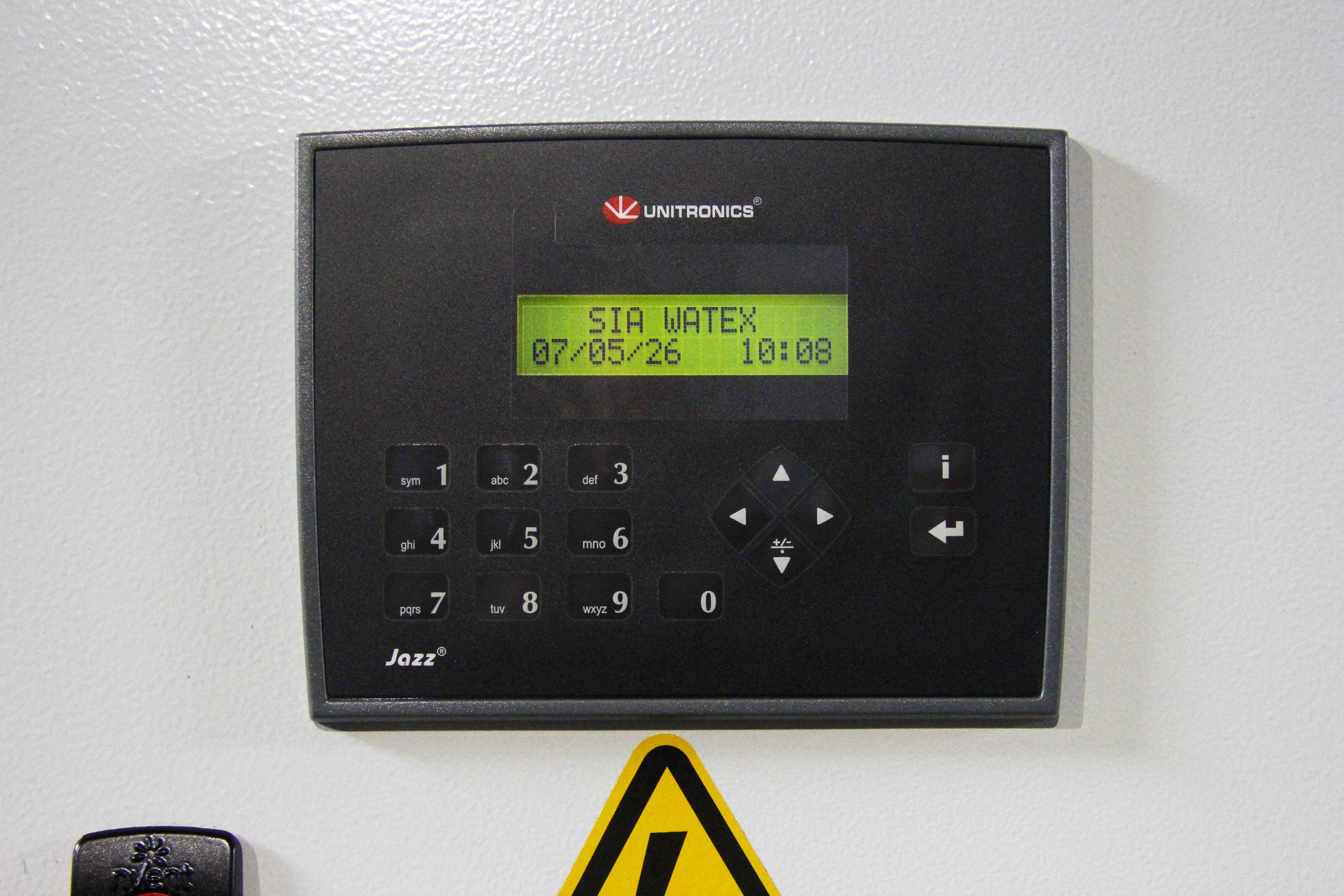

Filters are equipped with automatic control valve with LCD display, which can be used to change filter parameters like date, time, protection from access by unauthorized persons. The system is compatible with SCADA and GSM notification system, filter rinsing after volume of water consumed, the filtration media loosening blower or compressor can be added.

AIR SUPPLY

For water aeration oil-free air compressor has to be installed. The system can be equipped with any manufacturers of oil-free compressor. The system has built-in air control valve. Air control system has built-in flow switch, which gives a signal to electromagnetic valve to open when water is flowing. Air is injected to water before the filters.

SYSTEM MAINTENANCE

Filters will provide with good quality water if operating personnel will ensure proper air supply, and unnecessary air removal and regular rinsing processes. Water purification system does not require specific chemical admixtures that have to be refilled.
