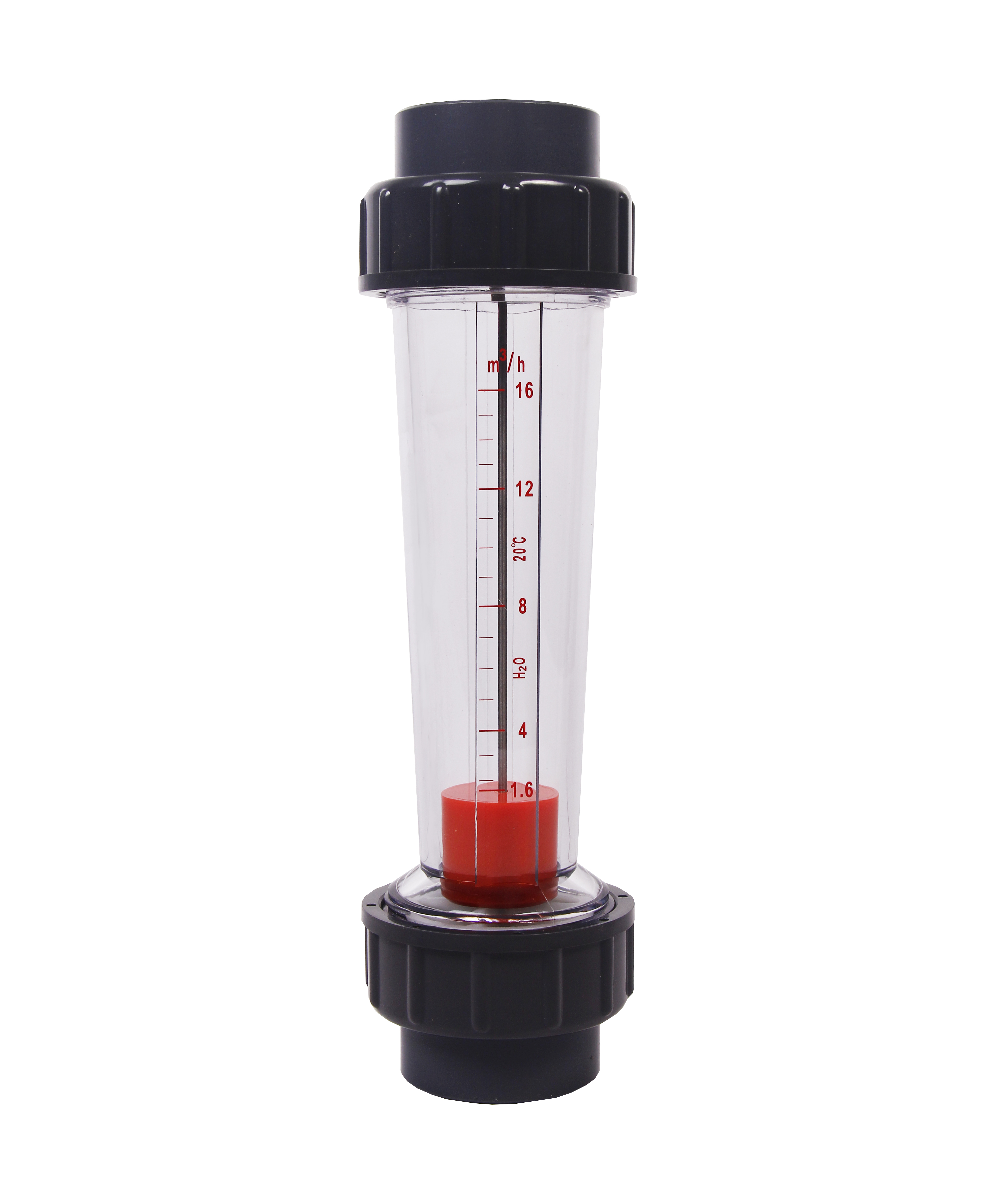

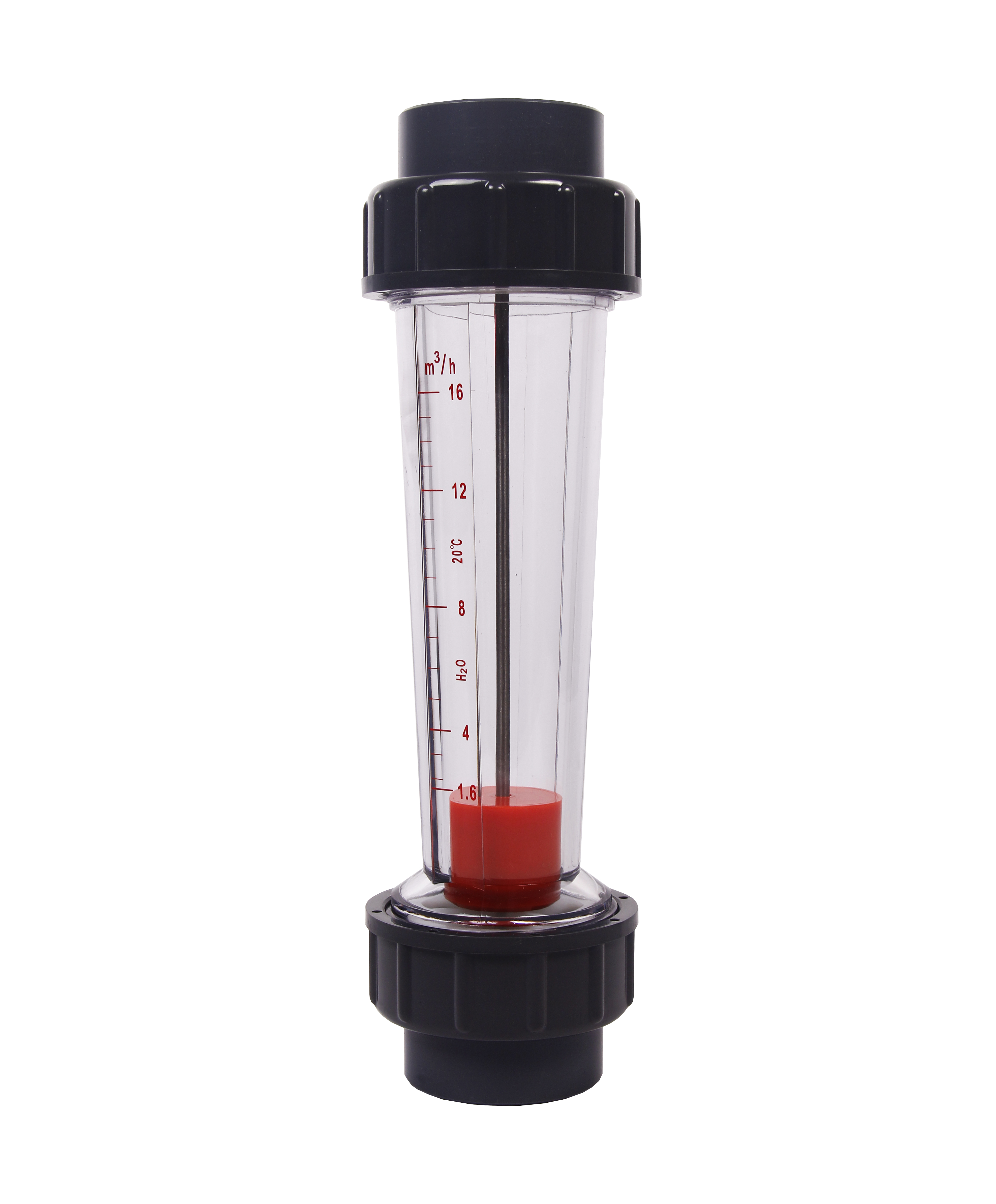

Water flow meter 160-1600 l/h

Manufacturer:
Product code: 621
Combination does not exist

A water flow meter is used to determine the precise instantaneous liquid flow rate.
The meter's float is made of special plastic, ensuring resistance to acid and alkali interactions.

Capacity: 160-1600 l/h

Show full description

Technical parameters of equipment

Unit

Model

LZS-25

Connection (DN)

mm

25

Measure range

l/h

160-1600

Accuracy

%

4

Working temperature

°С

0-60

Operating pressure

MPa

≤ 0.6

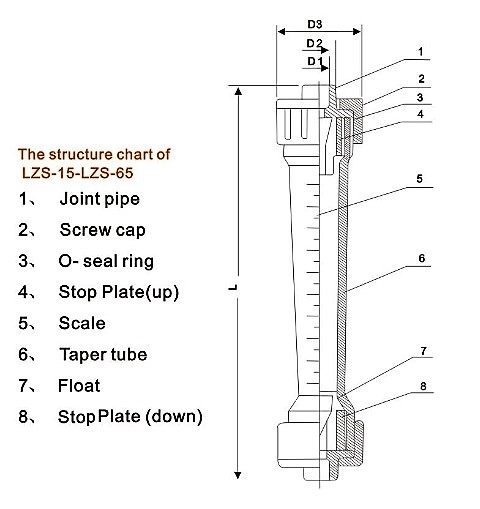

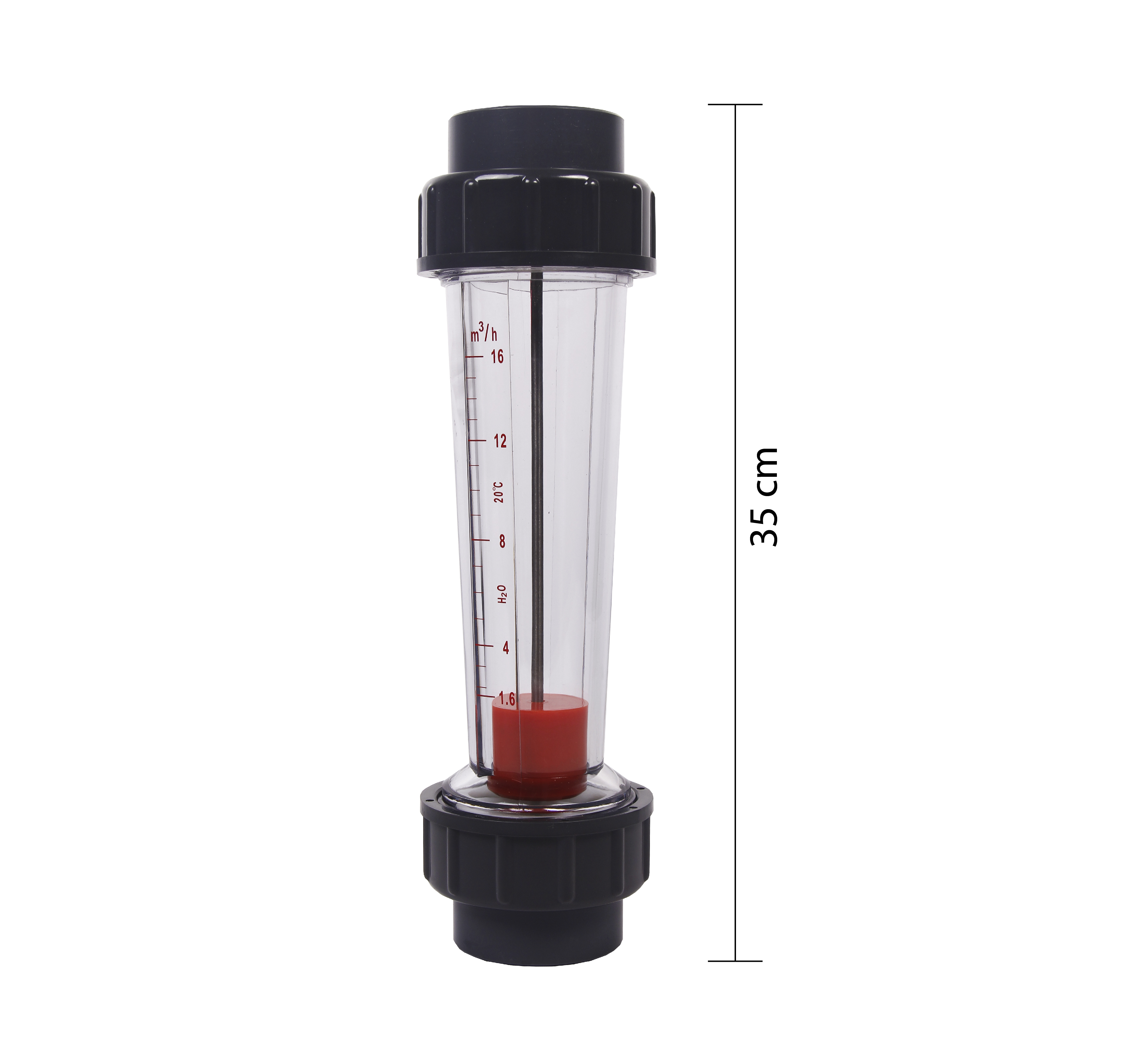

Dimensions:





L (Short Tube Type)

mm

226

L (Long Tube Type)

mm

380

D1

mm

32

D2

mm

39

D3

mm

68





Width cm

Height cm

Length cm

Weight kg

6.50

6.50

24.00

0.25
