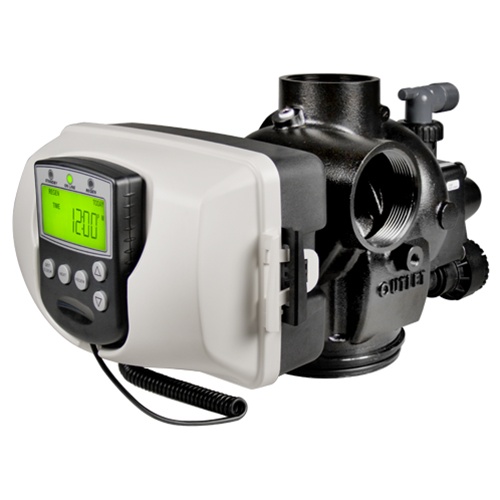

CLACK WS3 DOWNFLOW REGENERATION CONTROL VALVE WITH METER

• 3” top mount or side mount control valve suited for commercial and industrial applications
• Epoxy coated lead free brass valve body
• Service flow rate 250 gpm (946 lpm) (56.8 m3/h), Backwash flow rate 220 gpm (833 lpm) (50.0 m3/h)
• Front panel display for Time of Day, Current Flow Rate, Totalizer and Volume/Days until Regeneration
• Four methods to initiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, aor pressure differential
• Fully programmable regeneration cycle sequences (maximum 9)
• Fully programmable regeneration cycle times
• Pre or Post treated water regenerant refill
• 20-volt output AC adapter provides safe and easy installation
• Inlet/Outlet (1): 3” Female NPT or BSPT
• Number of cycles:  up to 9
• Valve Material: lead free brass
• Regeneration: downflow
• Operating pressure (min/max): 20 - 125 psi (1.4 - 8.6 bar)
• Operating temperature (min/max): 40º - 110º F (4C - 43C)

Electrical specification:

• Supply Voltage: 230V AC
• Supply Frequency: 50Hz
• Output Voltage: 20V AC
• Output Current: 750mA

Tank application:

• Water Softener: 18’’-63’’ diameter with standard injectors, to 96" with Brine Pump
• Water Filter (2): 18’’-63’’ diameter
