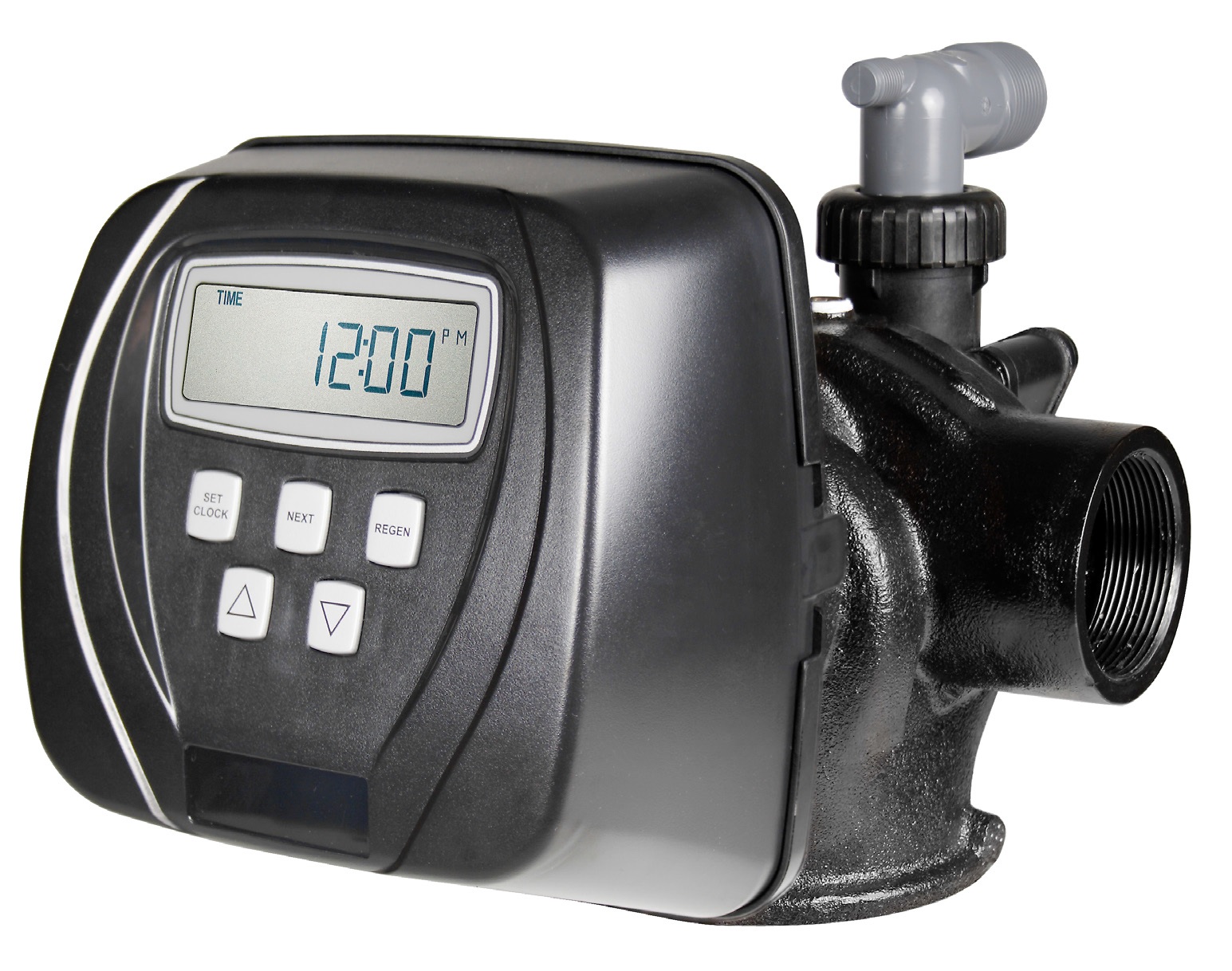

CLACK WS2CI DOWNFLOW REGENERATION CONTROL VALVES (LESS METER)

Manufacturer: CLACK
Product code: V2CIDTA-XX
Combination does not exist
Do you have any questions?
Manufacturer: CLACK
Product code: V2CIDTA-XX
Combination does not exist
  • Service flow rate of 435 lpm (26.1 m3/h) (115 gpm), backwash 303 lpm (18.2 m3/h) (80 gpm)
  • Front panel display for time of day, days until next regeneration
  • Double backwash feature offers optimum regeneration, cleaning ability and efficiency
  • Coin Cell Lithium battery back-up with a 8 hour carry over
  • Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats
  • 12-volt output AC Adapter provides safe and easy installation
  • Inlet/Outlet connections: 2” Female BSPT
  • Number of cycles: up to 9
  • Valve Material: Lead free brass
  • Regeneration: downflow
  • Operating pressure (min/max): 1,4 bar- 8,6 bar
  • Operating temperature (min/max): 4C - 43C

Electrical Specifications (AC Adapter)

  • Supply Voltage: 230V AC
  • Supply Frequency: 50 Hz
  • Output Voltage: 12V AC
  • Output Current: 500 mA



Show full description

Width cm

Height cm

Length cm

Weight kg

42.00

33.00

38.00

12.00
Show full description
