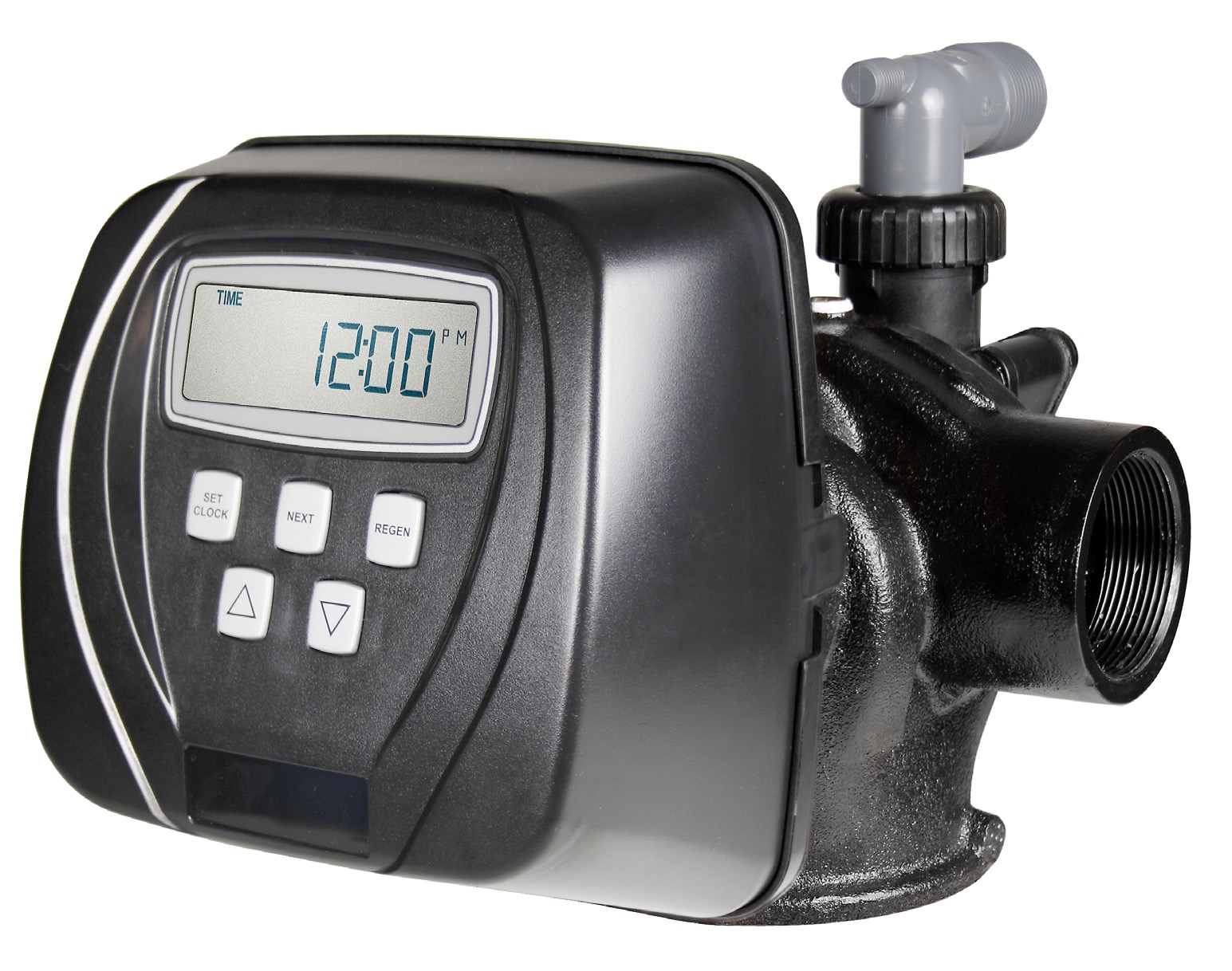

CLACK WS2CI FILTER control valve

Service flow rate of 435 lpm (26.1 m3/h) (115 gpm), backwash 303 lpm (18.2 m3/h) (80 gpm)

Front panel display for time of day, days until next regeneration

Double backwash feature offers optimum regeneration, cleaning ability and efficiency

Coin Cell Lithium battery back-up with a 8 hour carry over

Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats

12-volt output AC Adapter provides safe and easy installation

Inlet/Outlet connections: 2” Female BSPT

Number of cycles: up to 9

Valve Material: Lead free brass

Regeneration: downflow

Operating pressure (min/max): 1,4 bar- 8,6 bar

Operating temperature (min/max): 4C - 43C

Electrical Specifications (AC Adapter)

Supply Voltage: 230V AC

Supply Frequency: 50 Hz

Output Voltage: 12V AC

Output Current: 500 mA
