CLACK WS1.5CI DOWNFLOW REGENERATION METERED CONTROL VALVES

Manufacturer: CLACK

Product code: V15CIDMB-XX

Do you have any questions?

Manufacturer: CLACK

Product code: V15CIDMB-XX

Availability:

In stock

Delivery time: 2-5 working days

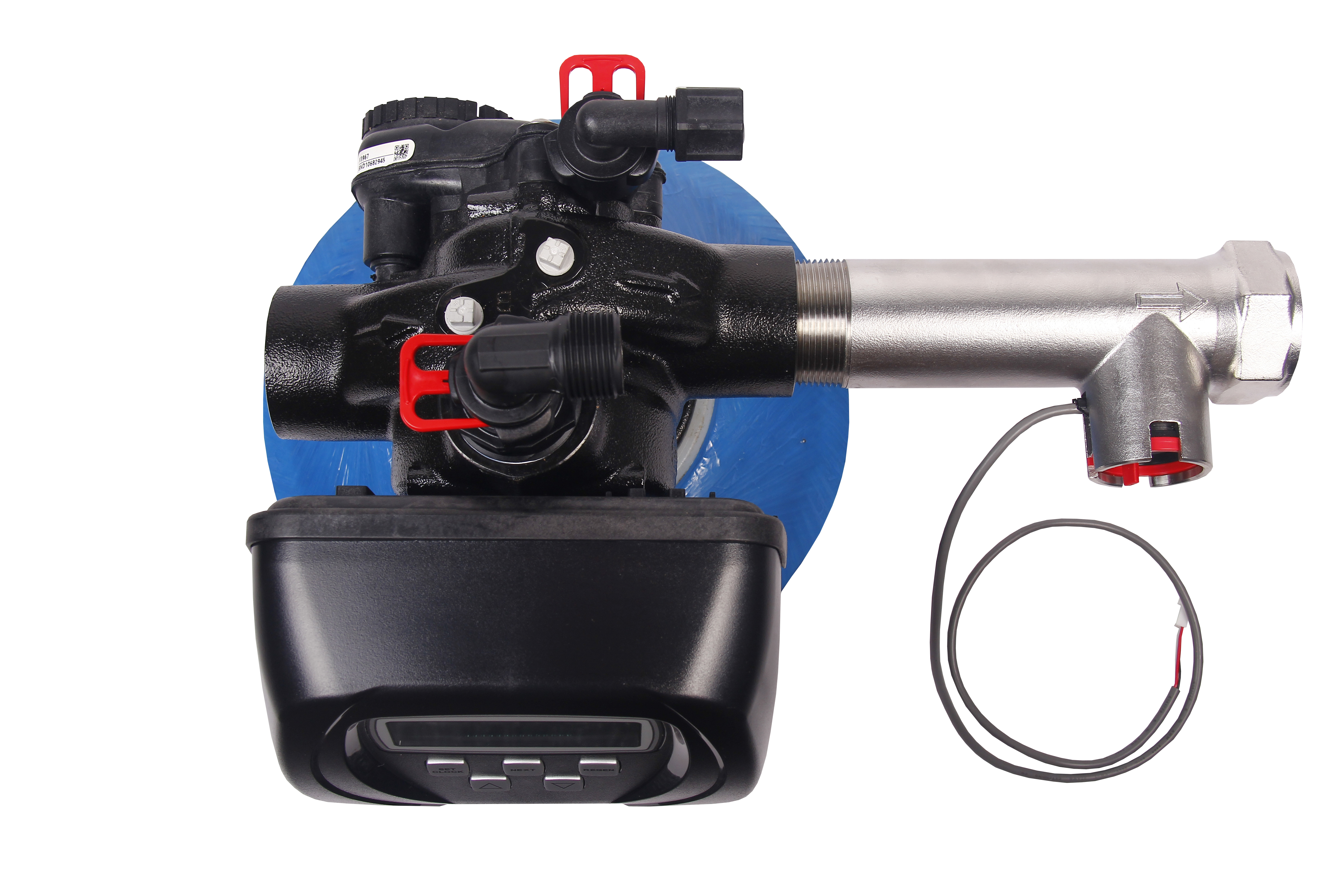

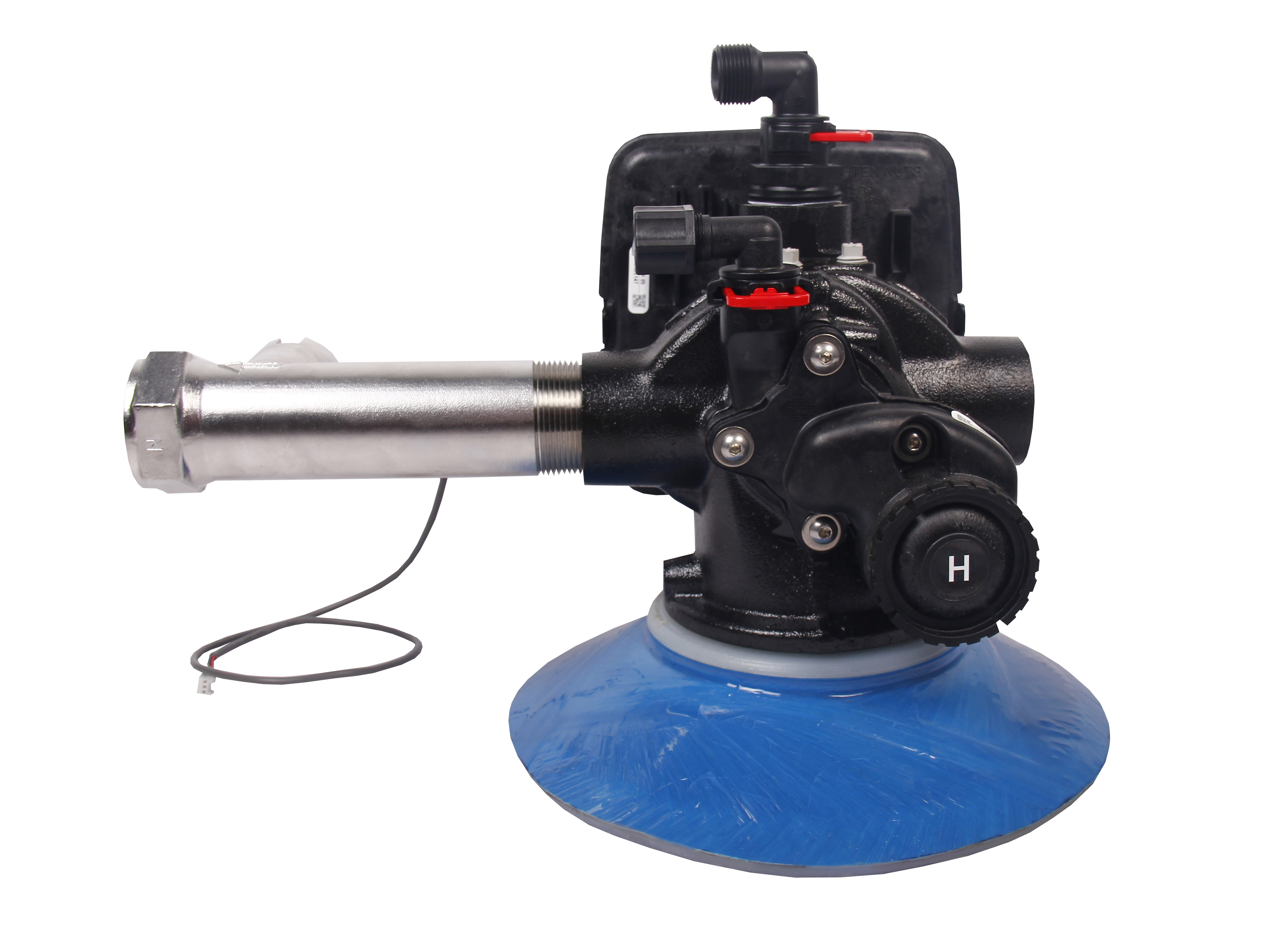

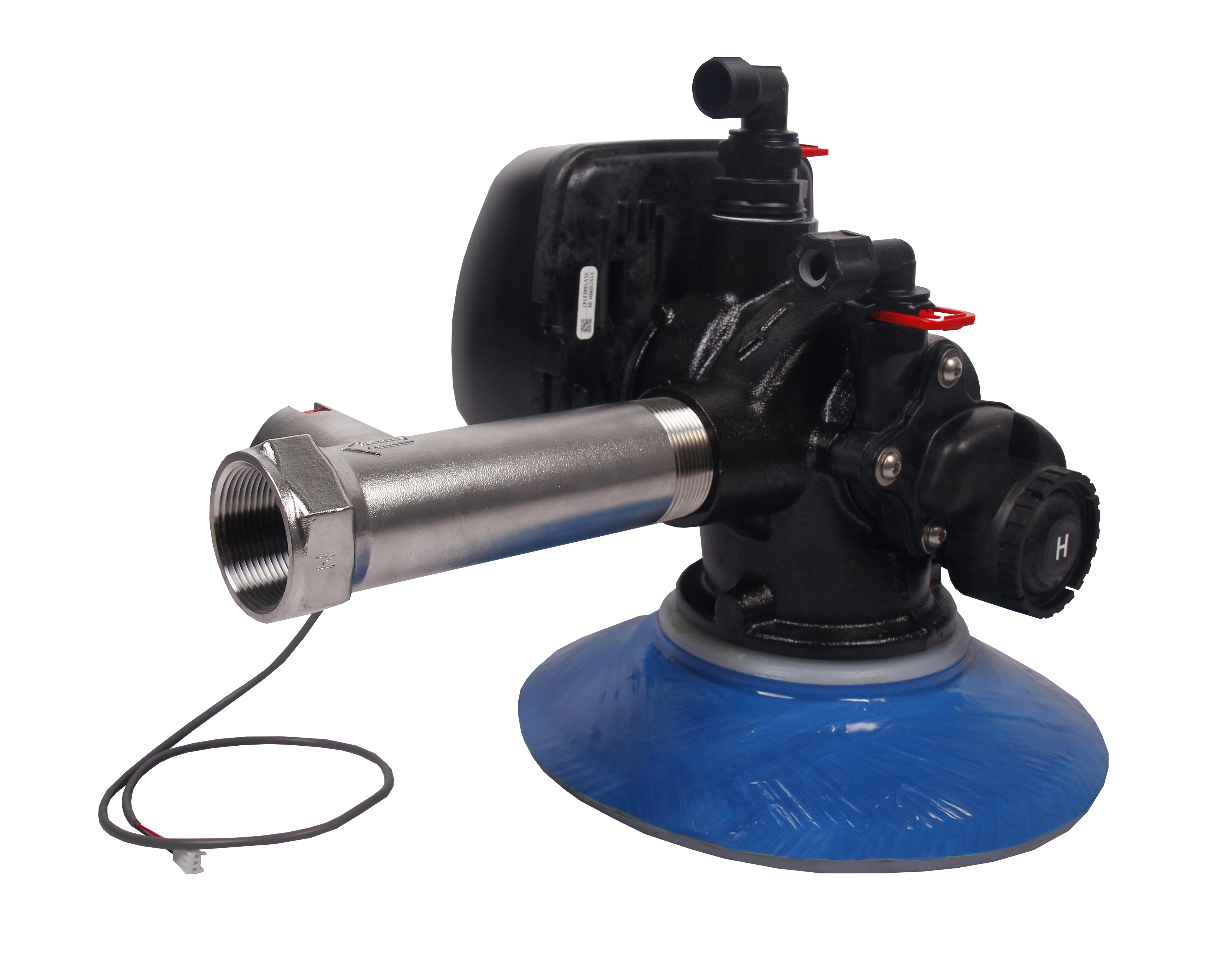

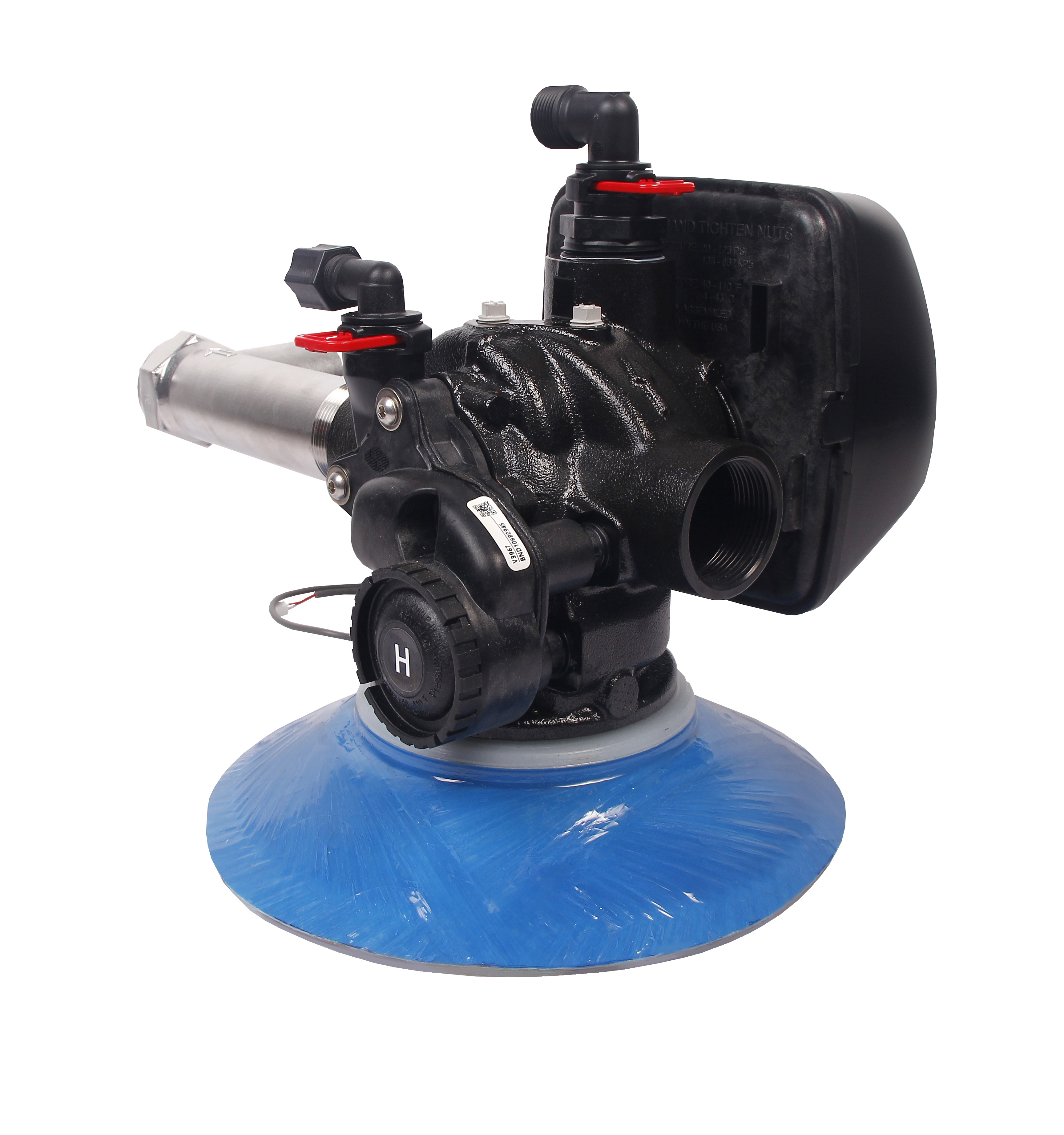

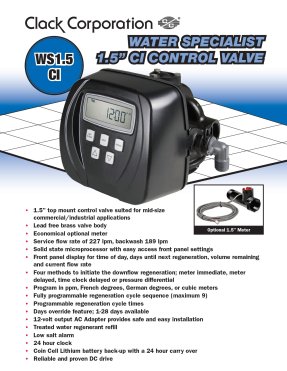

1.5" top mount control valve suited for mid-size commercial/industrial applications
Glass filled composite
Economical plastic optional meter assembly
Service flow rate of 227 lpm (13.6 m3/h) (60 gpm), backwash 163 lpm (9.8 m3/h) (43 gpm)
Upflow/downflow brining field convertible
Solid state microprocessor with easy access front panel settings

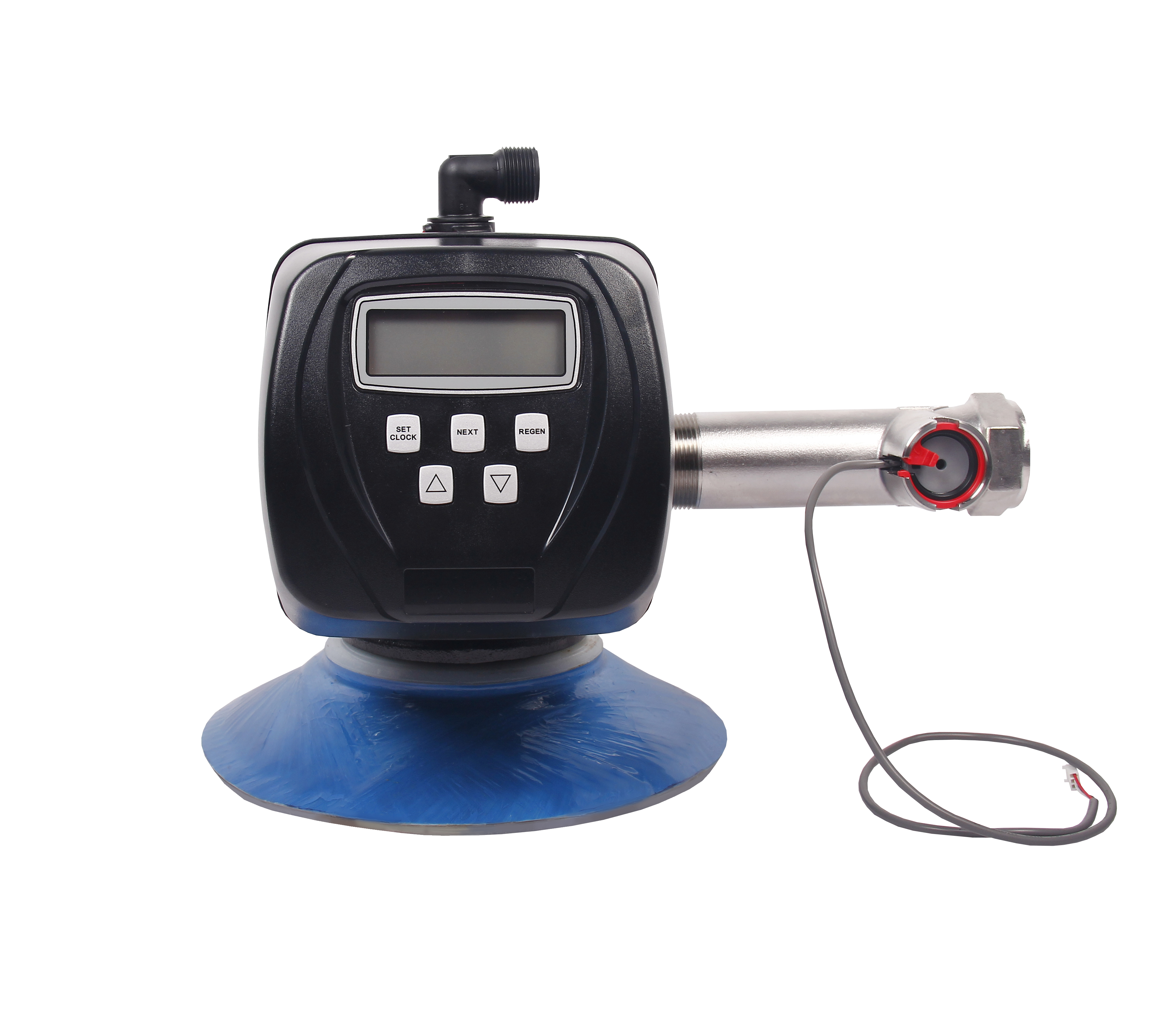

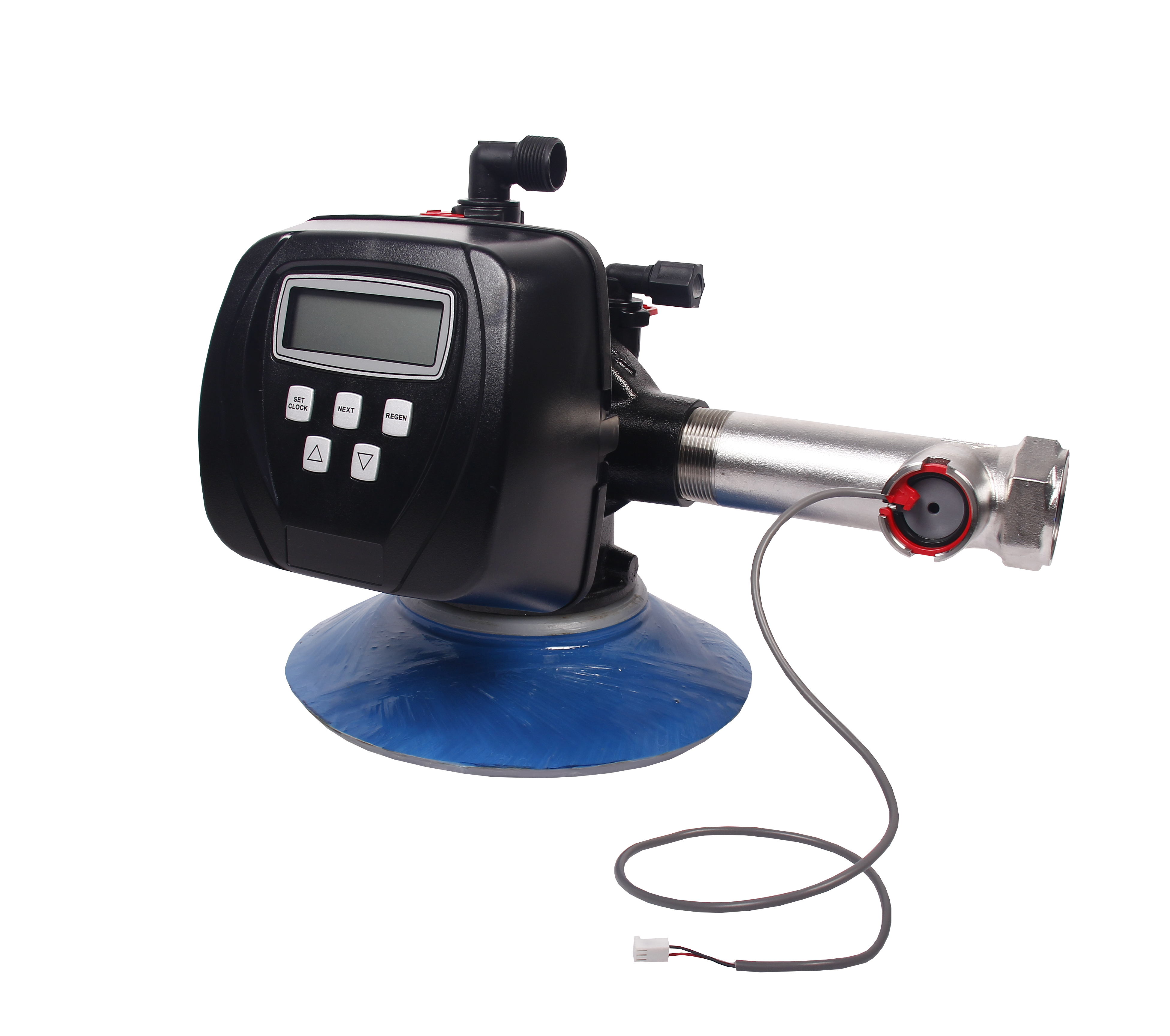

Front panel display for time of day, days until next regeneration, volume remaining and current flow rate
Four methods to initiate a regeneration; meter immediate, meter delayed, time clock delayed or pressure differential
Program in ppm, French degrees, German degrees, or cubic meters
Fully programmable regeneration cycle sequence (maximum 9)
Programmable regeneration cycle times
Days override feature; 1-28 days available
Level VI 15-volt output DC power supply provides safe and easy installation
Pre or Post treated water regenerant refill
Low salt alarm
Coin cell lithium battery backup for time of day up to 24 hours
One piece expanding seal spacer stack assembly
Linearly reciprocating piston operation
Reliable and proven DC drive

Show full description

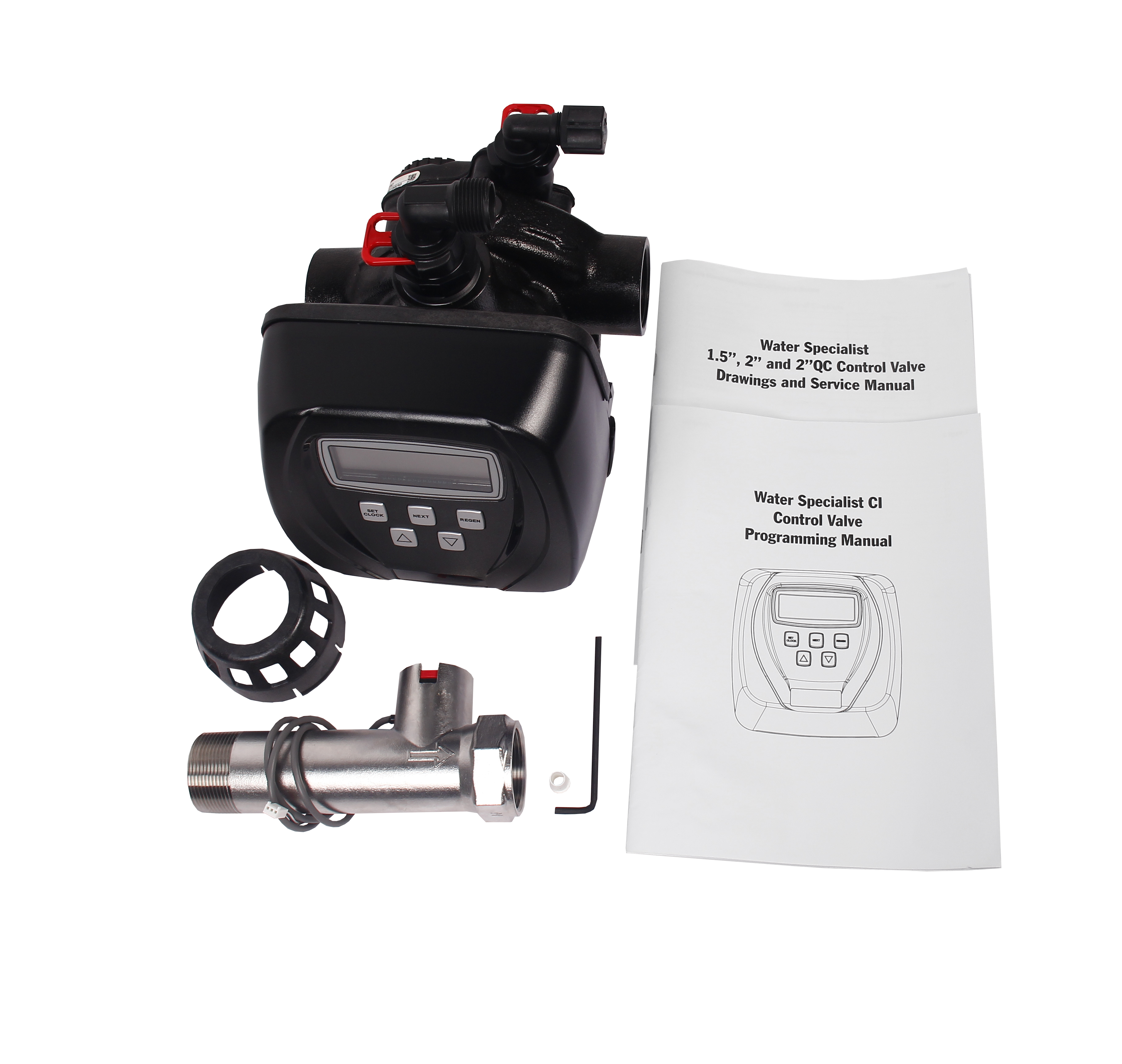

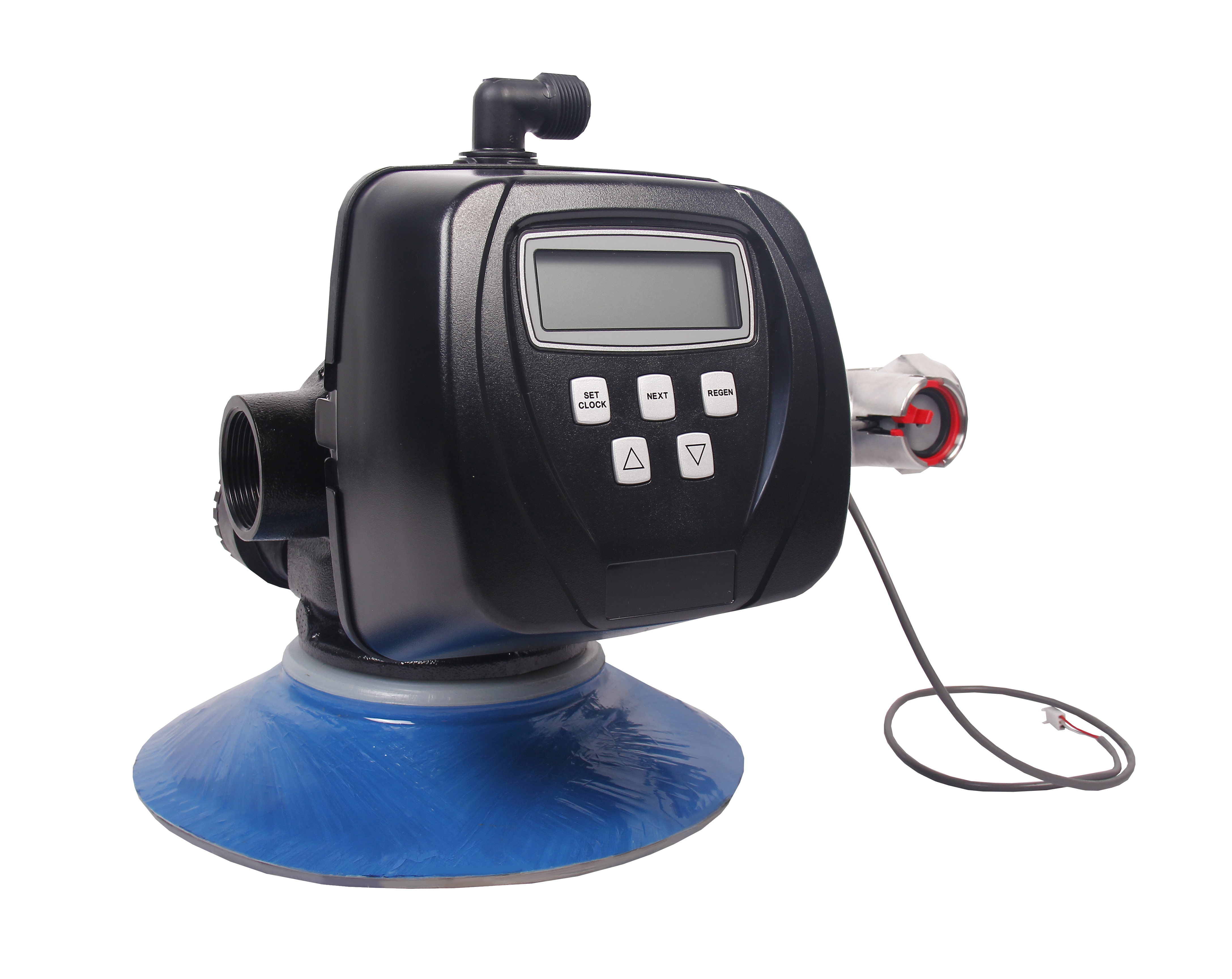

Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.

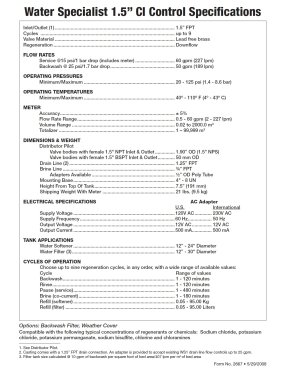

GENERAL

Parameter	Specification
Inlet / Outlet	1.5" Male BSPT or NPT
Cycles	Up to 9
Valve Material	Glass filled composite
Regeneration	Downflow / Upflow

CONTROL VALVE FLOW RATES

Parameter	Specification
Service @ 1 bar / 15 psi drop (includes meter)	227 lpm (13.6 m³/h) (60 gpm)
Backwash @ 1.7 bar / 25 psi drop	163 lpm (9.8 m³/h) (43 gpm)

OPERATING PRESSURES

Parameter	Specification
Minimum / Maximum	1.4 – 8.6 bar (20 – 125 psi)

OPERATING TEMPERATURES

Parameter	Specification
Minimum / Maximum	4 – 43 °C (40 – 110 °F)

DIMENSIONS & WEIGHT

Parameter	Specification
Distributor Pilot – 1.5" Female BSPT inlet & outlet	50 mm OD
Distributor Pilot – 1.5" Female NPT inlet & outlet	1.90" OD (1.5" NPS)
Drain Line Connection	1" Male Elbow BSPT or NPT
Brine Line Connection	½" OD Poly Tube Compression
Mounting Base	4" – 8 UN
Height from Top of Tank	274 mm (10.75")
Shipping Weight	4.1 kg (9 lb)

ELECTRICAL SPECIFICATIONS

Parameter	Specification
Supply Voltage – U.S.	100–120 VAC
Supply Voltage – International	200–240 VAC
Supply Frequency	50/60 Hz
Output Voltage	15 VDC
Output Current	500 mA

TANK APPLICATIONS

Parameter	Specification
Water Softener	12" – 24" Diameter
Water Filter	12" – 24" Diameter

CYCLES OF OPERATION

Parameter	Specification
Backwash	1 – 120 minutes
Rinse	1 – 120 minutes
Pause (service)	1 – 480 minutes
Brine (co-current)	1 – 180 minutes
Refill (softener)	0.05 – 90.00 kg / 1 – 99 minutes
Refill (filter)	0.2 – 76.00 liters
