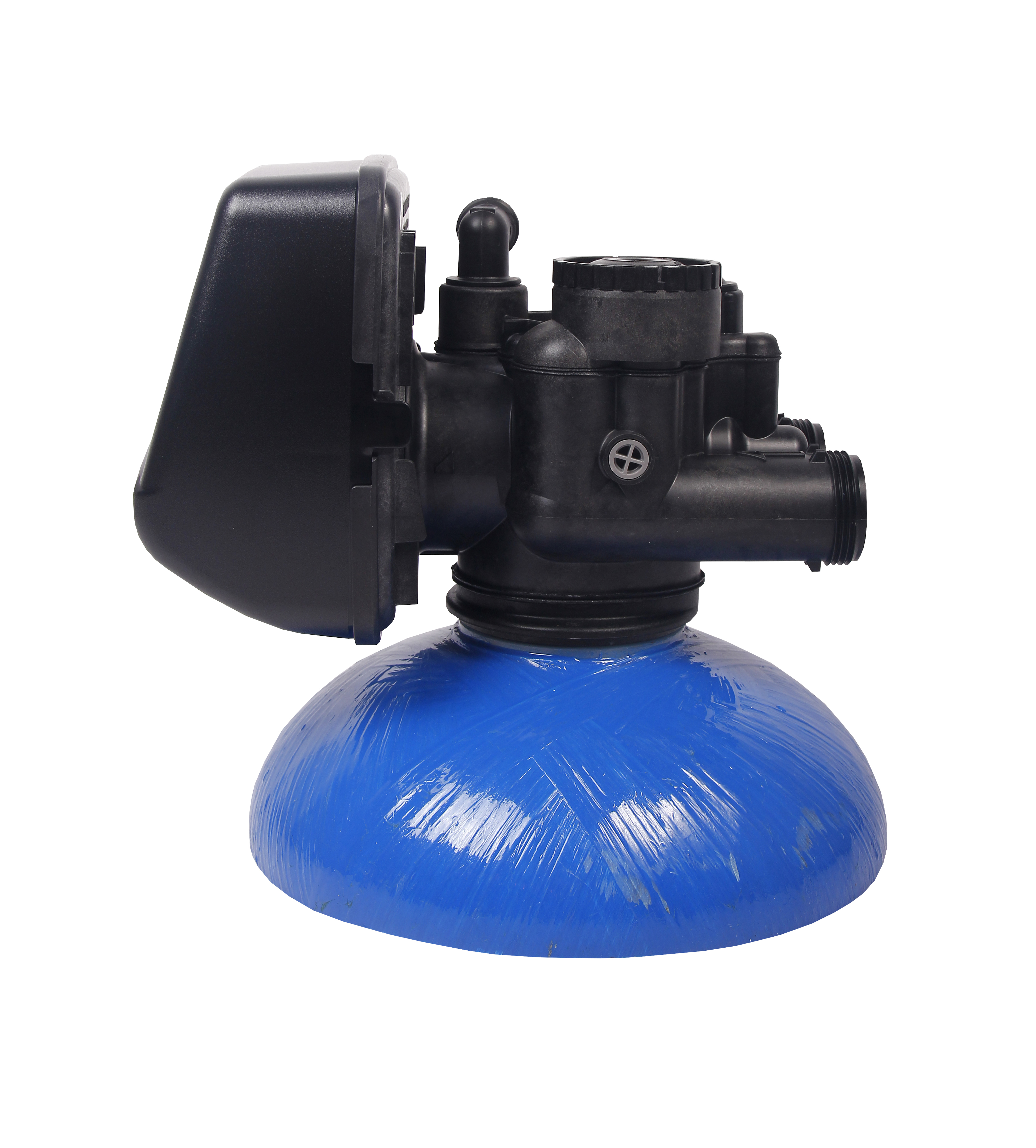

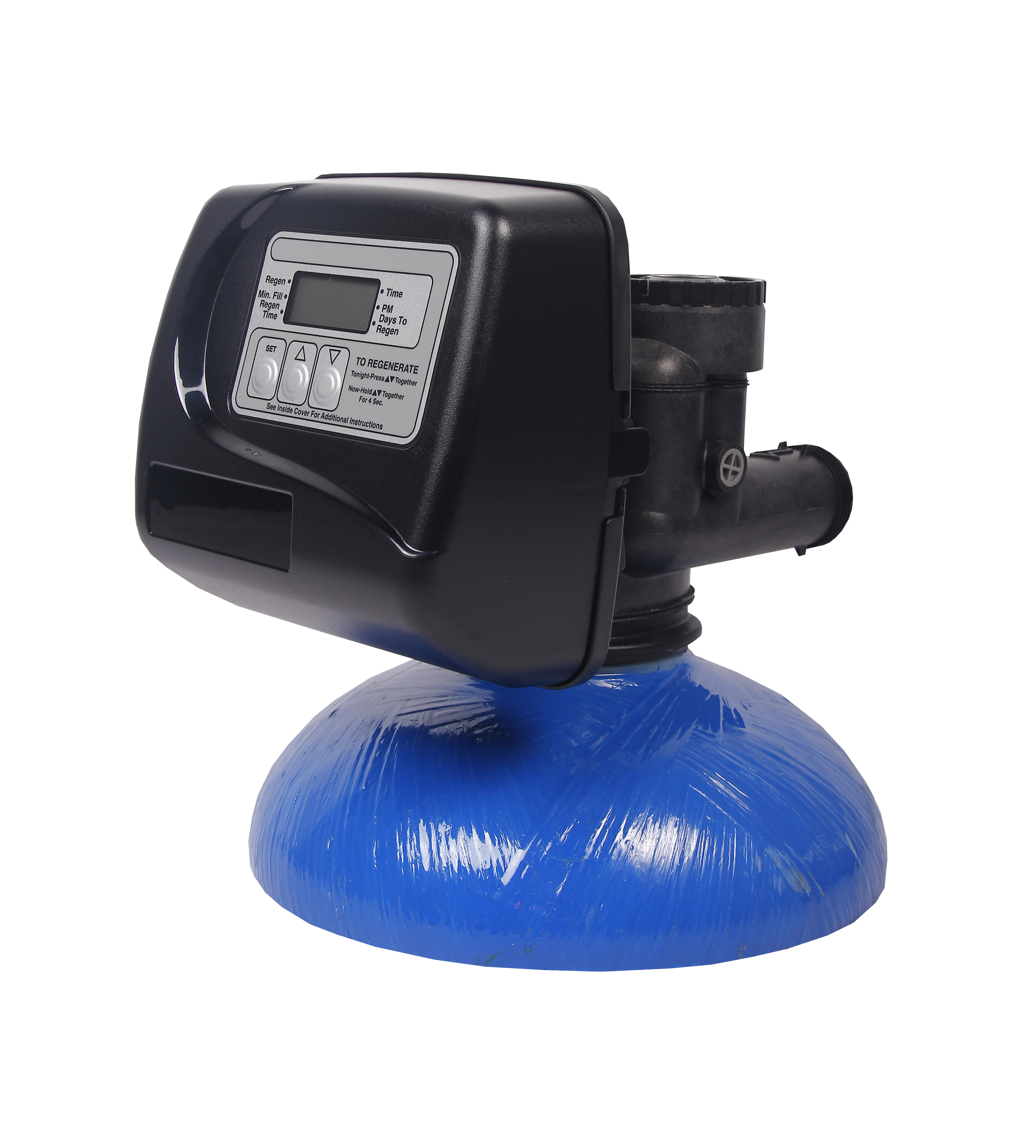

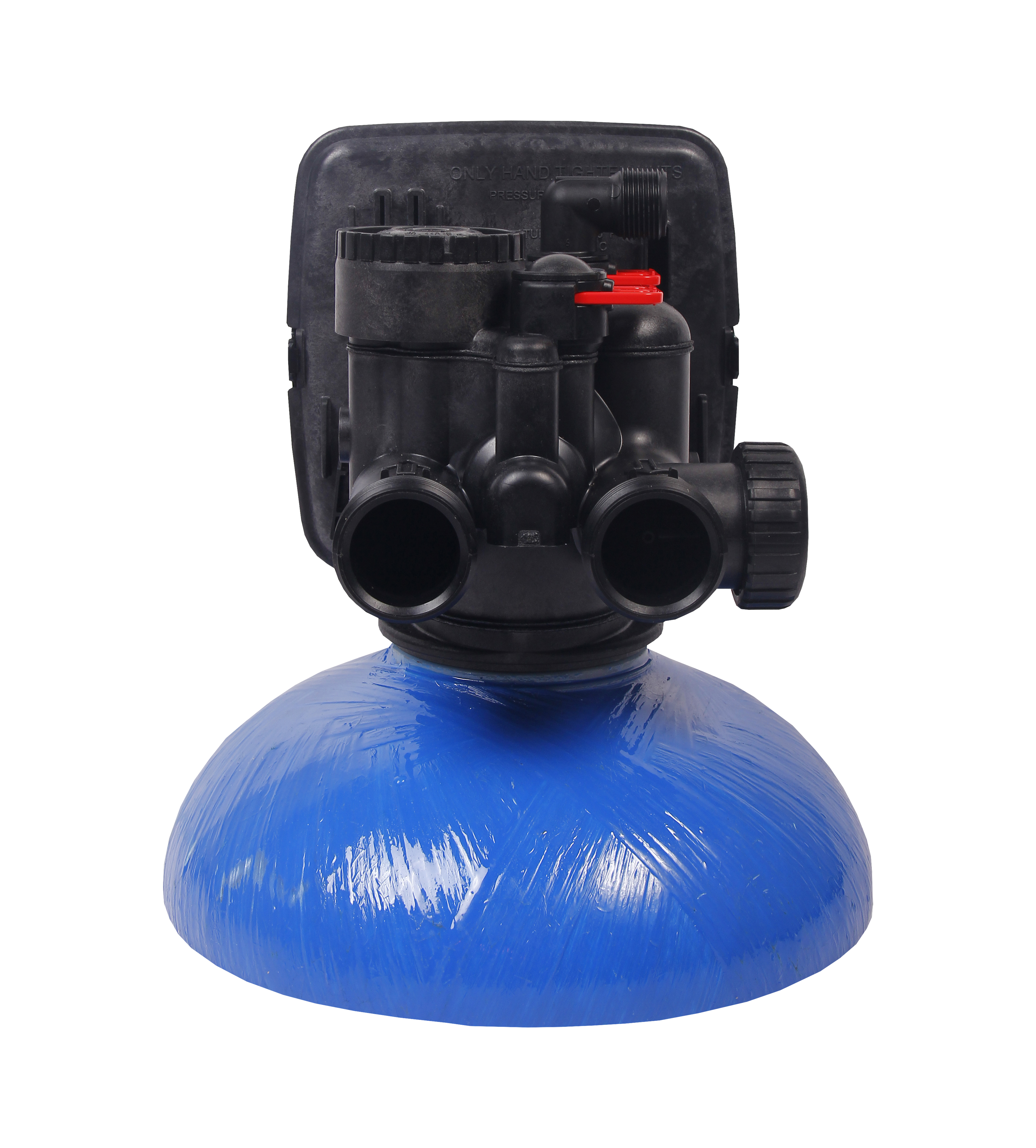

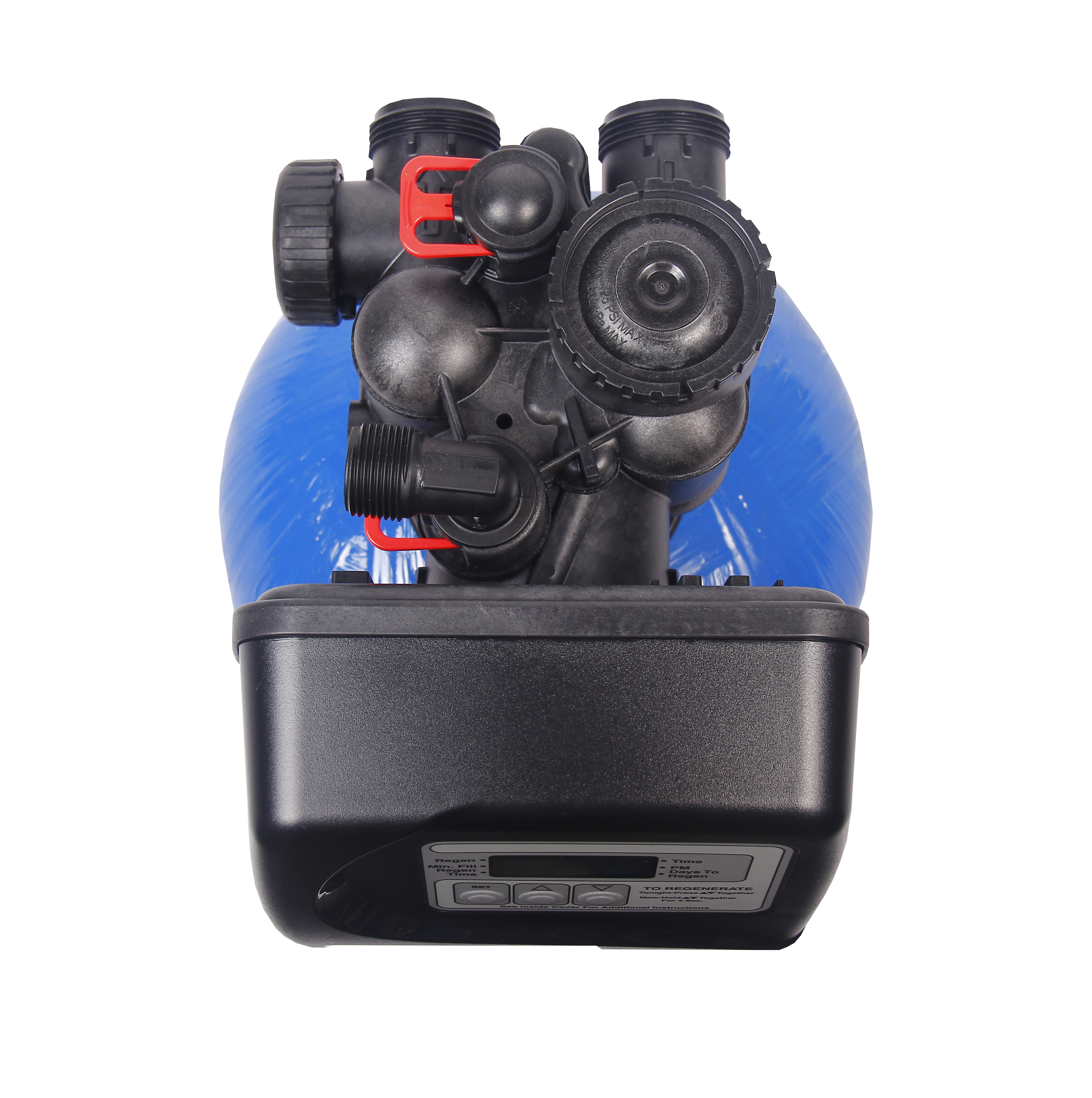

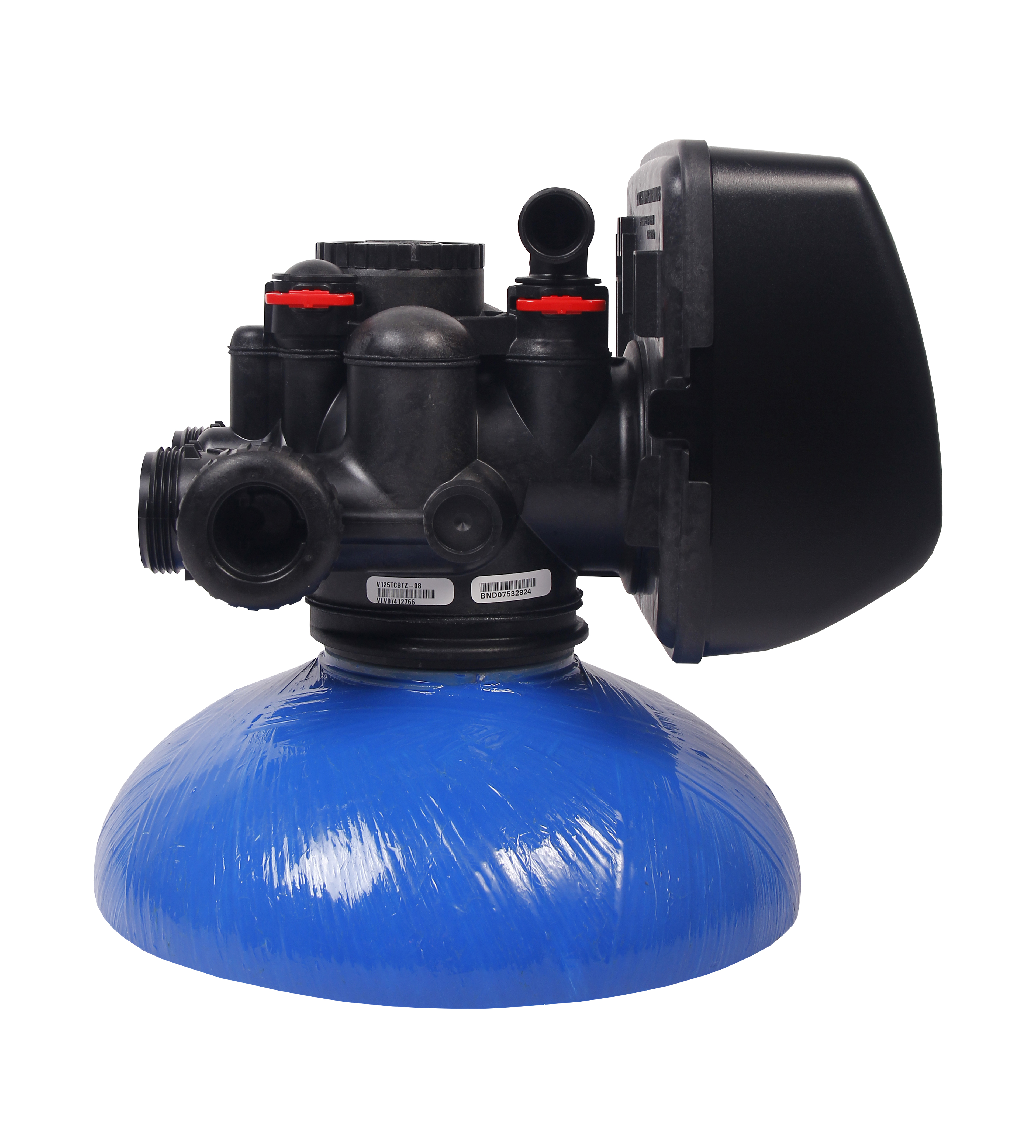

CLACK WS1.25TC BACKWASH ONLY FILTER (TIME CLOCK CONTROL VALVE ONLY)

Manufacturer: CLACK

Product code: V125TCBTZ-XX

Do you have any questions?

Manufacturer: CLACK

Product code: V125TCBTZ-XX

Availability:

In stock

Delivery time: 2-5 working days

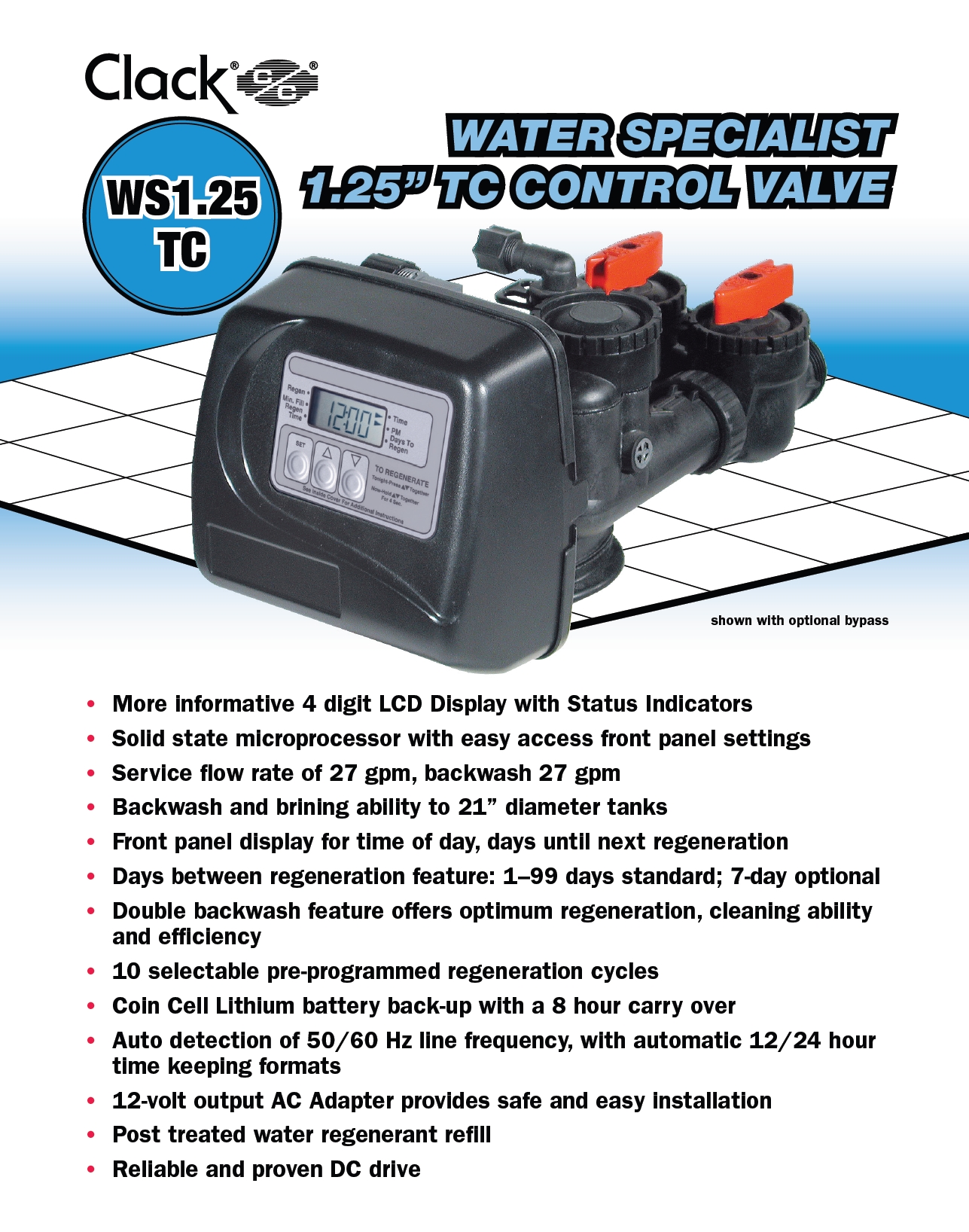

Solid state microprocessor with easy access front panel settings
Three modes of operation: meter immediate, meter delayed, or time clock delayed
Double backwash feature offers optimum regeneration, cleaning ability, and efficiency
Capable of 36 pre-programmed regeneration cycles based on control valve setting
Days override feature: 1 – 28 days available
Backwash and brining ability to 21” diameter tanks
Downflow regeneration
Stores system configuration and operation data in nonvolatile memory
Coin Cell Lithium battery back-up with an 8-hour carryover
Level VI 15-volt output DC power supply provides safe and easy installation
Patented one-piece expanding seal spacer stack assembly
Patented linearly reciprocating piston operation
Control valve design provides optimum service and backwash rates
Pre or post-treated water regenerant refill
Reliable and proven DC drive

Show full description

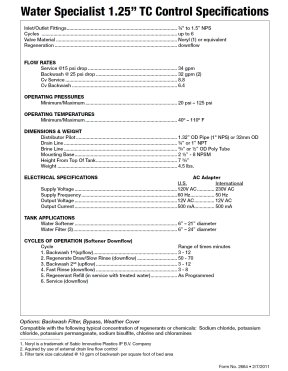

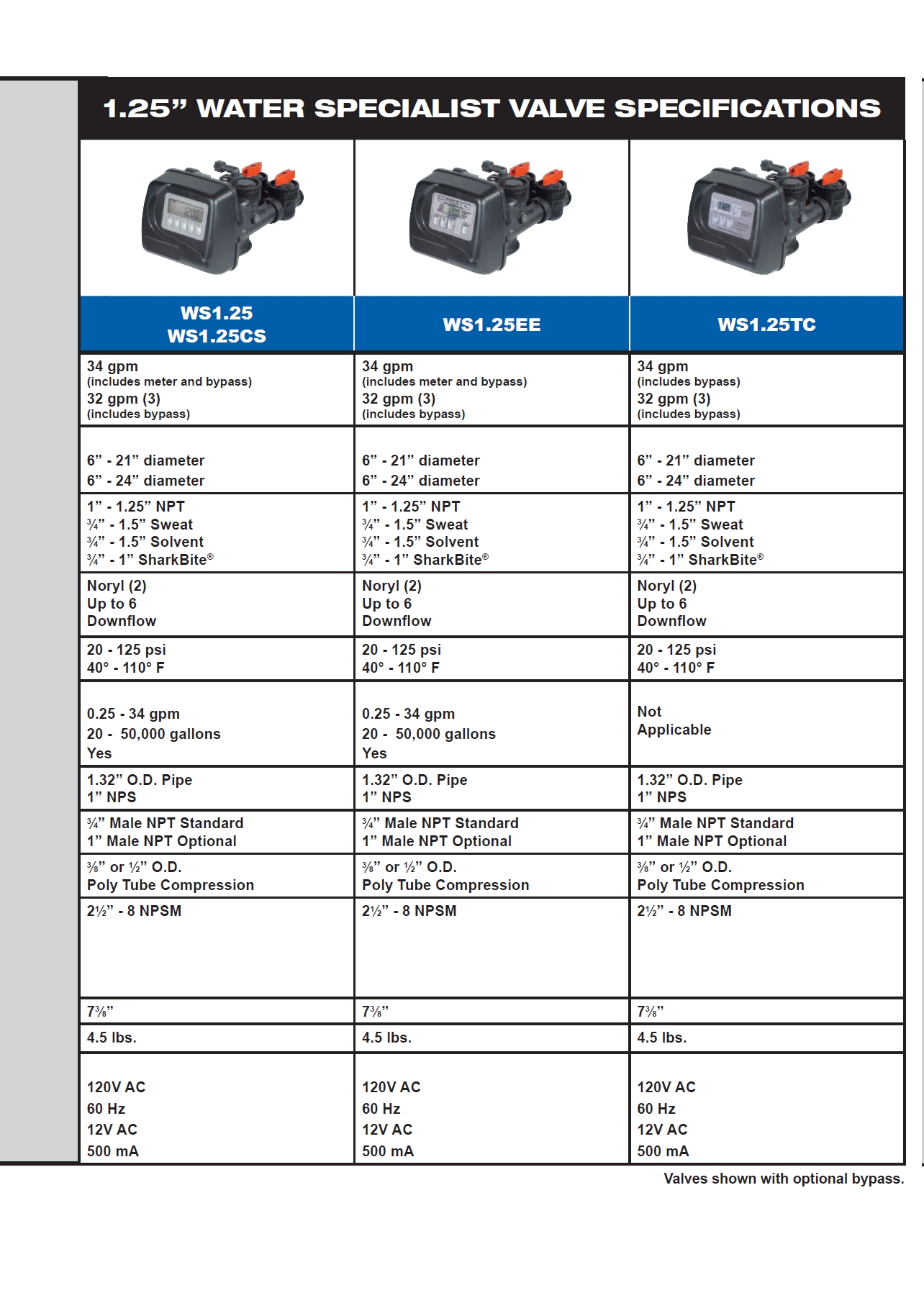

Parameter	Specification
Model	CLACK WS1.25TC Backwash Only Filter (Time Clock Control Valve)
Service flow rate	27 gpm
Backwash flow rate	27 gpm

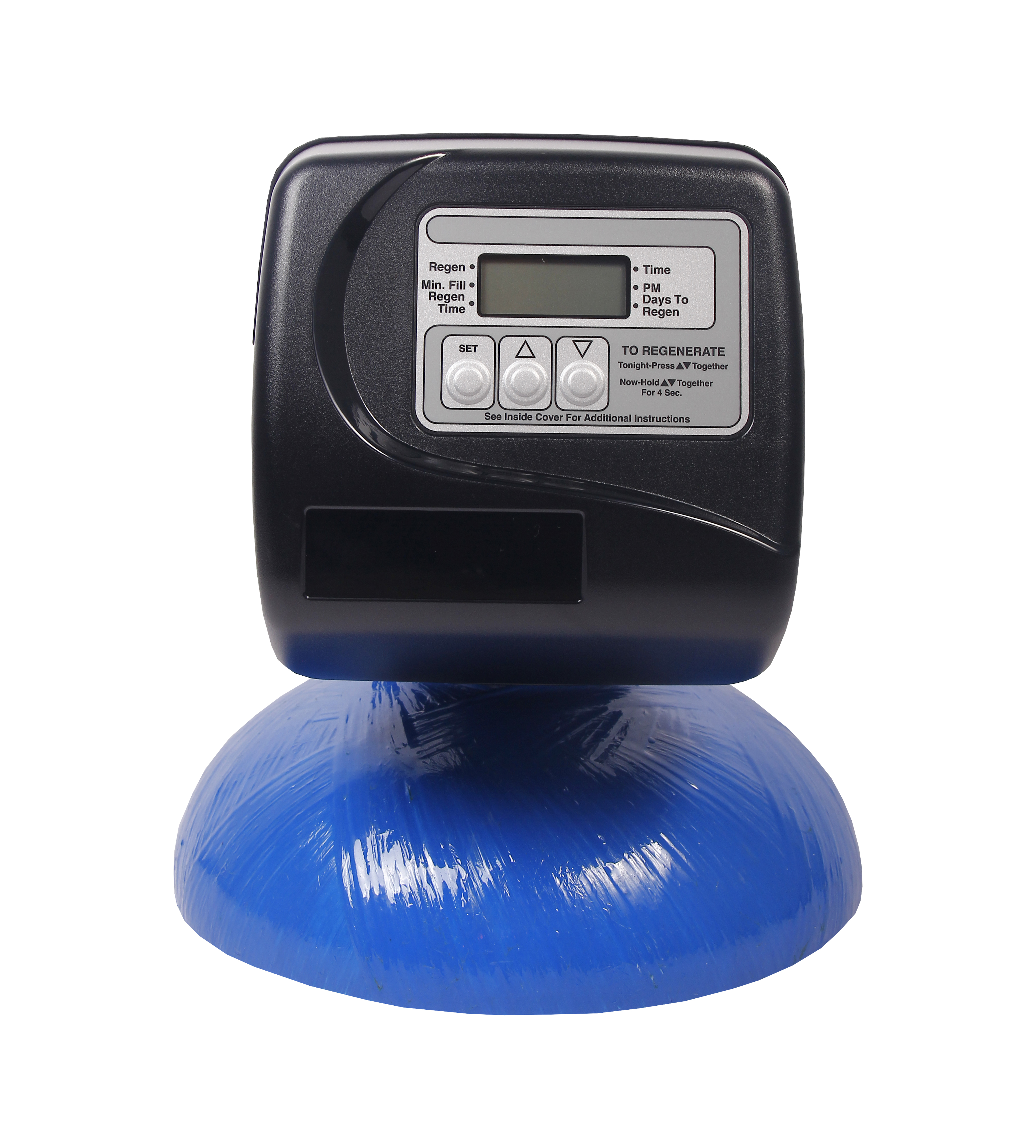

Display	Front panel display showing time of day and days until next regeneration
Backwash feature	Double backwash for optimal regeneration and cleaning efficiency
Battery backup	Lithium coin cell battery with 8-hour carryover
Frequency detection	Automatic 50/60 Hz detection with 12/24 hour time format
Power adapter	12 V AC adapter
Inlet / Outlet connections	¾" to 1.5" NPS
Number of cycles	Up to 6
Valve material	Noryl (or equivalent)
Regeneration type	Downflow
Operating pressure	1.4 – 8.6 bar
Operating temperature	4 °C – 43 °C
Supply voltage	230 V AC
Supply frequency	50 Hz
Output voltage	12 V AC
Output current	500 mA
