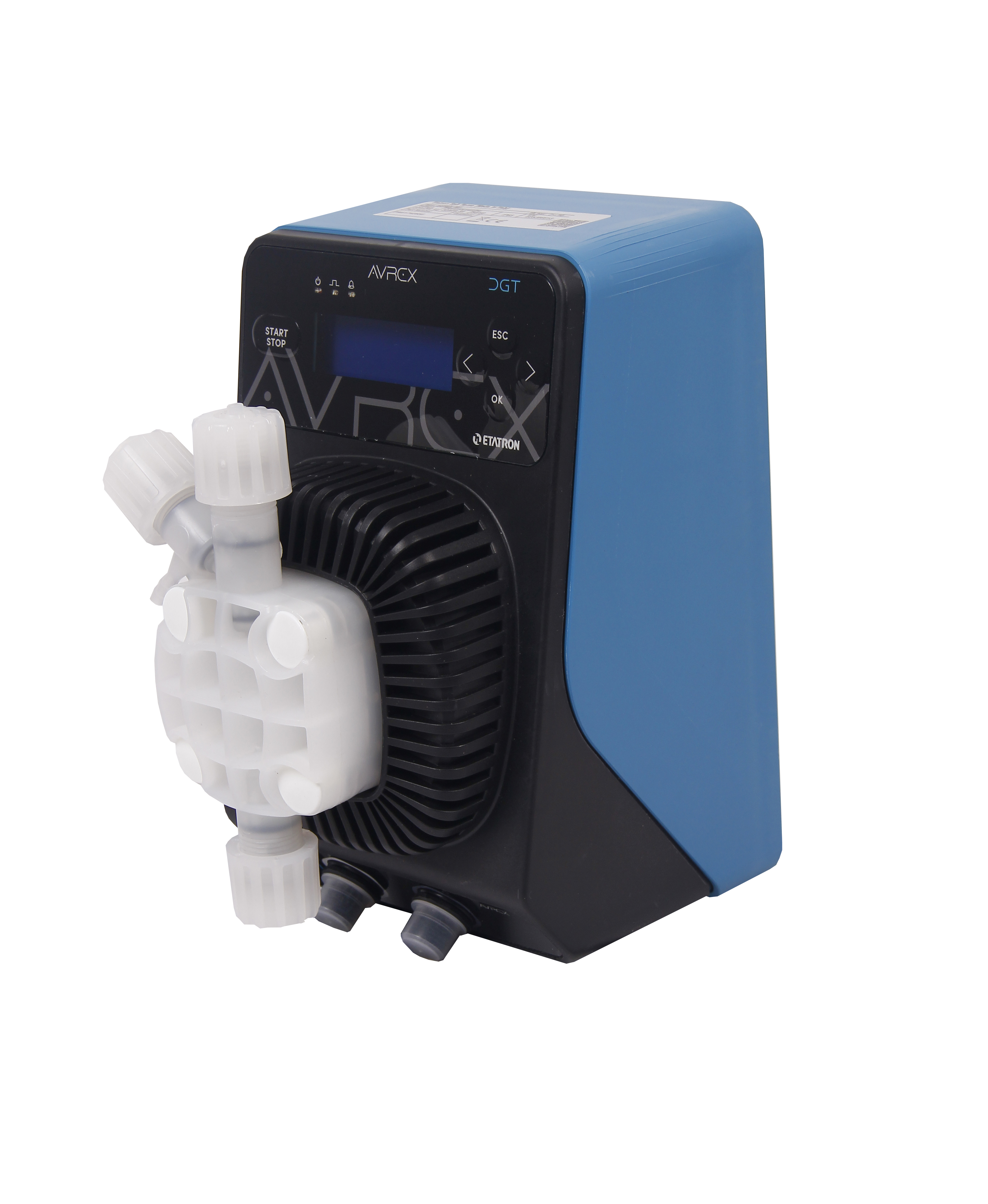

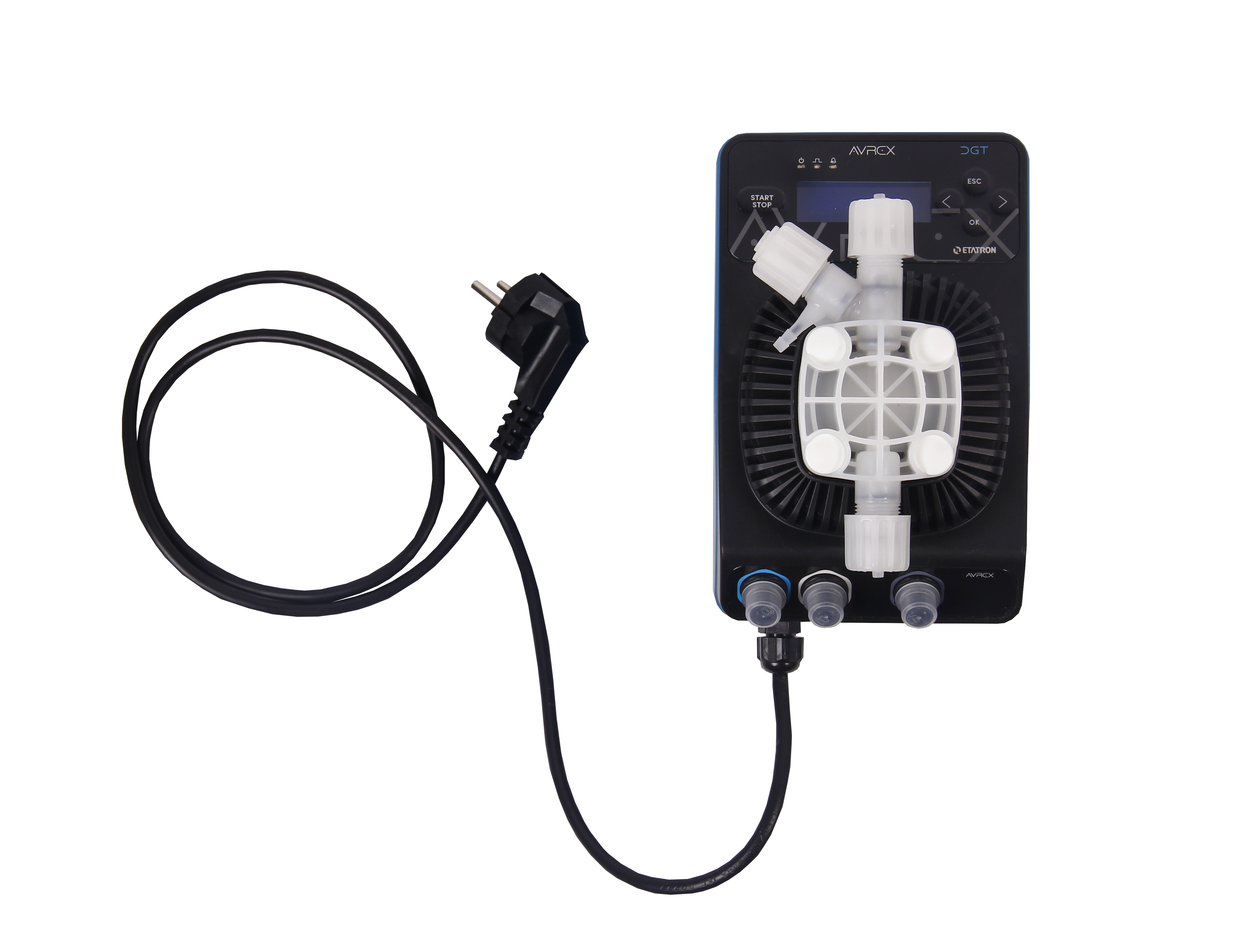

Dosing pump AUREX A MF 7-10 220/240V PVDF

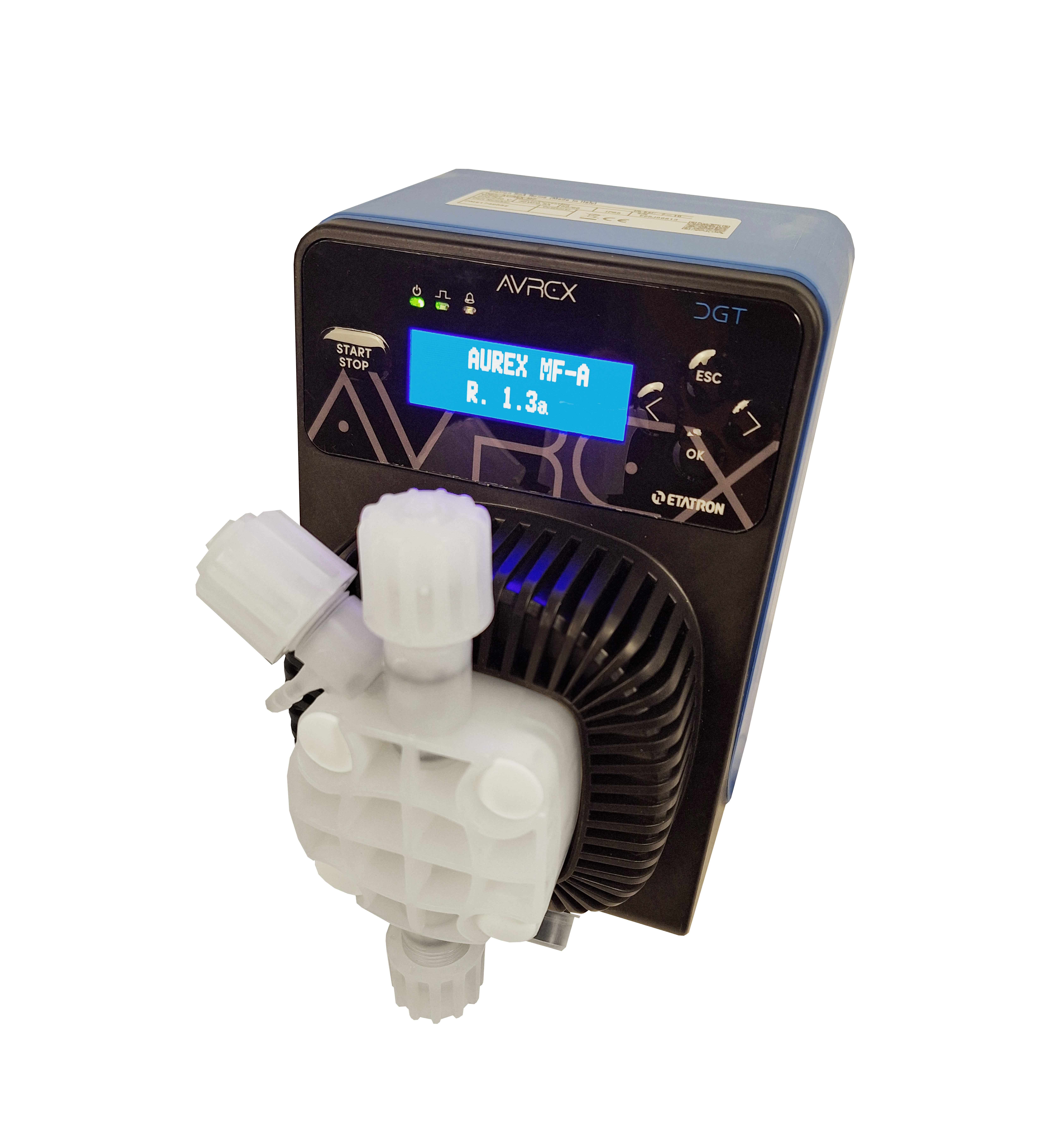

AUREX MF is a multifunction solenoid dosing pump with a microprocessor and display, enabling precise selection of injection pulses.

The maximum flow rate and operating pressure can be set by the user.

Main features:

• Provision for level probe (probe not included).
• Operating modes: proportional and ON/OFF; proportional dosing from counter: 1×n; 1×n (m); 1:n; ml×P; l×P; ml×m³; PPM; adjustable 4–20 mA control.
• Alarm relay output.
• Daily and weekly timer.
• Priming function.
• 4 languages: Italian, English, French, Spanish.
• Passcode protection.
• Acid-resistant housing (PP).
• Protection rating: IP65.
• Max. flow rate: 50 l/h; max. back pressure: 20 bar.

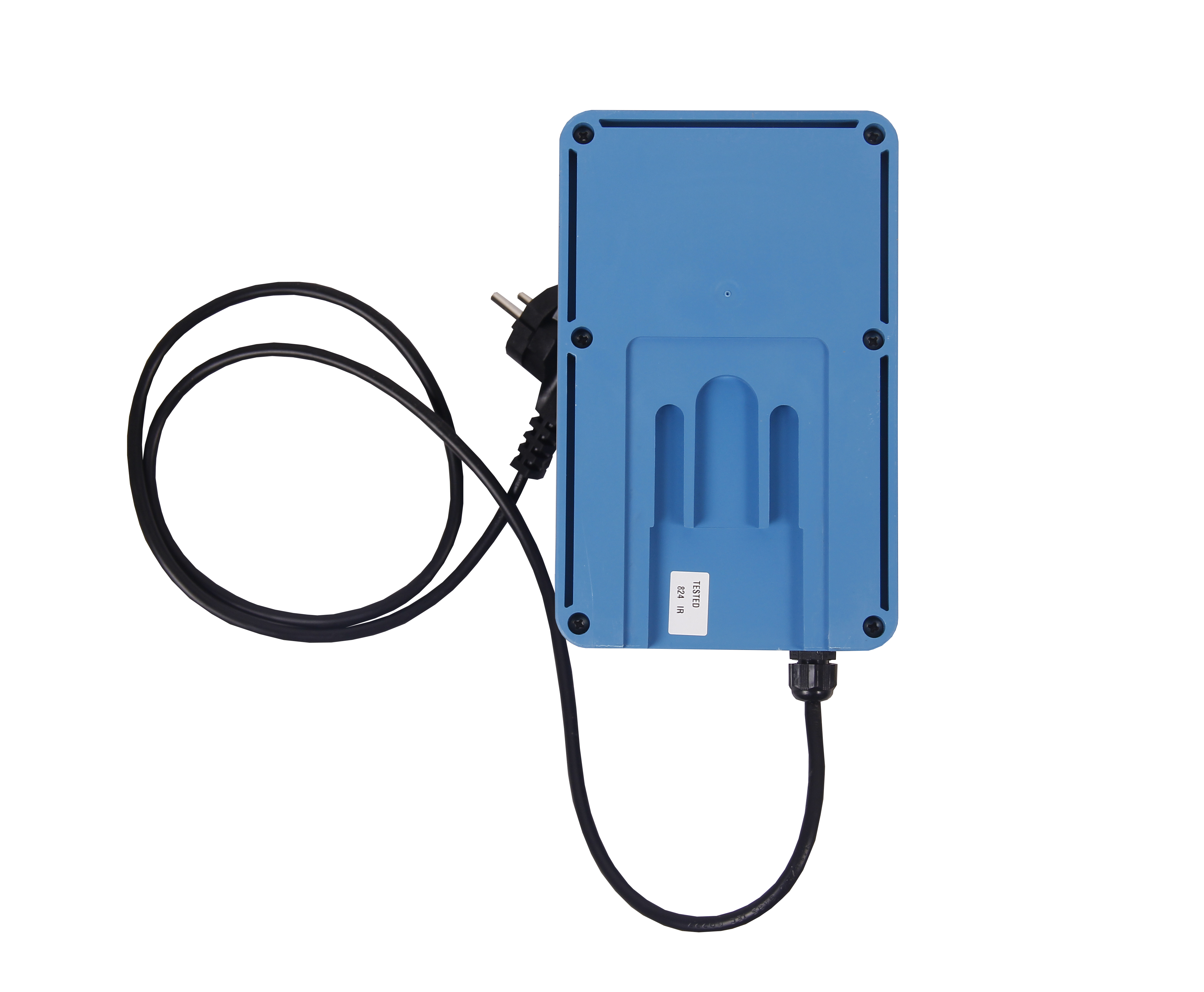

• Wall or floor mounting with bracket (not included).
• Configuration: PVDF head, PTFE diaphragm, FPM seals, ceramic ball valves*.
• Head with manual bleed: from 2 to 50 l/h.
• Standard power supply: 220–240 V.
• 3 different flow rates selectable by the user.
