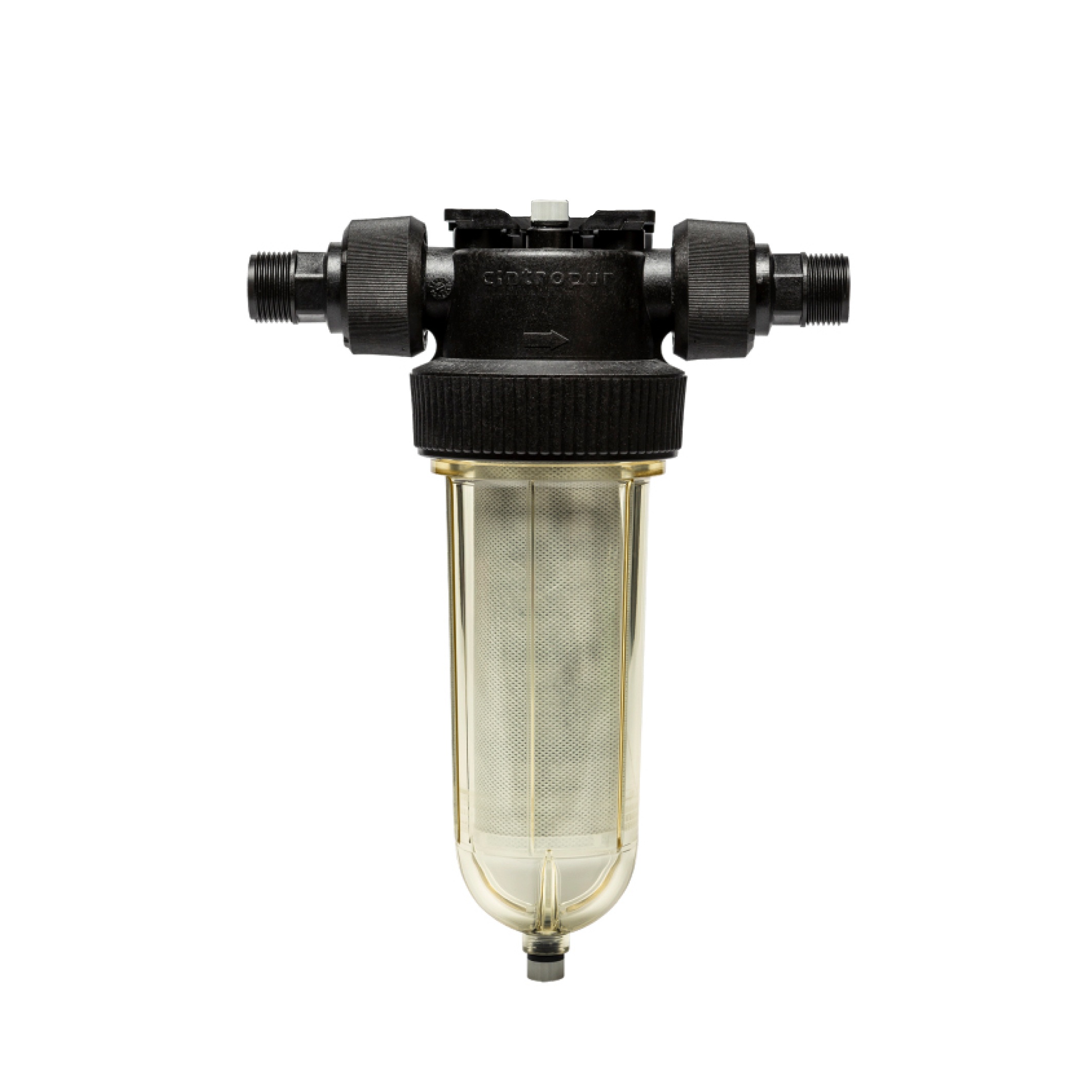

The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water. The residential range features 3 filters and is capable of serving flow rates from 0 up to 6.5 m³/h.

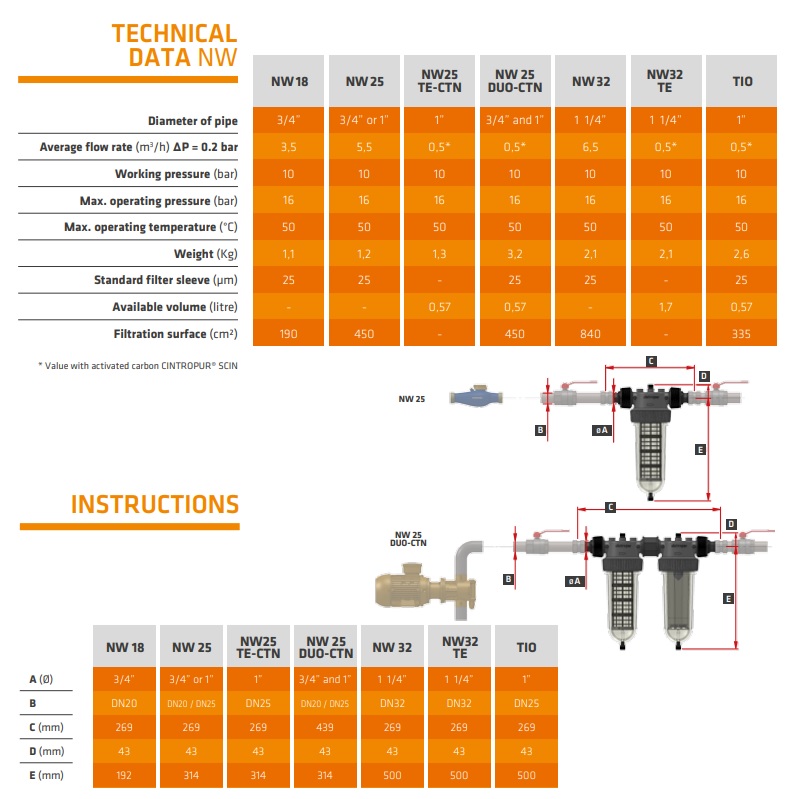

NW 18 : 3.5 m3/h (¾")
NW 25 : 5.5 m3/h (¾" + 1")
NW 32 : 6.5 m3/h (1¼")
Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.
double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
filtration practically without accumulation
low pressure drop
high and constant flow rate

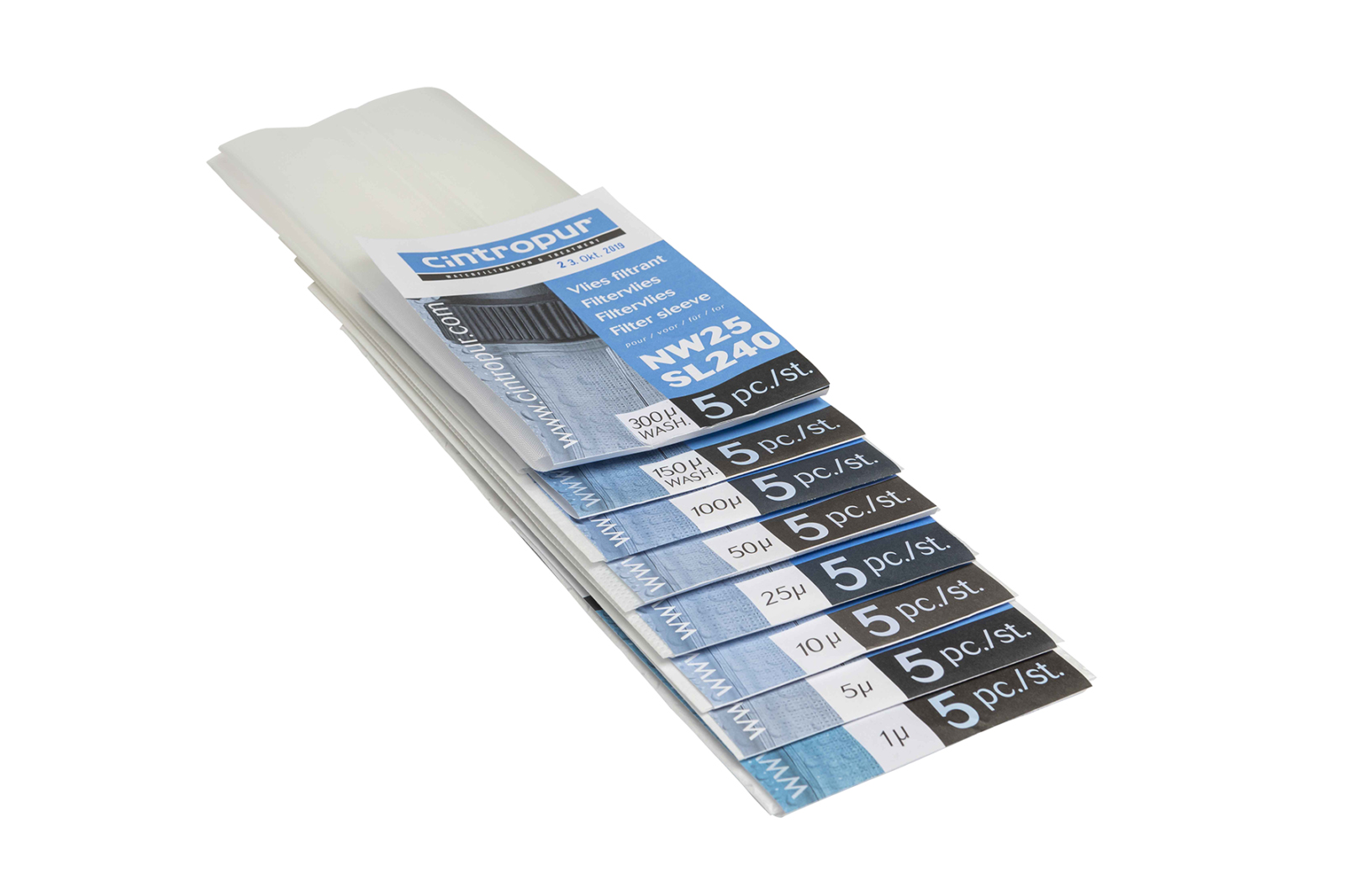

wide choice of filtering fineness ranging from 5 to 300 microns
sealing guaranteed thanks to the O-ring system
fast and easy rinsing thanks to the drain cock
long lifetime and uninterrupted spare parts supply
reduced need for maintenance
