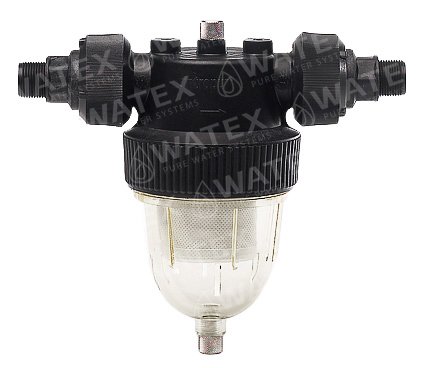

CINTROPUR NW18 water filter (3/4'')

Manufacturer: CINTROPUR
Product code: FWCCNW180
Combination does not exist
40.77
49.33

Water filter for domestic use. Connection ¾", flow rate of 3,5 m³/h.

The brand CINTROPUR offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water. The residential range features 3 filters and is capable of serving flow rates from 0 up to 6.5 m³/h.

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Main advantages:

  • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
  • filtration practically without accumulation
  • low pressure drop
  • high and constant flow rate

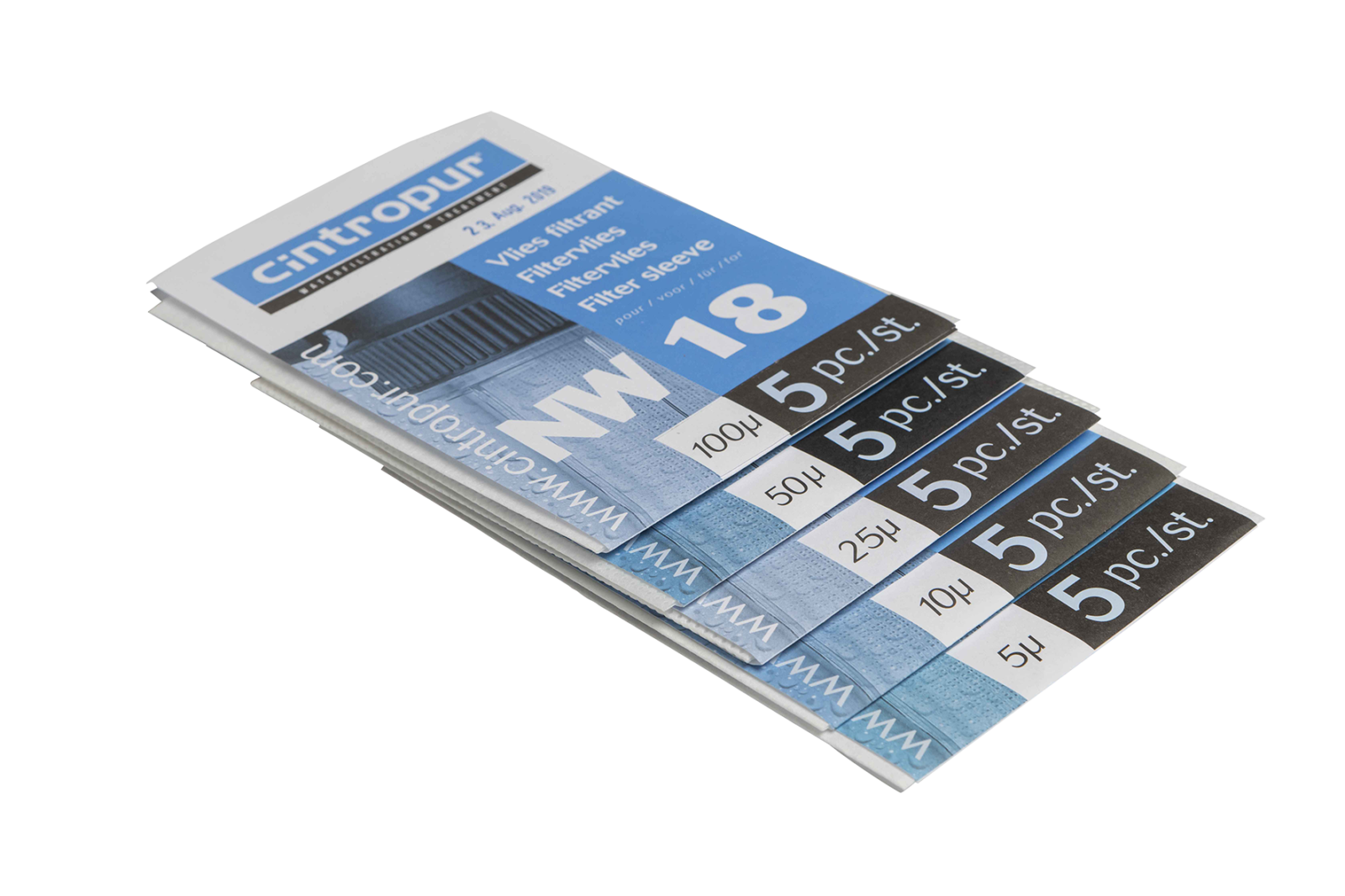

  • wide choice of filtering fineness ranging from 5 to 300 microns
  • sealing guaranteed thanks to the O-ring system
  • fast and easy rinsing thanks to the drain cock
  • long lifetime and uninterrupted spare parts supply
  • reduced need for maintenance
Show full description

Technical data

Connection diameter

1"

Average flow rate  (m3/st)

5,5

Maximum operating temperature (to C)

 50o

Weight (Kg)

1,2

Standard filter element fineness (µ)

25

Standard filter element fineness (cm2)

450

Filtration area (bar)

16



Width cm

Height cm

Length cm

Weight kg

16.00

16.00

26.00

2.00

Show full description

By clicking on the following links, you can view and download the following:

CINTROPUR_NW18_25_32-brochure

CINTROPUR_NW18_25_32_Instructions-for-ssembly-use-and-maintenance
